Evaporative Emissions System: Locations

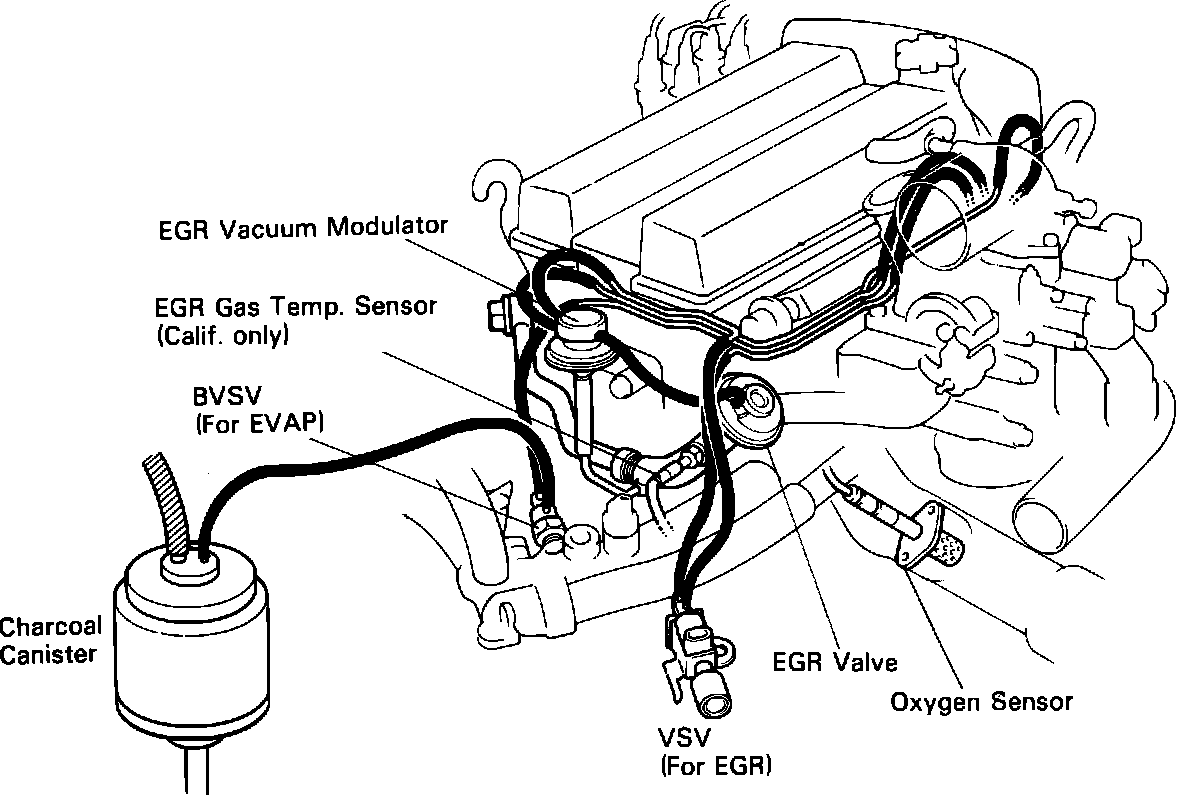

Fig. 4 Emission Components And Vacuum Hose Routing:

Bimetal Vacuum Switching Valve (BVSV): Rear of engine
Charcoal Canister: LH side of engine compartment
Fuel Tank Check Valve: In fuel filler cap
Purge Check Valve: In top of charcoal canister
Purge Port: Side of throttle valve housing
