Home >> Toyota >> 1989 >> MR2 L4-1587cc 1.6L DOHC SC (4A-GZE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Up Control Valve >> Diagrams >> Electrical Diagrams

Electrical Diagrams

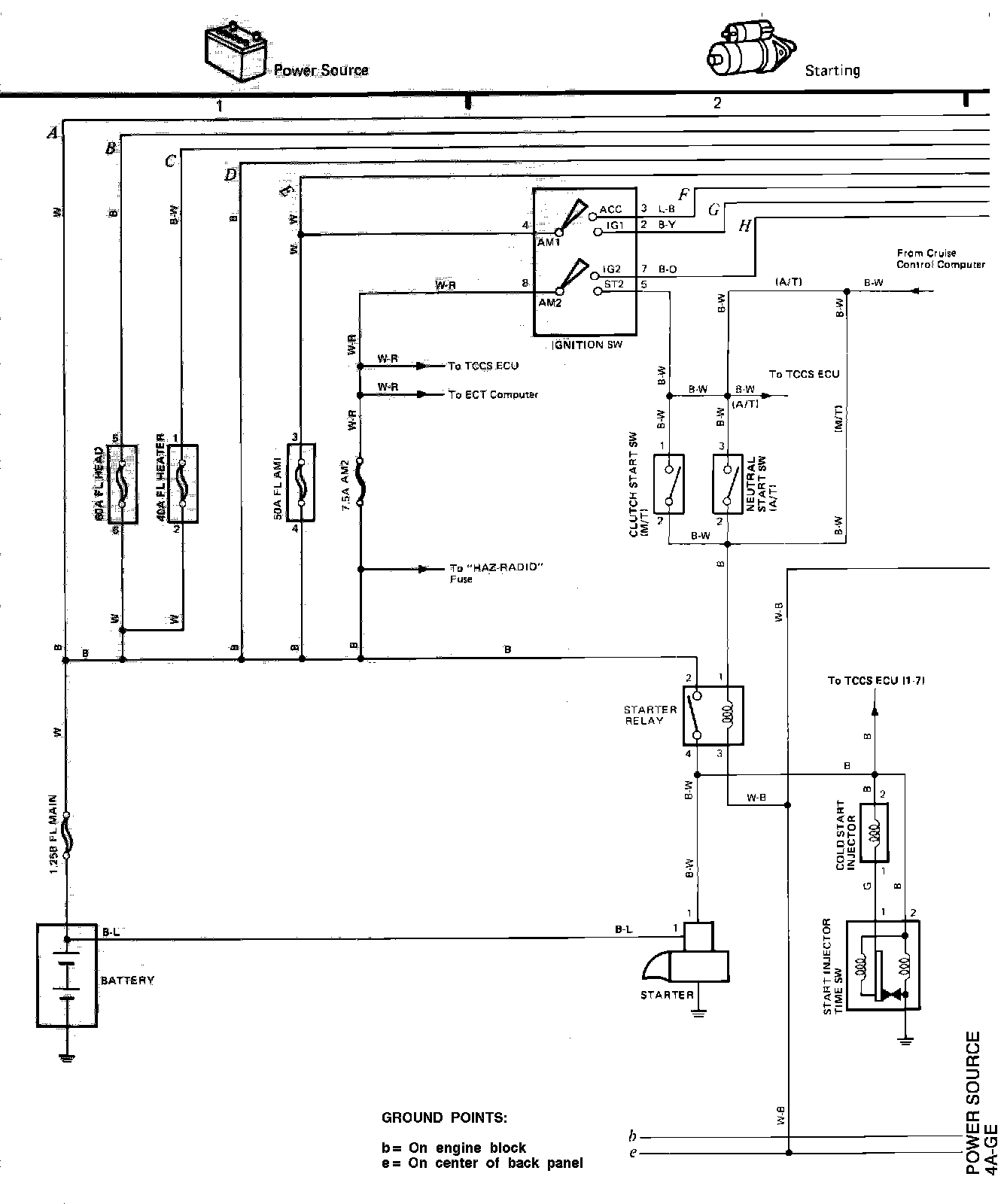

Power Source For 4A-GE Engine:



Power Source For 4A-GZE Engine:

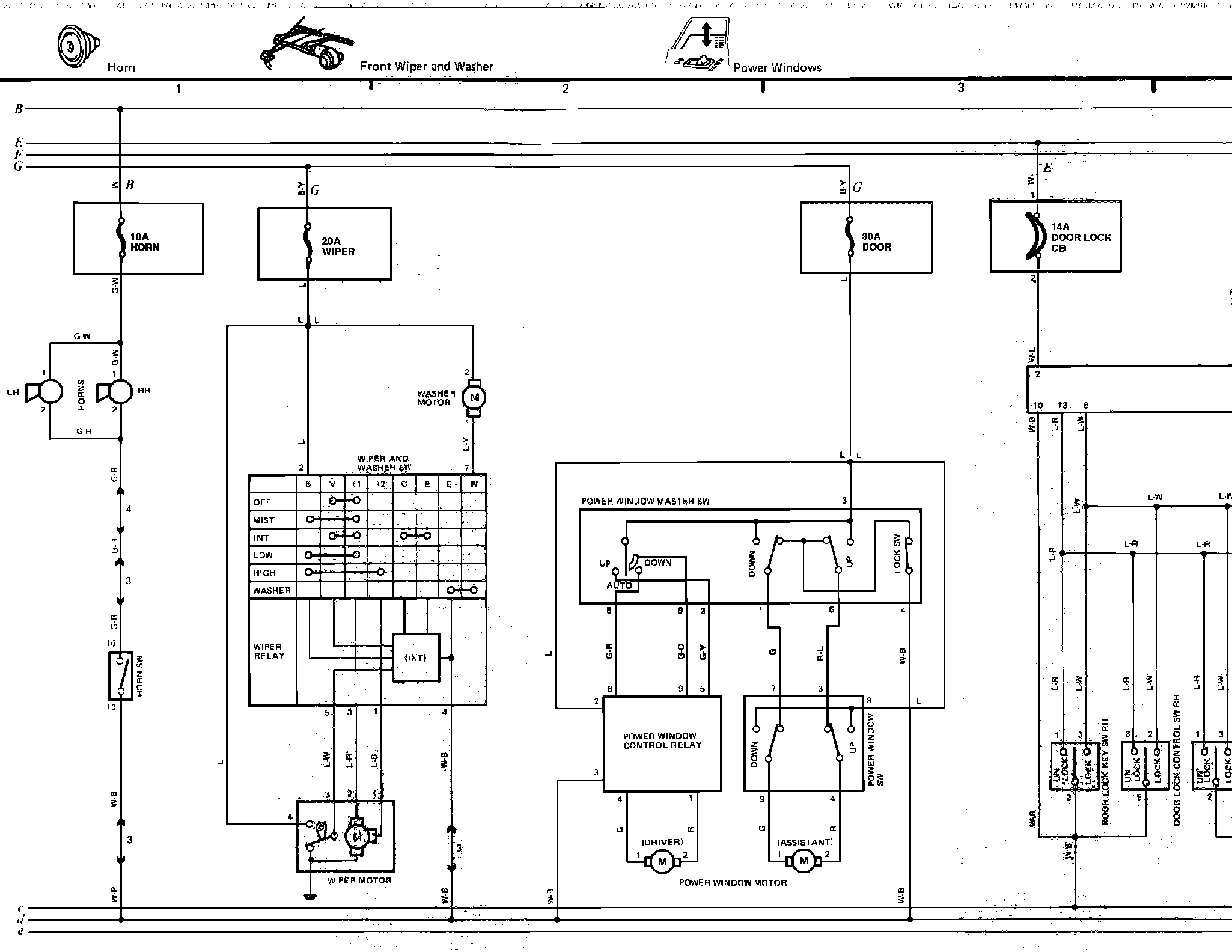

�°�]�Horn, Front Wiper/Washer, Power Windows, Power Door Locks, Cruise Control, Stop Lights And Seat Belt Warning Wiring Circuits:
