Electrical Diagrams

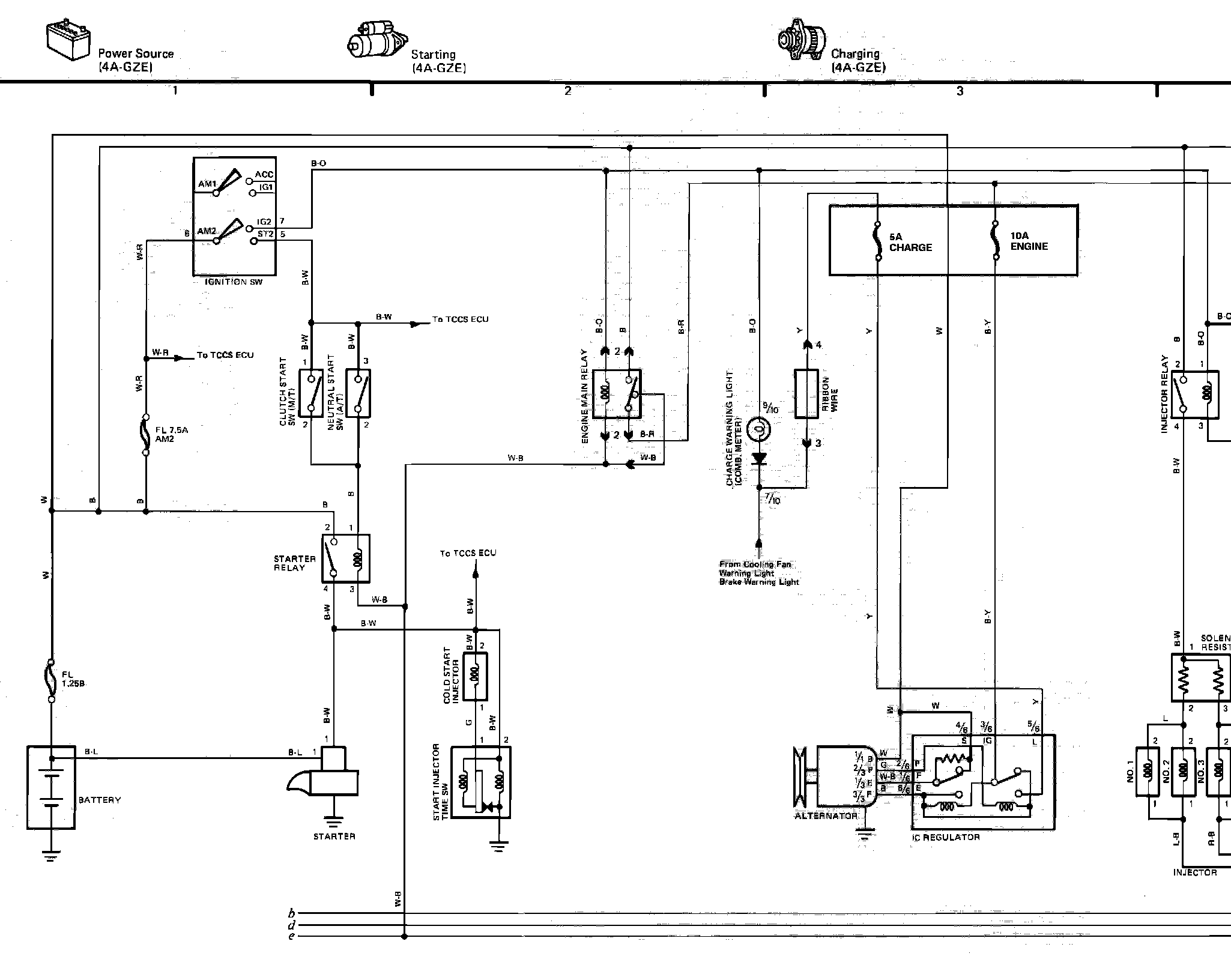

�o�Battery, Starting, Charging, Computer Control, Fuel Control And Ignition Wiring Circuits:
