Fuse Panel Details

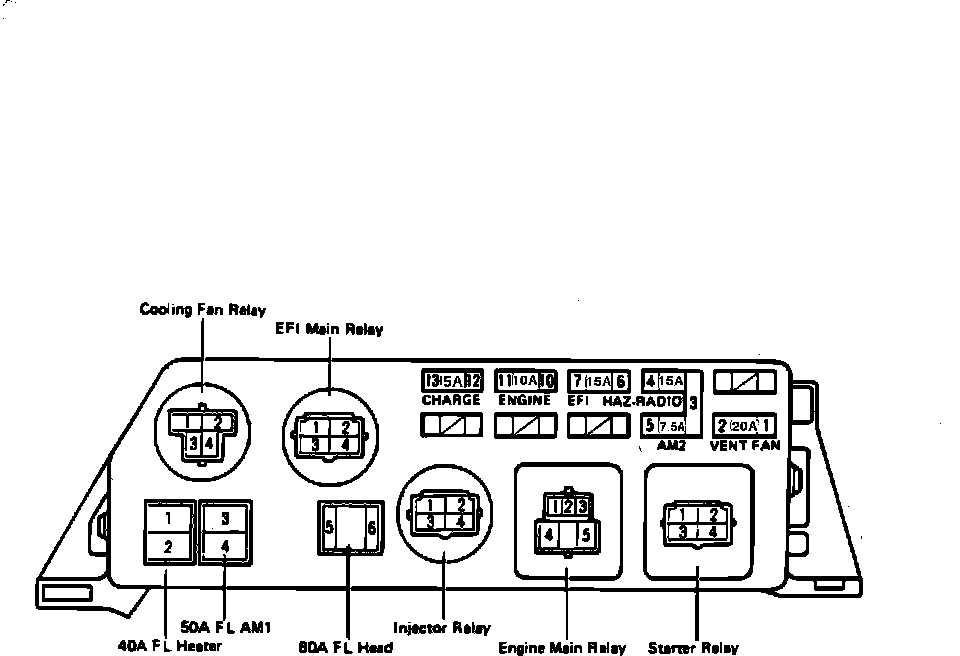

Fuse/Relay Panel #1:

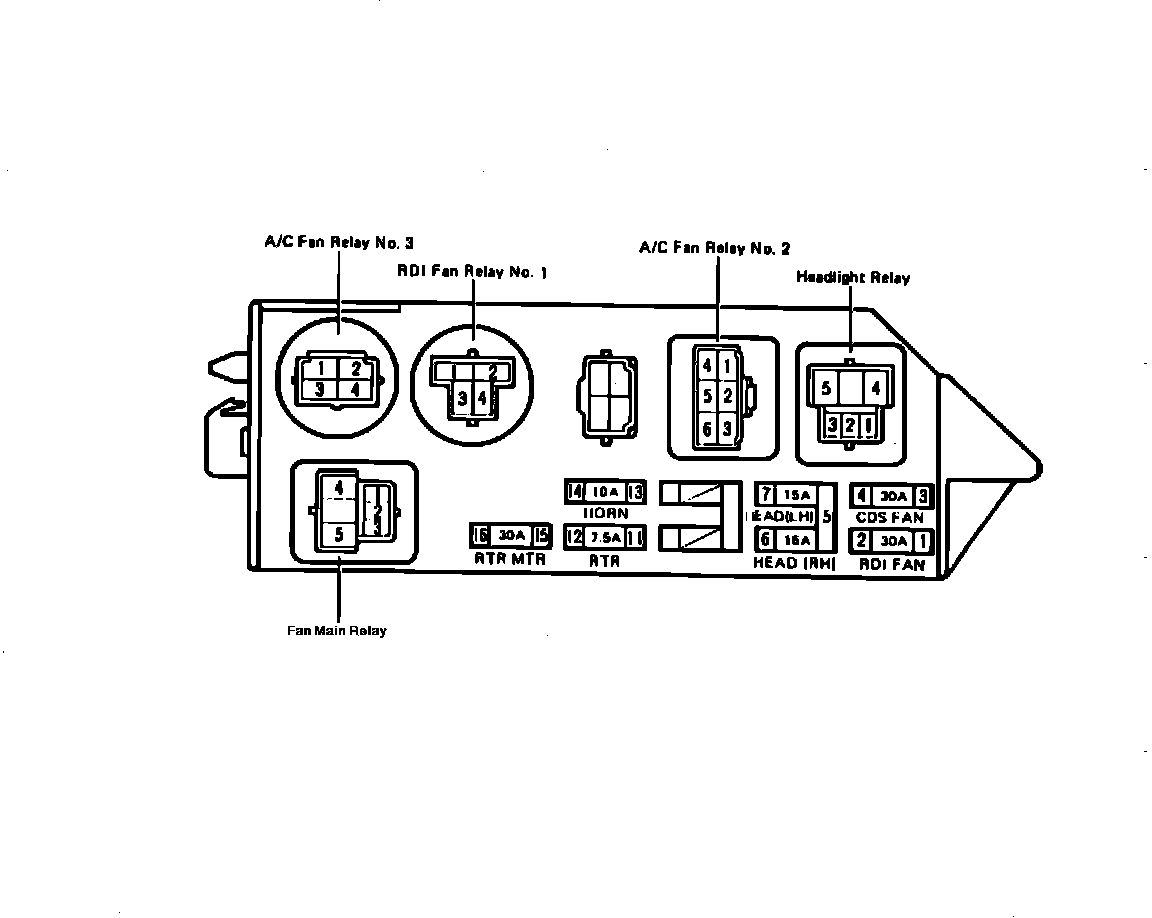

Fuse/Relay Panel #2:
Fuse/Relay Panel #4:
Fuse/Relay Panel #5:
