MR2 L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

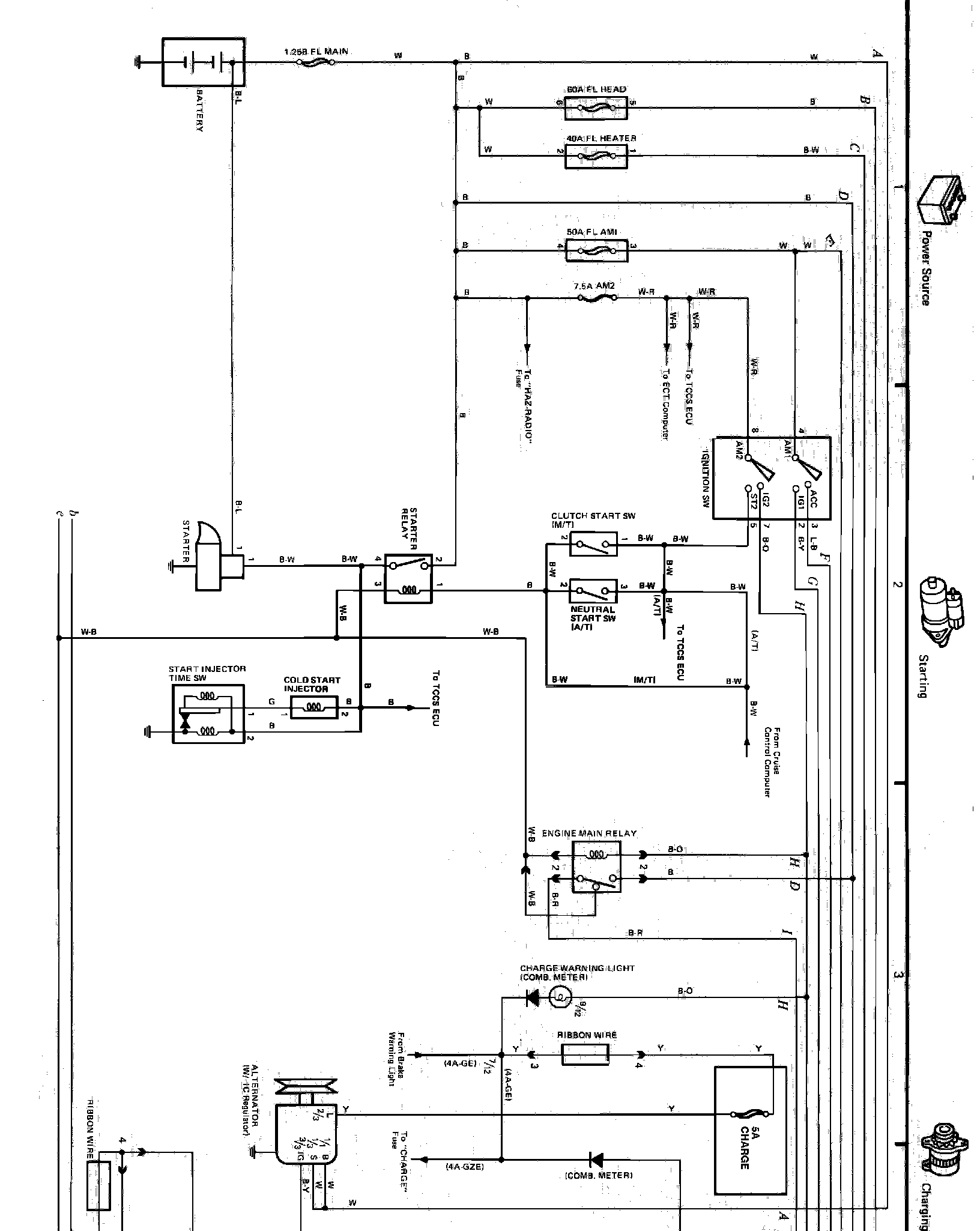

U :LBattery, Starting, Charging, Ignition, Engine Compartment Cooling Fan And Computer Control System Wiring Circuits:
