Solar Sensor Assembly (P/N 88625-22141)

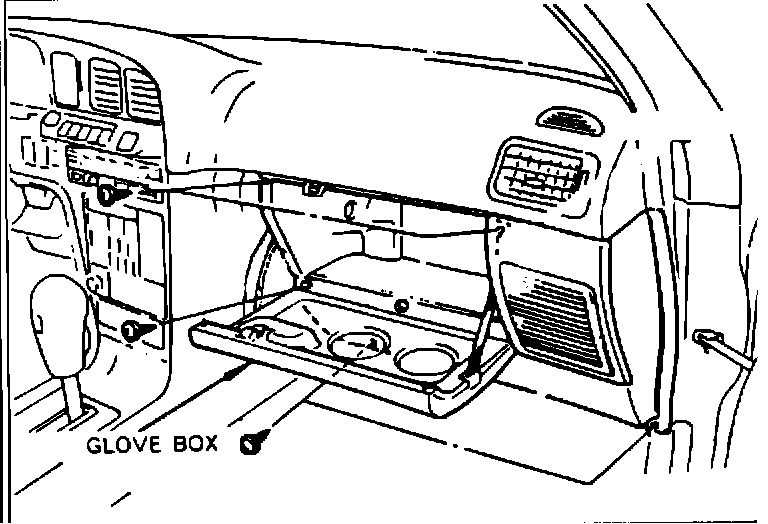

a) Remove the glove box assembly.

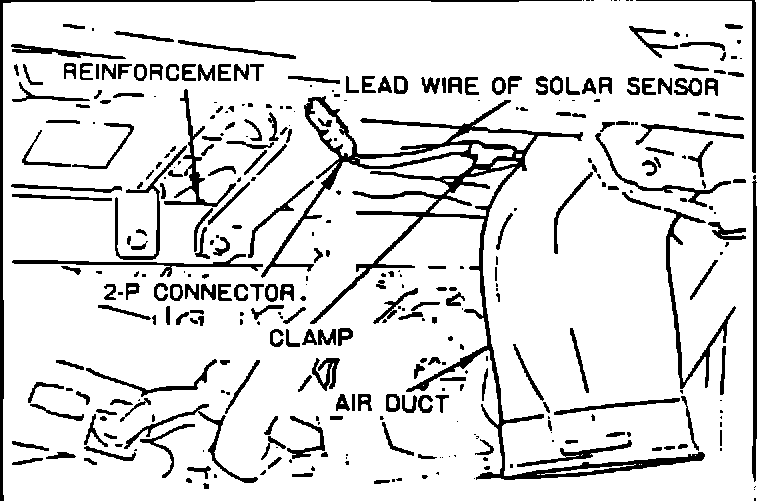

b) Disconnect the 2-pin connector of Solar Sensor from the original harness.

c) Remove the lead wire clamp of the Solar Sensor from the defroster duct.

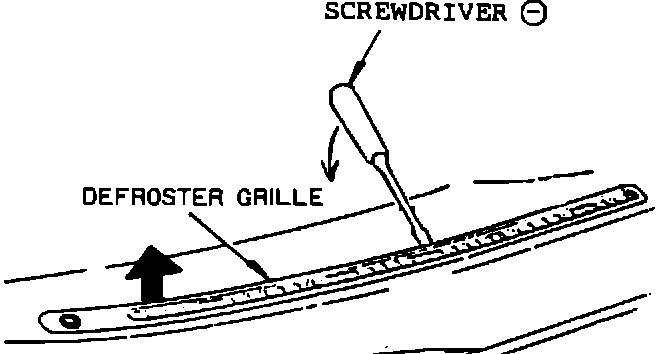

d) Remove the defroster grille using a screwdriver. Be careful not to crack the grille assembly.

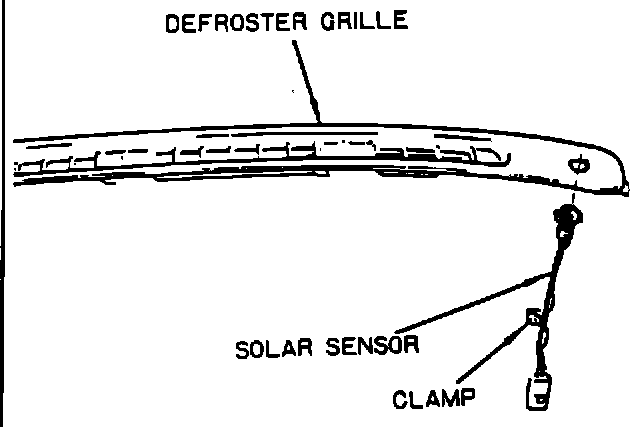

e) Remove the original Solar Sensor.

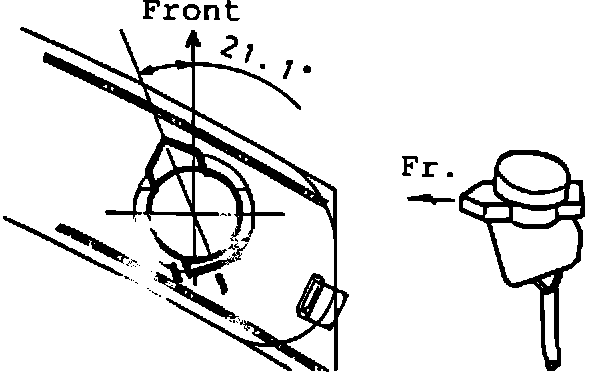

f) Install the new Solar Sensor into the defroster grille. Make sure the arrow of sensor is pointing towards the front of vehicle (as shown below).

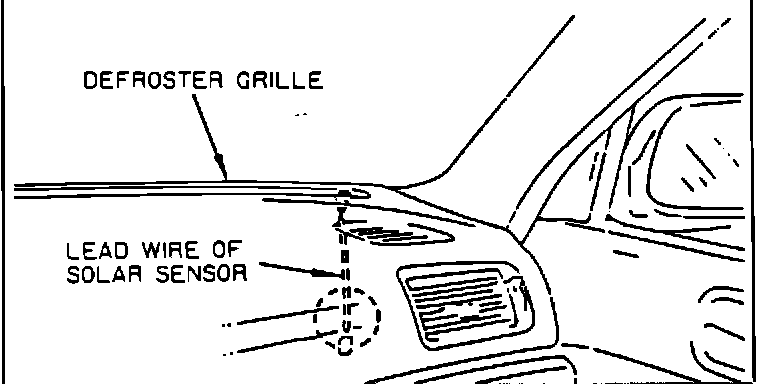

g) Pass the lead wire of Solar Sensor through the original access hole, and reinstall the defroster grille.



h) Route and connect the 2-pin connector of Solar Sensor to the original harness.

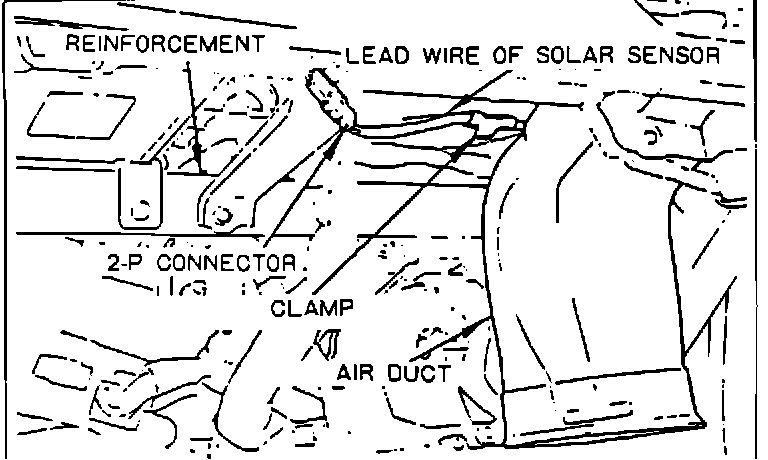

i) Fasten the lead wire of Solar Sensor to the underside of the defroster duct with the clamp provided on the harness.
