Ambient Sensor Installation (P/N 88625-22200)

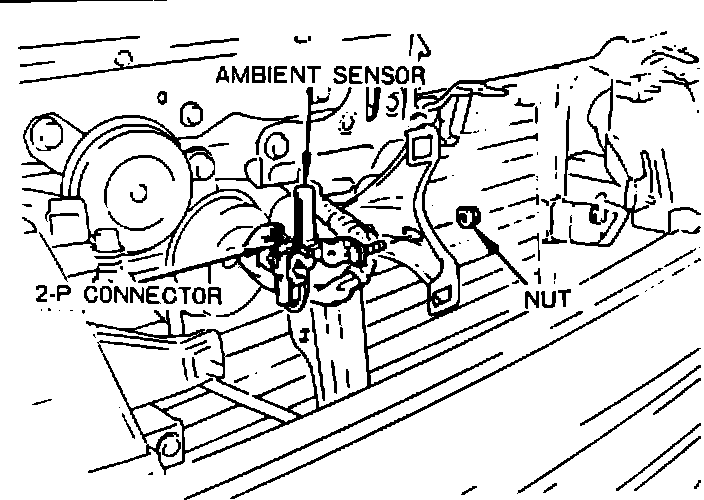

a) Disconnect the 2-pin connector and remove the original ambient sensor from the center brace.

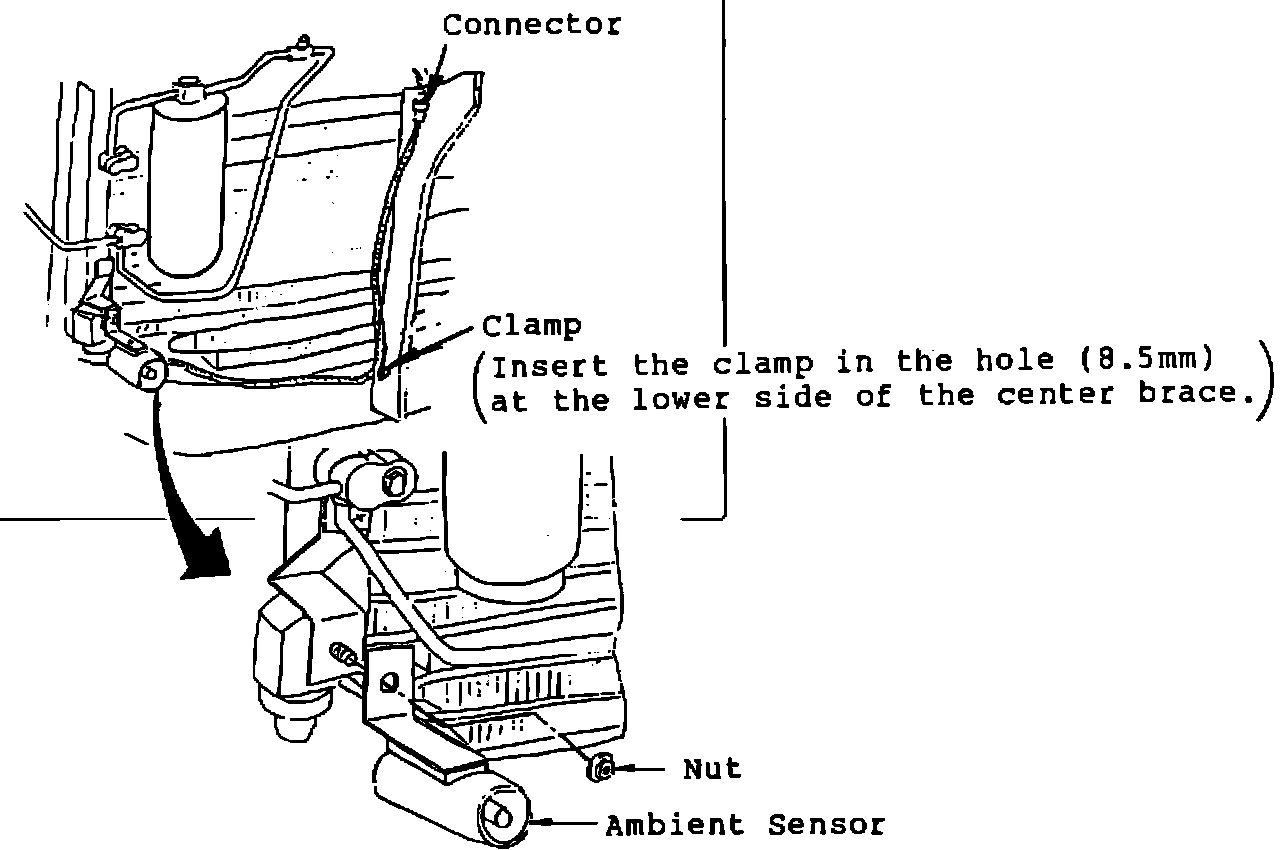

b) Install the new Ambient Sensor as shown on the left without fastening nut.

c) Insert the clamp in the hole (8.5 mm) at the lower side of the center brace.

d) Install new Ambient Sensor to the lower stud of condenser and fasten with original nut.
