Home
>>
Toyota
>>
1989
>>
Cressida L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

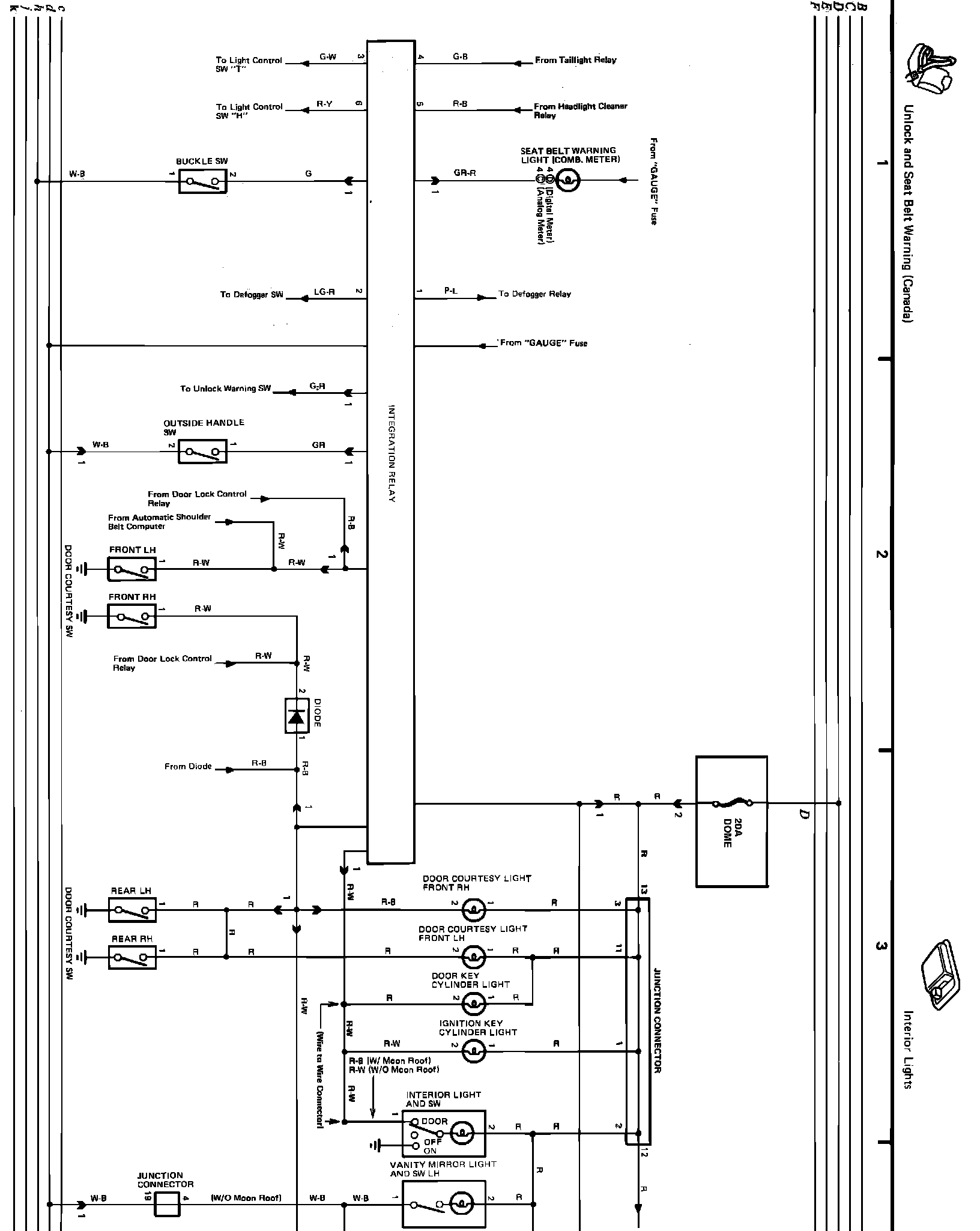

����Interior Lights, Electronic Transmission Control, Automatic Transmission Indicator And Back-Up Lights Wiring Circuit:

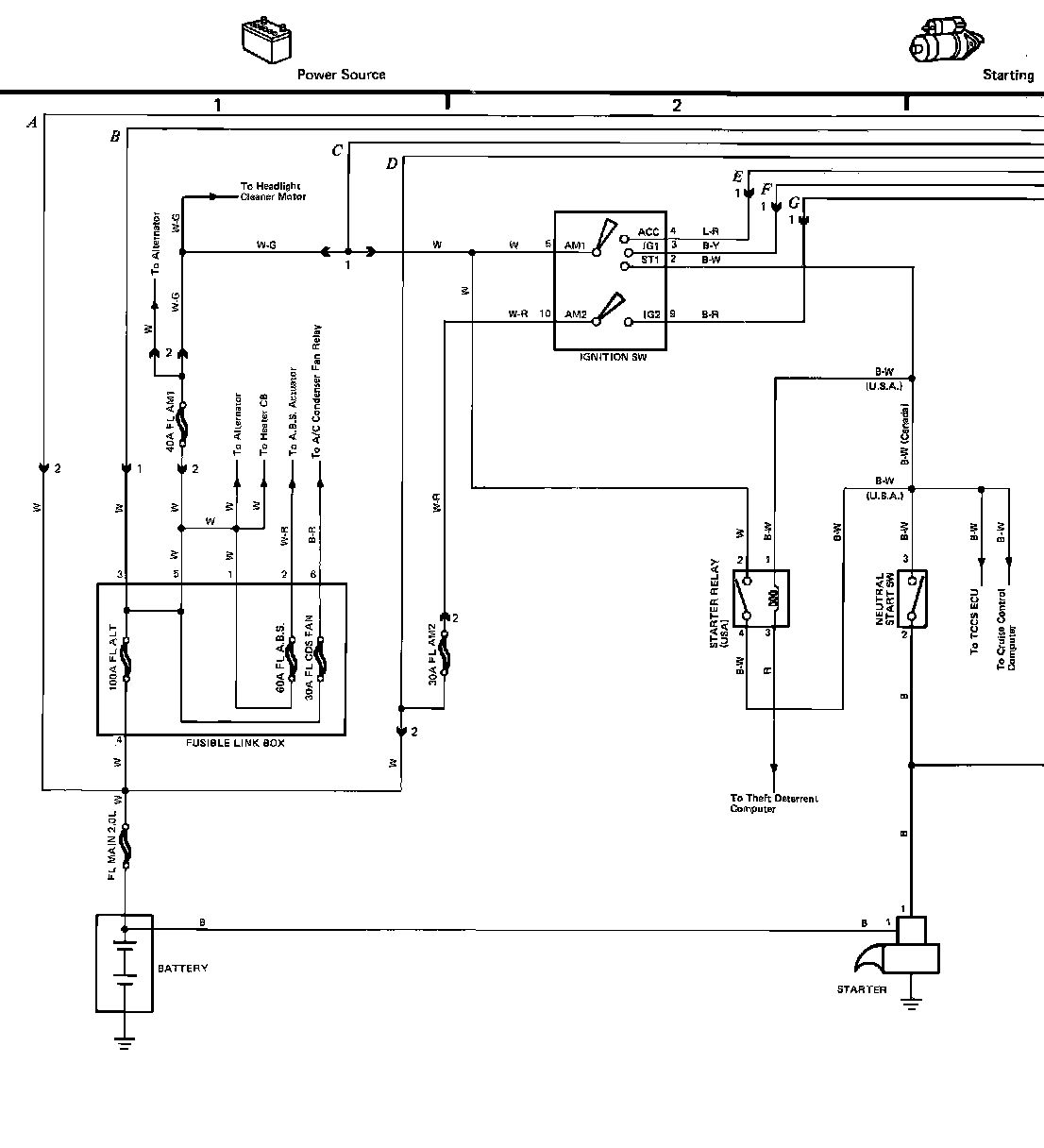

Power Source:
