Exhaust Gas Recirculation: Locations

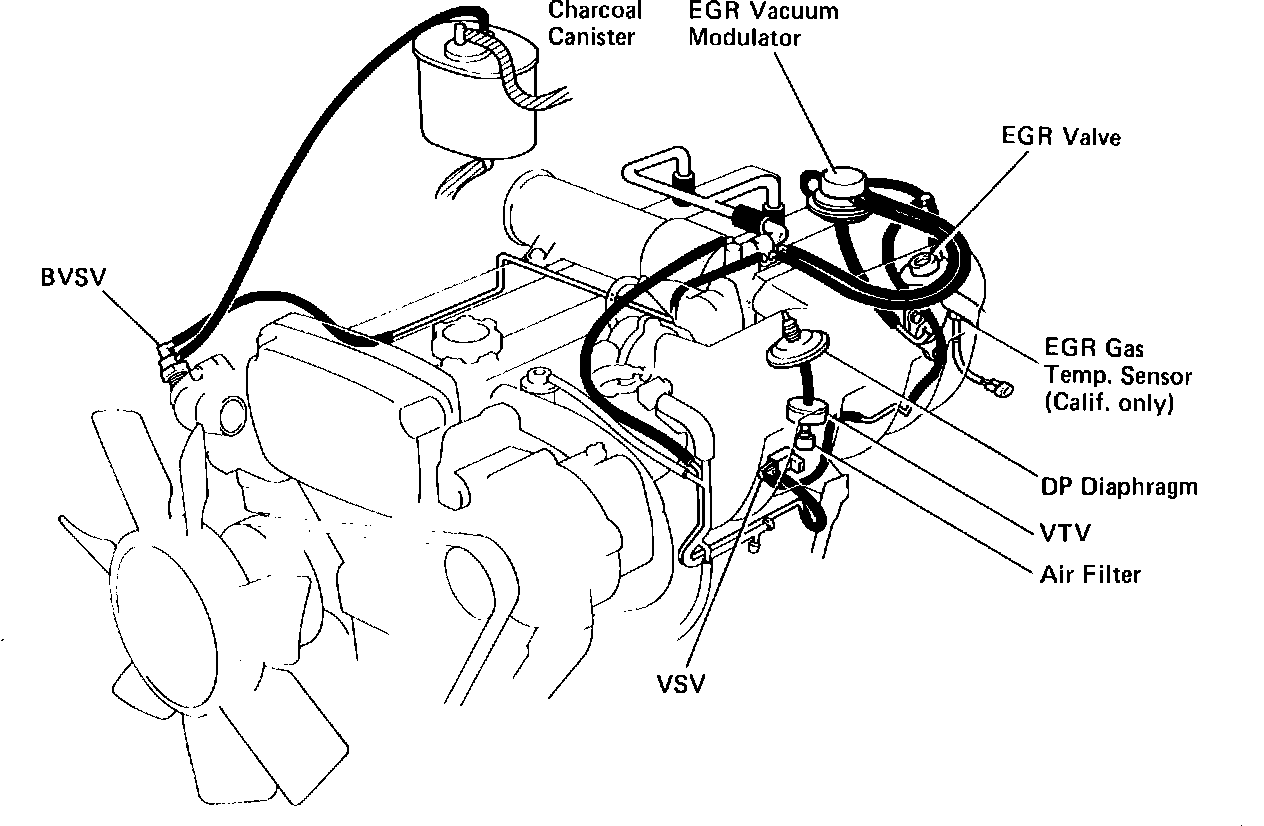

Fig. 2 Vacuum Hose Routing And Component Location:

EGR Gas Temperature Sensor: Rear RH side of engine, near EGR valve
EGR Valve: Top, rear of engine
Vacuum Modulator: Top, center rear of engine
Vacuum Switching Valve: Lower LH side of engine, under intake manifold
