Home
>>
Toyota
>>
1989
>>
Cressida L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

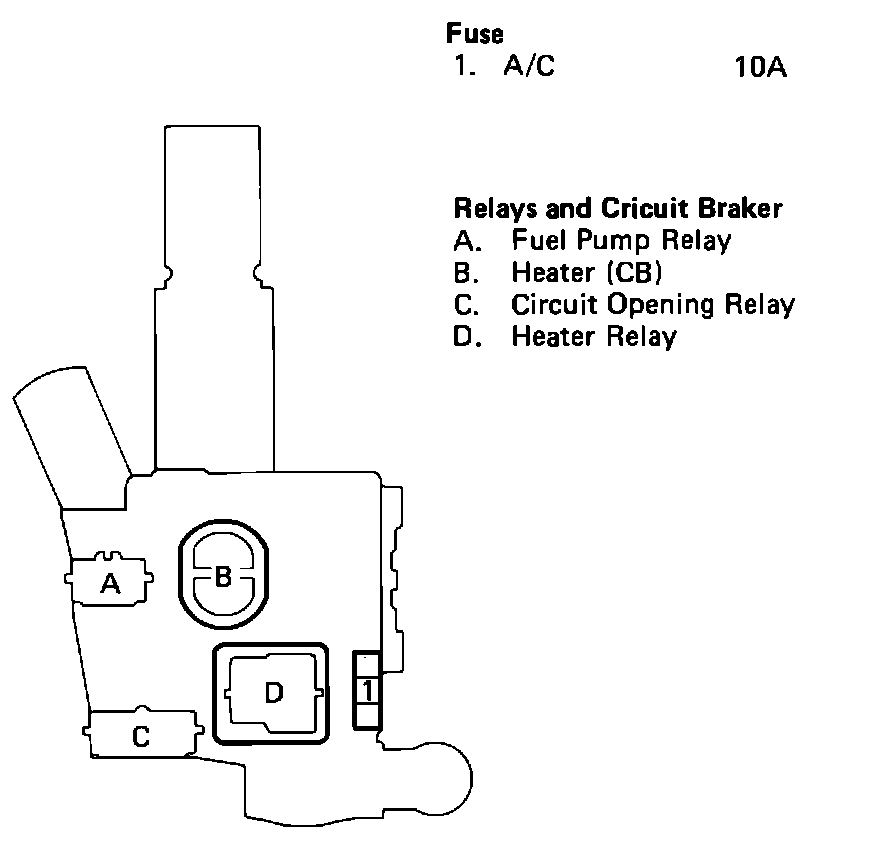

Fuse/Relay Panel #1A:
Fuse/Relay Panel #1B:

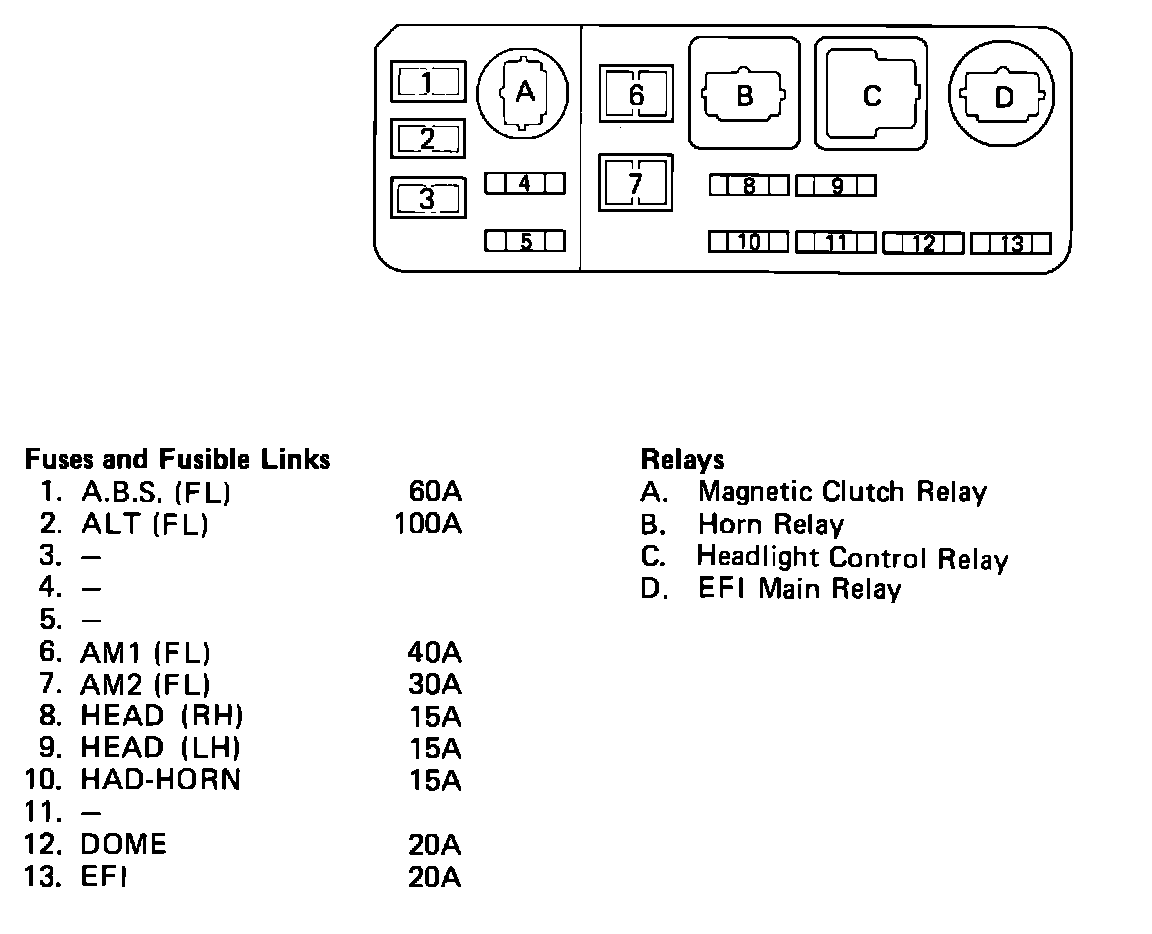

Fuse/Relay Panel #2:
Fuse/Relay Panel #4:
