Hot Idle Compensator (Non Comp. Controlled): Locations

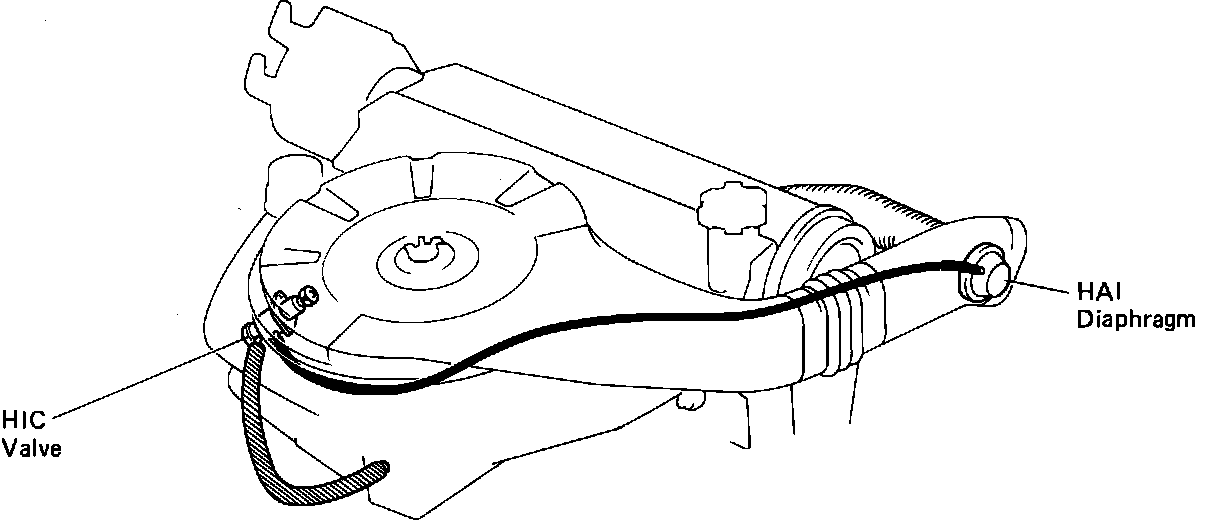

Fig. 79 Hot Air Intake System:

Hot Air Intake (HAI) Diaphragm: On air cleaner air inlet pipe
Hot Idle Compensator (HIC) Valve: Rear, lower side of air cleaner housing
