Exhaust Gas Recirculation: Locations

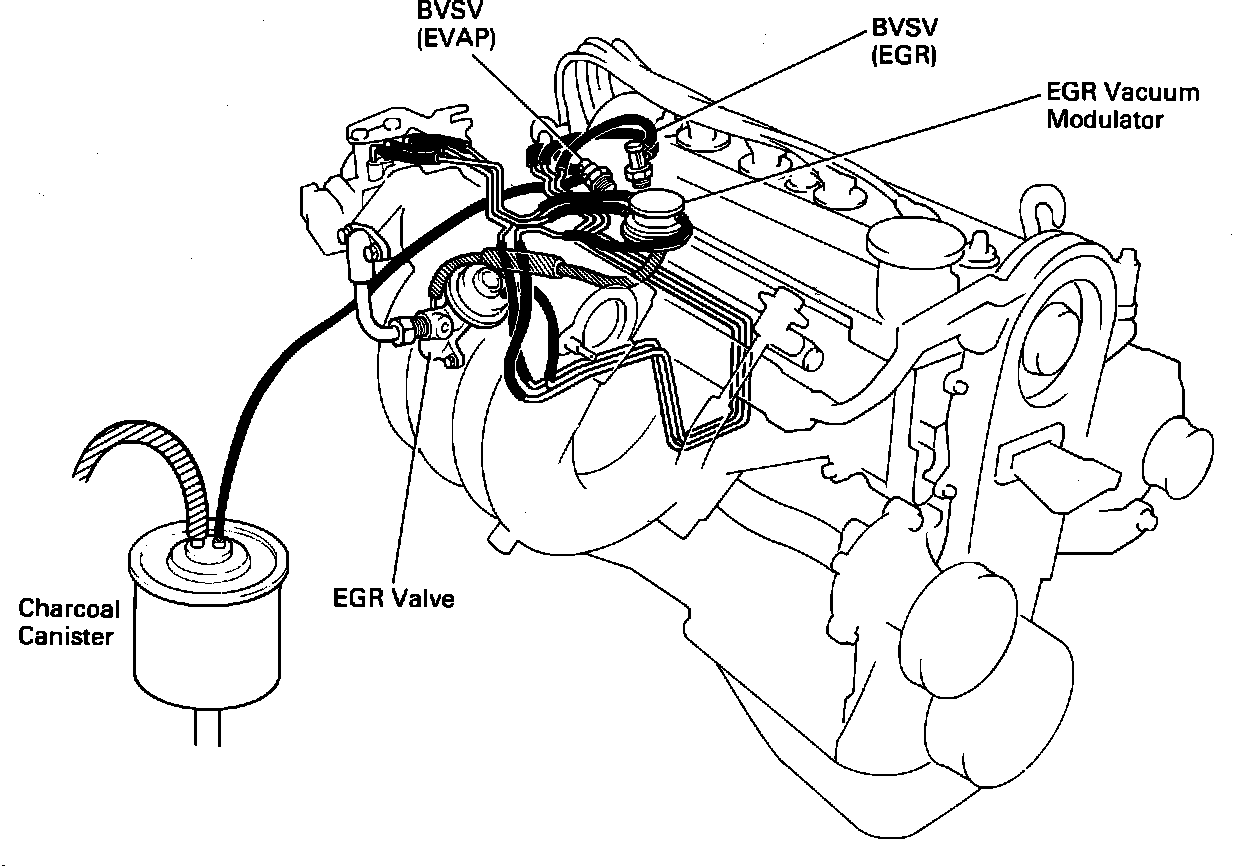

Fig. 139 Emission Components And Vacuum Hose Routing:

Bimetal Vacuum Switching Valve (BVSV): Top, rear of engine
EGR Valve: RH side of engine
Vacuum Modulator: Rear, RH side of engine
