Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

1. Ensure that all accessories are turned OFF.

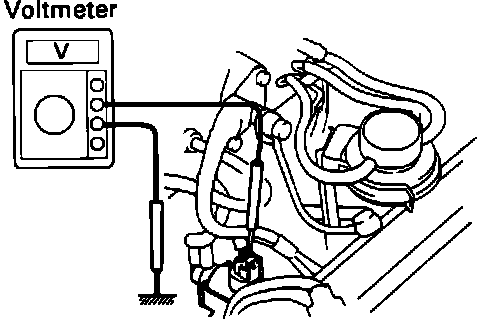

2. Using a voltmeter, check that the meter indicates battery voltage during cranking and for ten seconds after starting.

Checking Voltage To ACV:

3. Disconnect the vacuum hoses to the ACV and blow air into pipe E. Ensure that NO air flows through pipe F.

Testing ACV Operation - Current Removed:

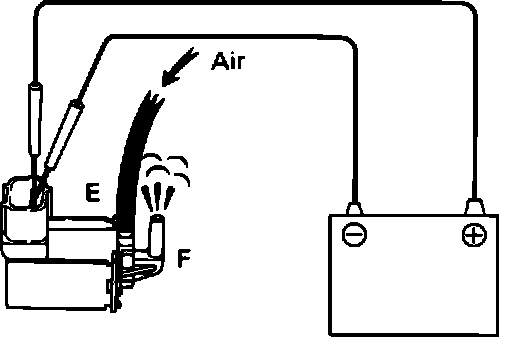

4. Disconnect the electrical connector to the ACV and apply battery current to the terminals.
5. Check that air does flow through pipe E to pipe F.

Testing ACV Operation - Current Applied:

6. If a problem is found, replace the ACV.
7. Reconnect vacuum lines and connector to the ACV.
