Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Corolla Sedan L4-1587cc 1.6L DOHC (4A-F)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Overdrive
Overdrive
PWj�Instrument Panel, Wiper/Washer, Back-Up Lights, Overdrive And Stop Light Wiring Circuits:

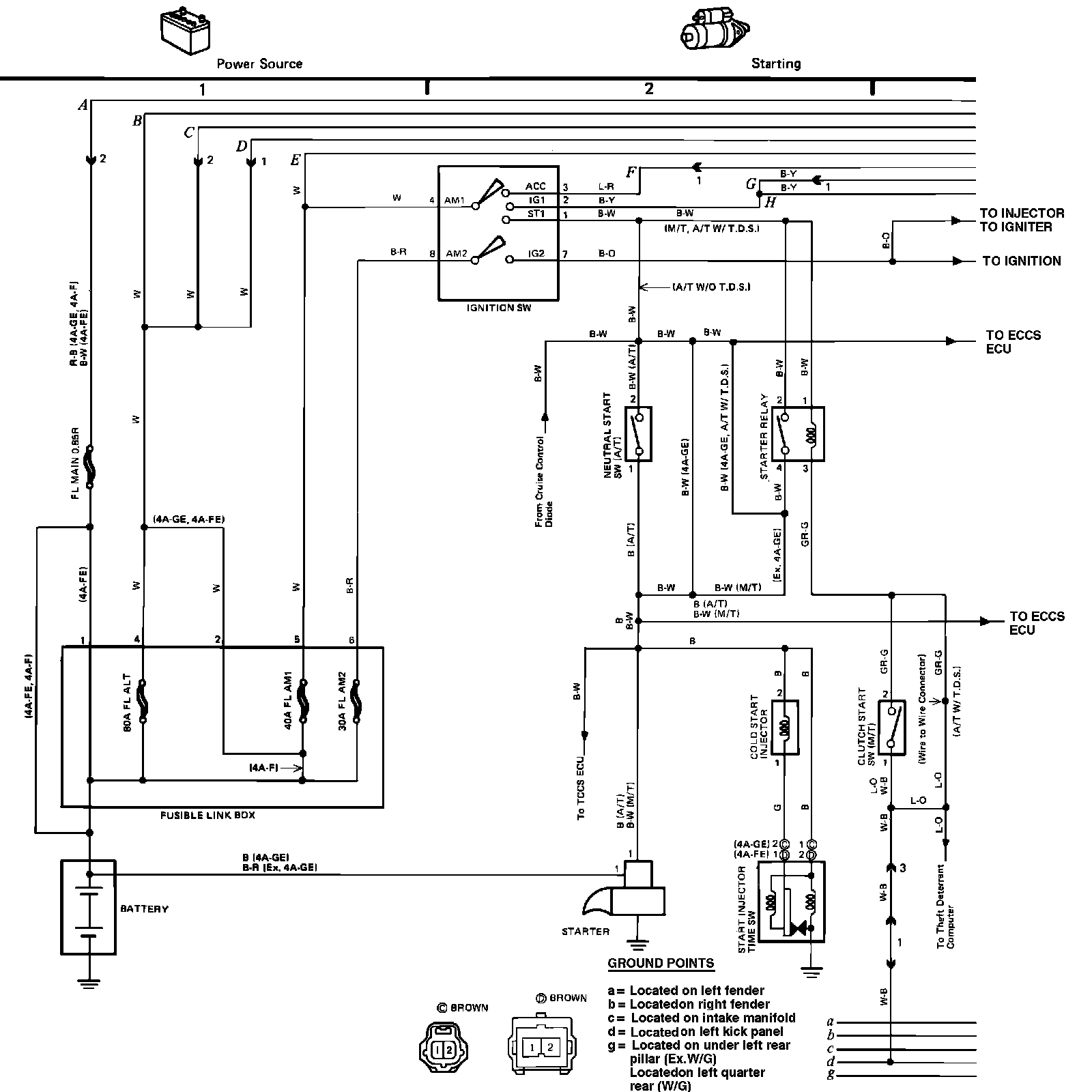

Power Source:
