Evaporative Emissions System: Locations

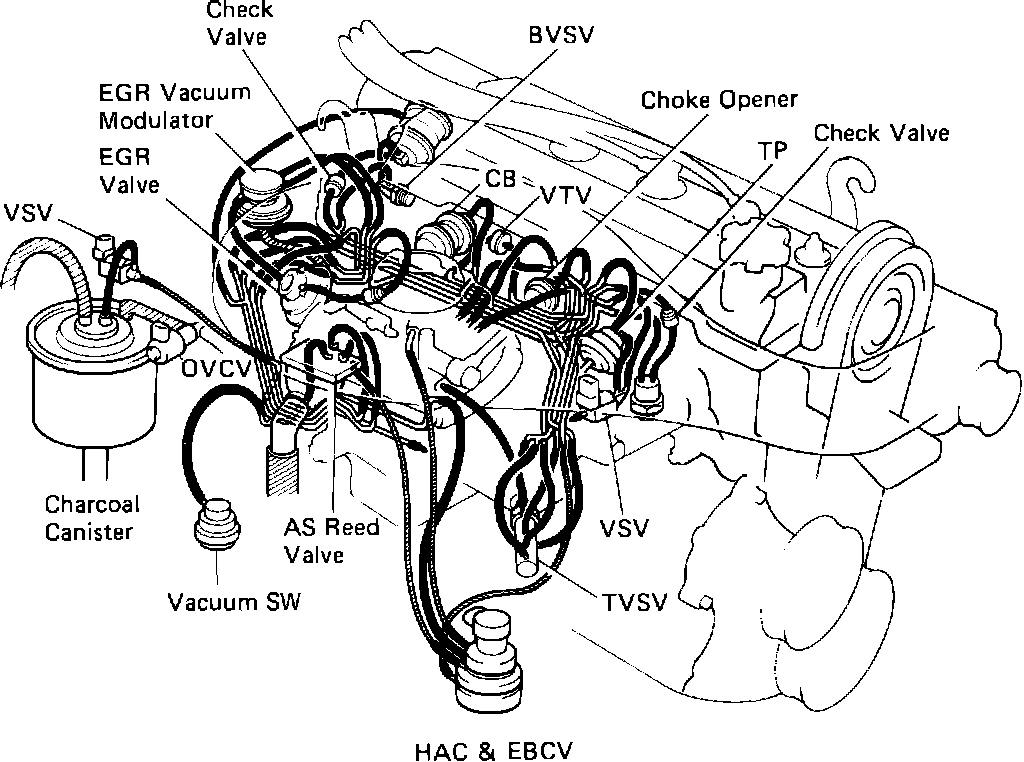

Fig. 2 Emission Components And Vacuum Hose Routing:

Charcoal Canister: Rear, LH side of engine compartment
Fuel Tank Check Valve: In fuel filler cap
Outer Vent Control Valve (OVCV): Rear, RH side of engine
Purge Check Valve: In top of charcoal canister
Purge Port: In base of carburetor
Temperature Switch: In intake manifold
Throttle Position Switch: On side of carburetor linkage
Vacuum Switching Valve (VSV): Rear, RH side of engine
