4A-F Engine (Carbureted)
>>
"Check Engine" Light Circuit Test
"Check Engine" Light Circuit Test

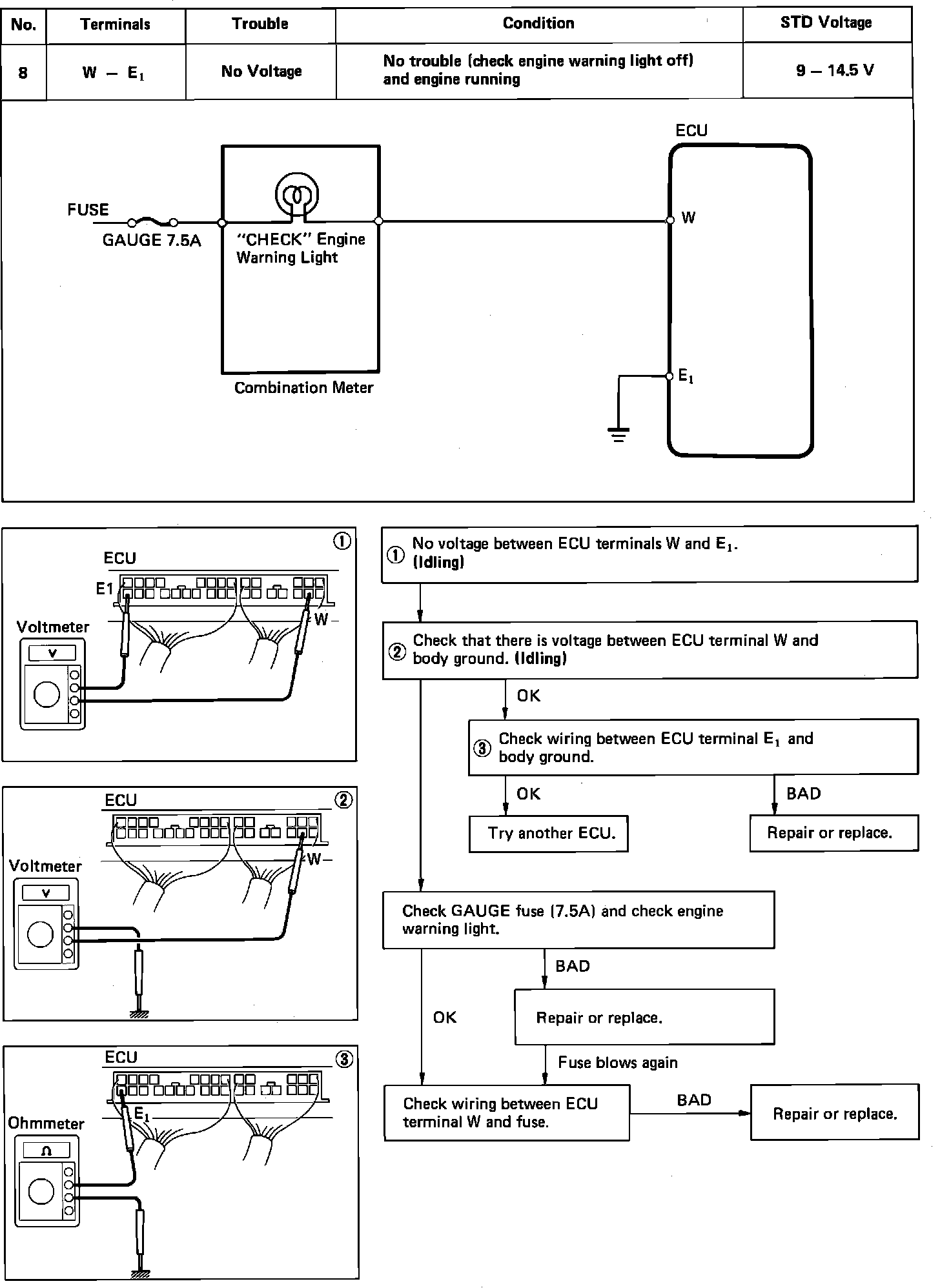

"Check Engine" Warning Light Circuit Test:
