Home
>>
Toyota
>>
1989
>>
Corolla Sedan L4-1587cc 1.6L DOHC (4A-F)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Power and Ground Test
Power and Ground Test

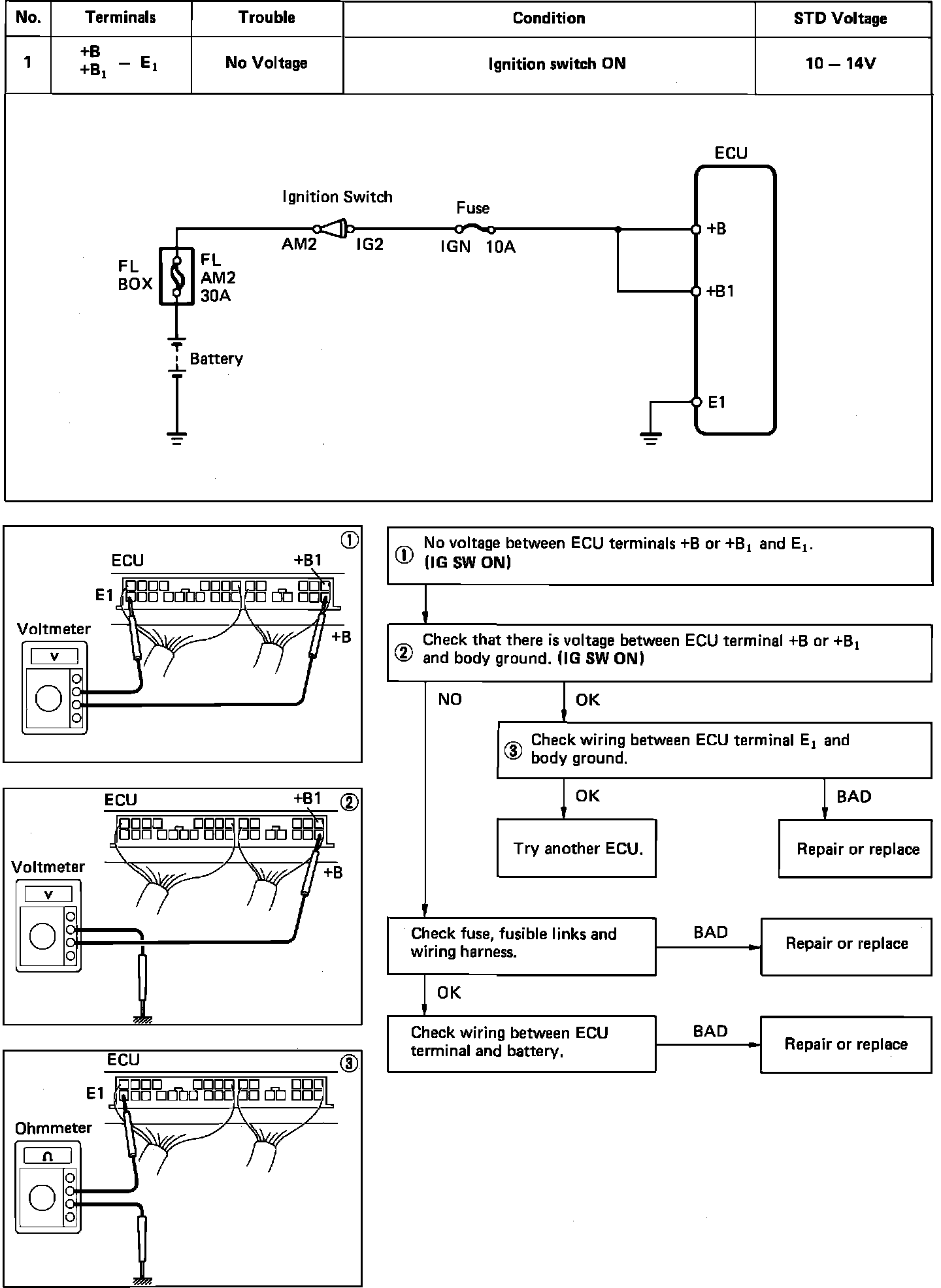

Ignition Switch Circuit Test:
