Component Locations

Electronic Control Unit (ECU)

Behind Center Console:

The ECU is located at center beneath the dash.

Diagnostic Check Connector
The diagnostic check connector is located on the left side of the engine compartment adjacent to the strut tower.

Electronic Air Bleed Control Valve (EBCB)

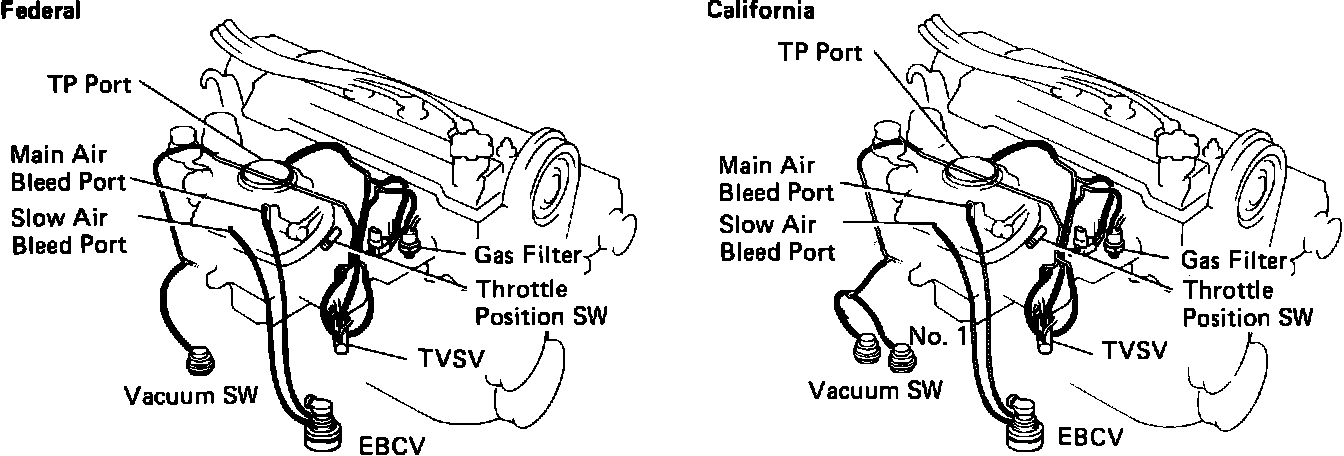

Fig. 59 Feedback Carburetor System:

The EBCB is located in the engine compartment on the right front inner fender panel.

Oxygen Sensor
The oxygen sensor is located on the left side of the engine in the exhaust manifold.

Fusible Links

Location Of Fuses And Fusible Links:

Fusible links are located in an engine compartment fuse block attached to the positive battery cable.

Fuses And Relays
The fuse/relay block is located behind the left kick panel under the dash.
