Electrical Diagrams

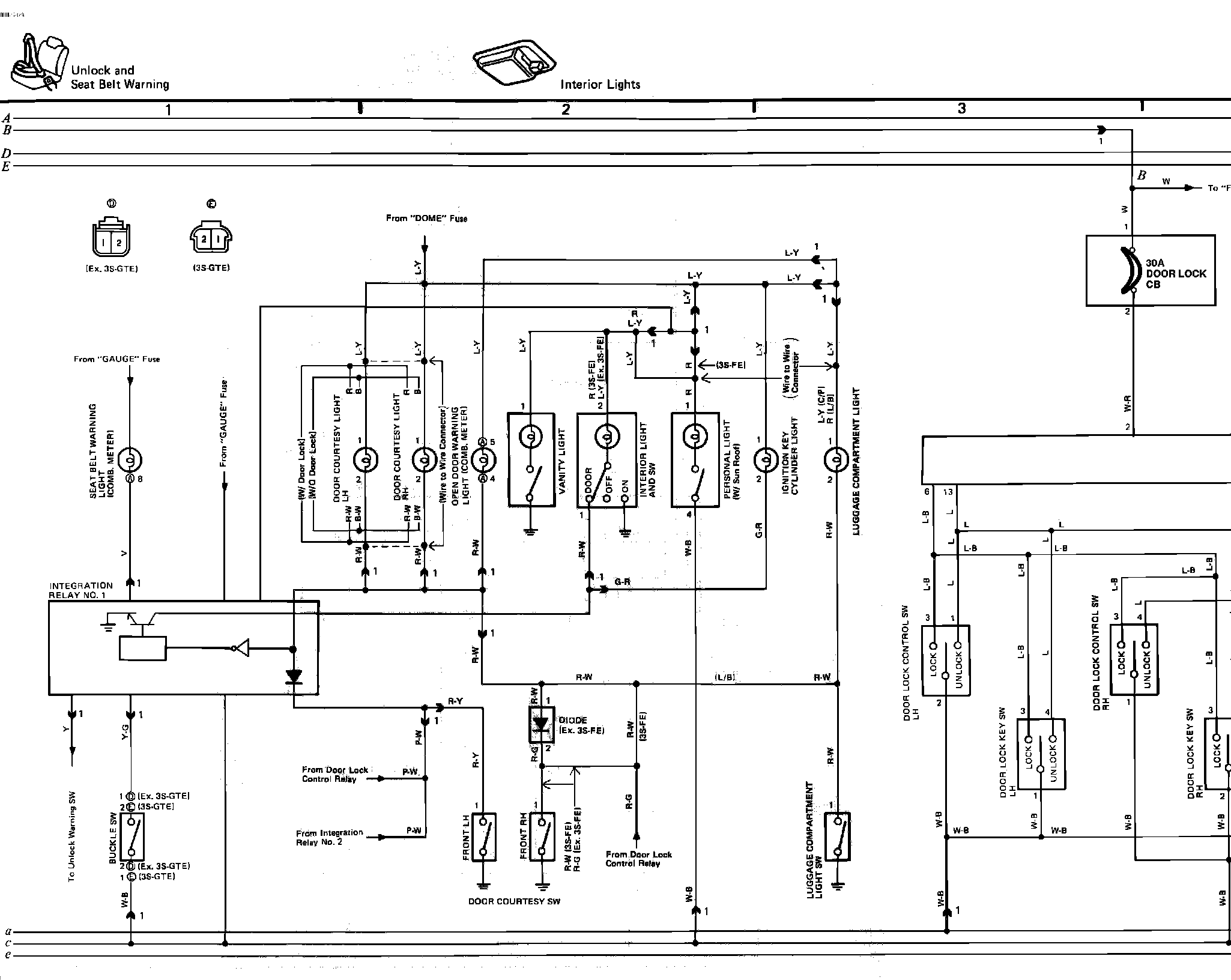

o�ĝ�Seat Belt Warning, Interior Light, Power Door Locks, Power Window, Power Seats, Sunroof And Idle-Up Wiring Circuits:
Power Source:
