Neutral Start Switch

A140L Transmission:

A140E Transmission:

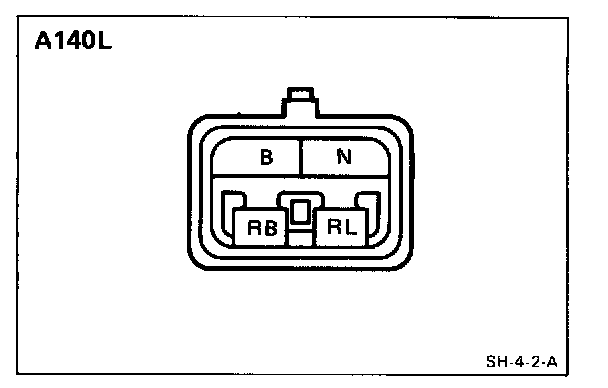

A140L Transmission W/ 3S-FE:

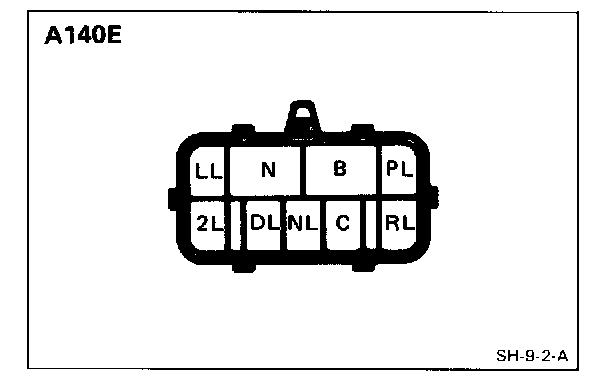

A140E Transmission W/ 3S-GE:

NEUTRAL START SWITCH
INSPECT NEUTRAL START SWITCH

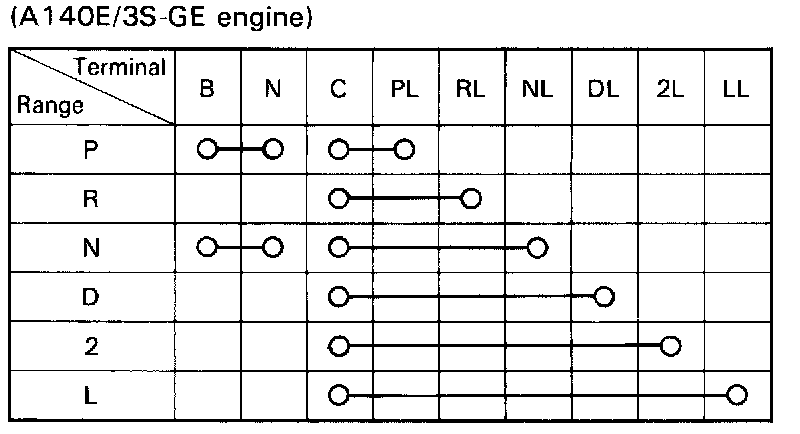

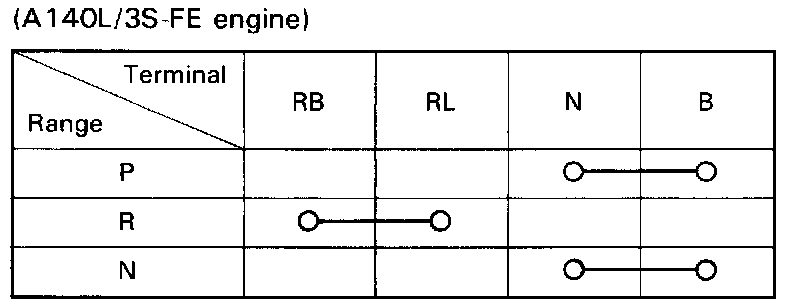

Using an ohmmeter, check the continuity of the terminals for each switch position shown in the table.
