With Telescopic Column
With Telescopic Column

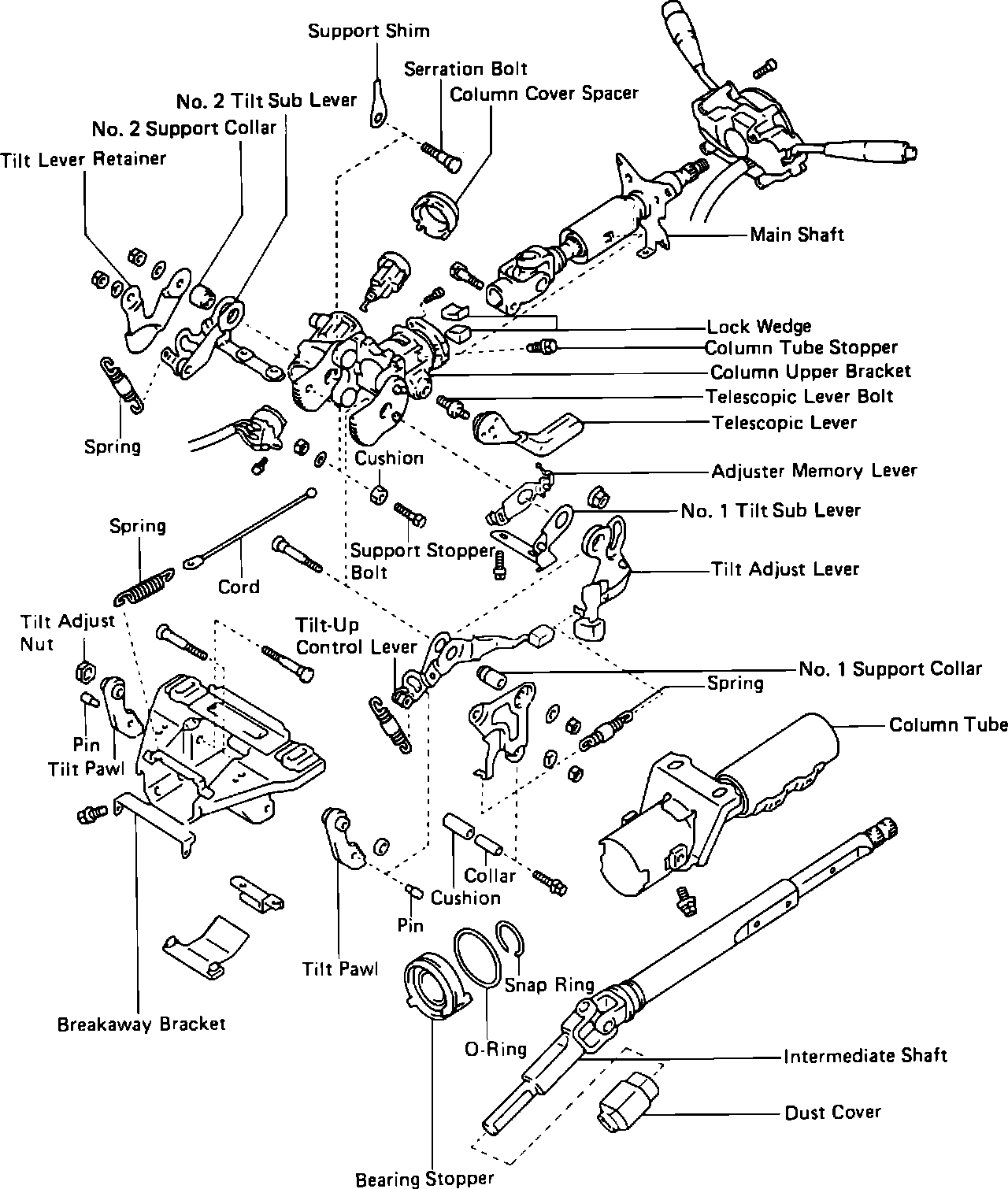

Fig. 11 Exploded View Of Steering Column. 1989-91 Celica & 1989-90 Supra:
Disarm airbag system as outlined under
Air Bag(s) Arming and Disarming
For
steering column
service, refer to
Fig. 11
