Fuse Panel Details

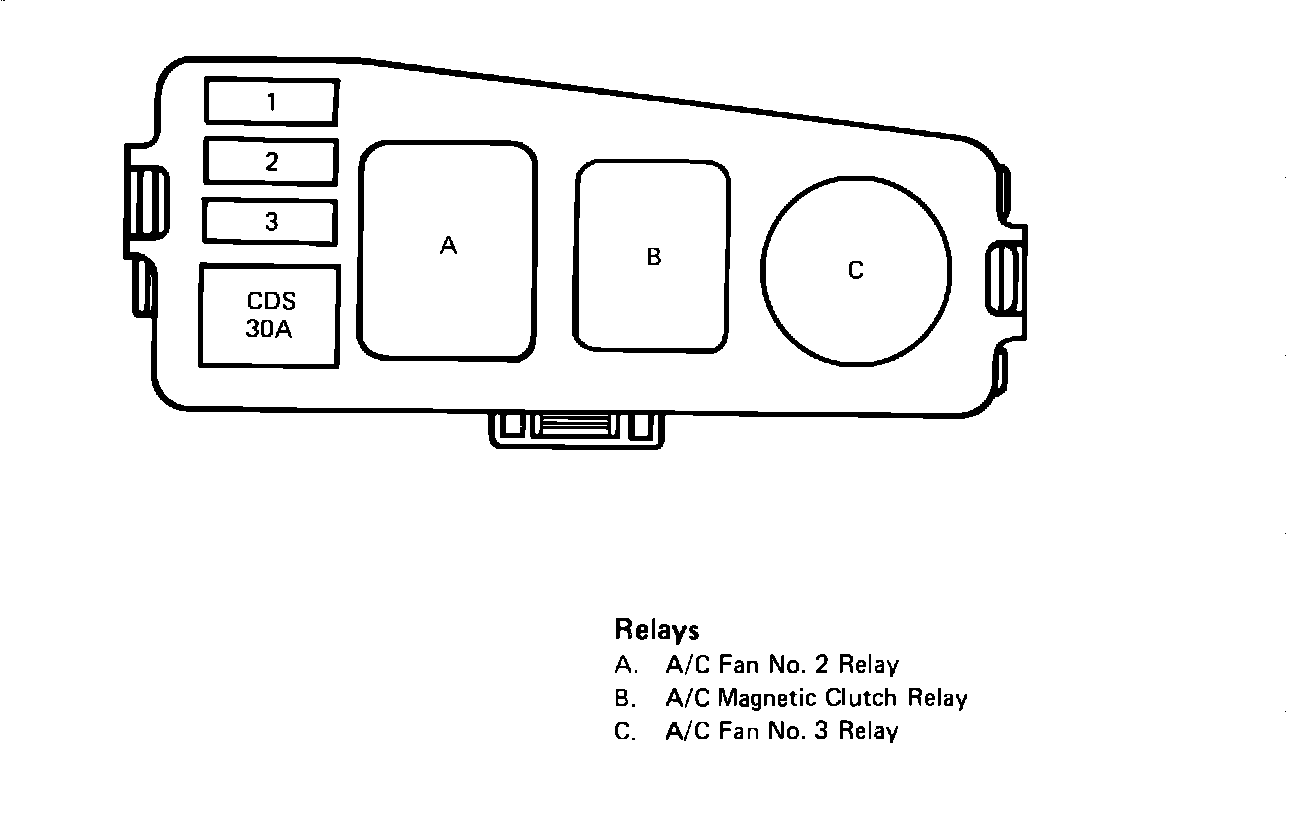

Fuse/Relay Panel #1:

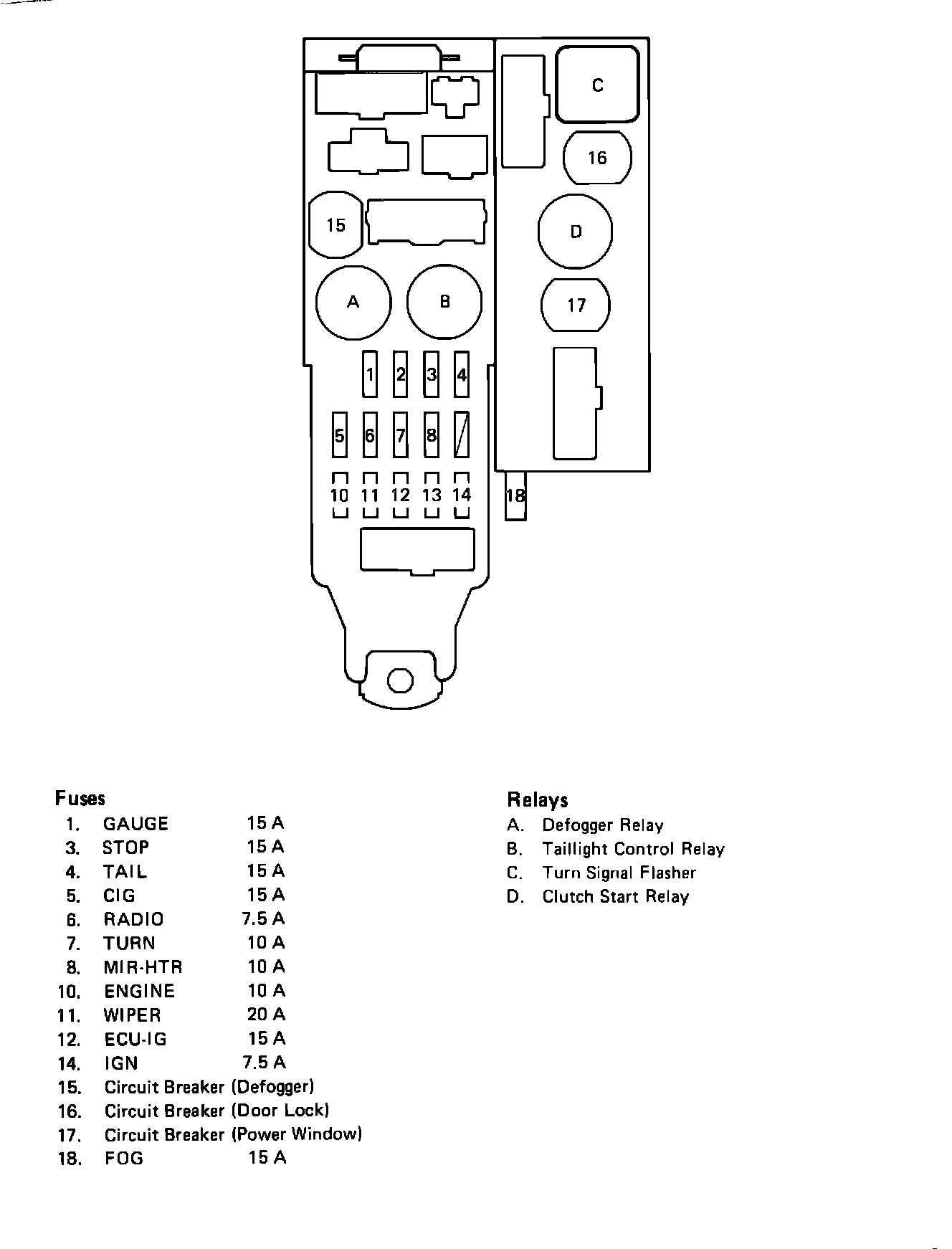

Fuse/Relay Panel #2:

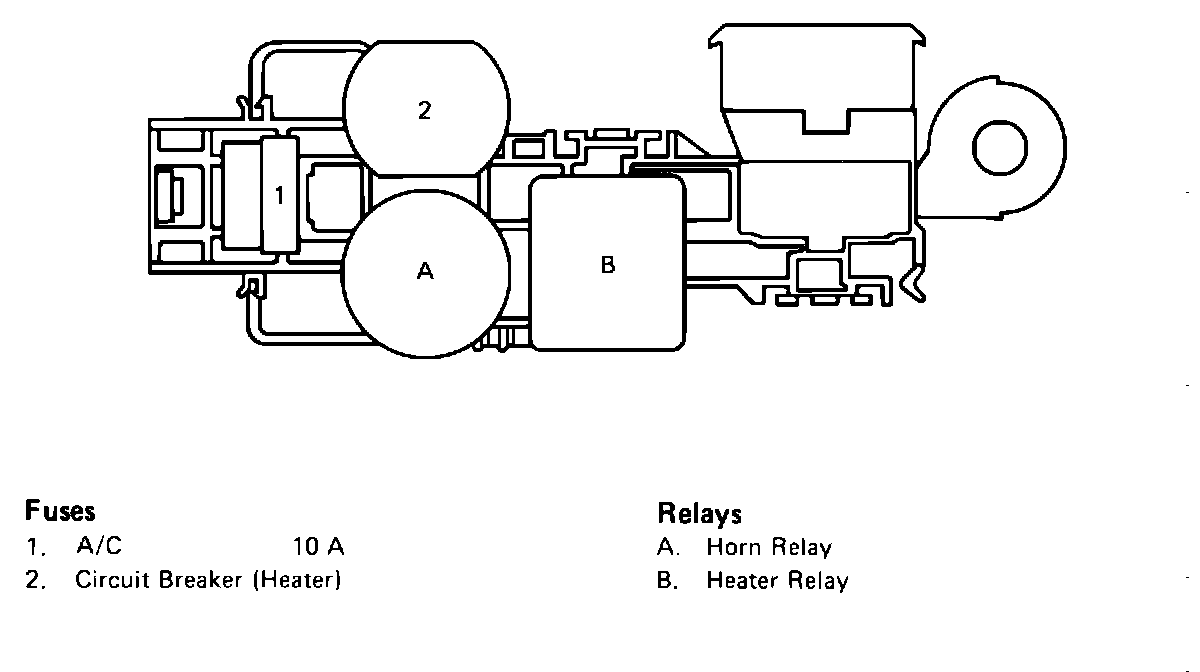

Fuse/Relay Panel #4:

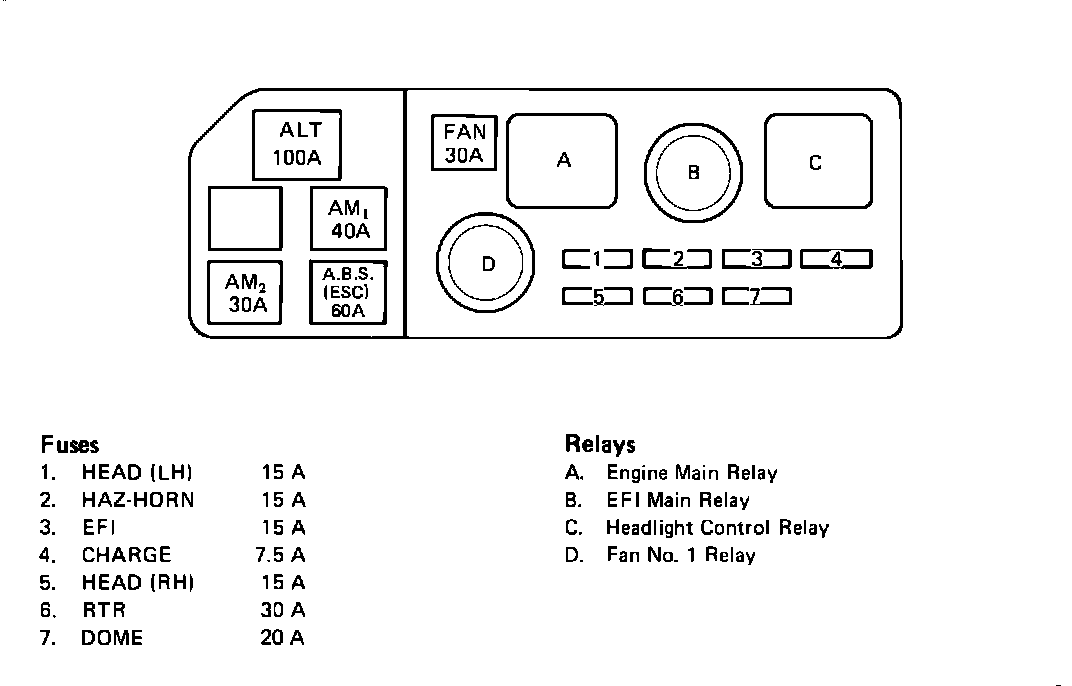

Fuse/Relay Panel #5:
