Condenser Fan Motor Relay: Locations

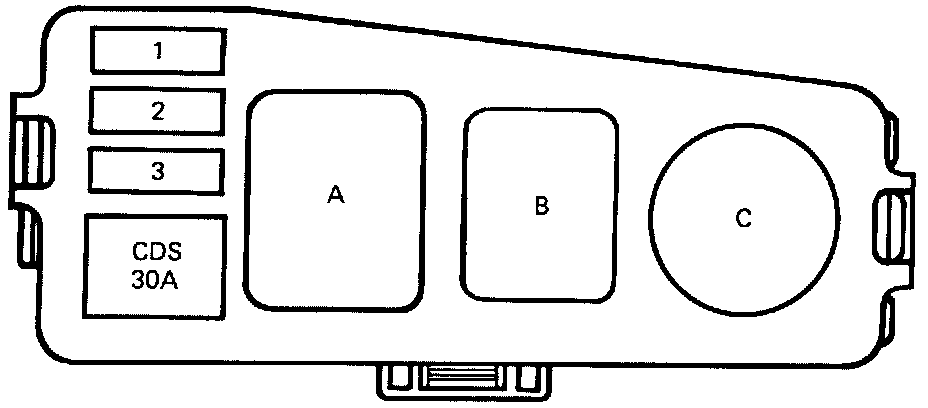

Fuse And Relay Block Number 5 Layout:

Location
Engine Compartment

Relays
A. A/C Fan NO. 2 Relay
B. A/C Magnetic Clutch Relay
C. A/C Fan NO. 3 Relay

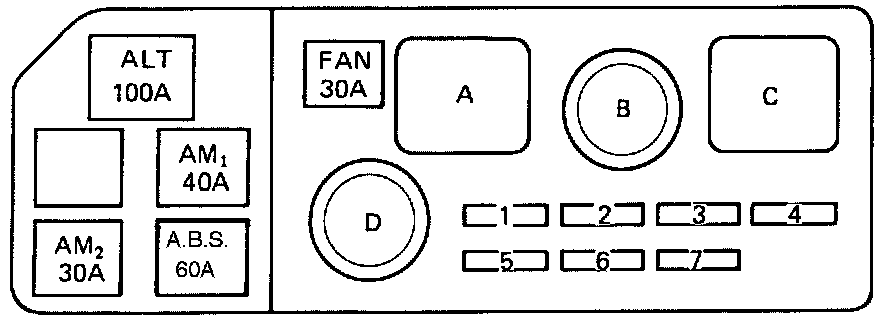

Fuse And Relay Block Number 2 Layout:

Location
Engine Compartment
Fuses
1. HEAD (LH) 15A
2. HAZ-HORN 15A
3. EFI 15A
4. CHARGE 7.5A
5. HEAD (RH) 15A
6. RTR 30A
7. DOME 20A

Relays
A. Engine Main Relay
B. EFI Main Relay
C. Headlight Control Relay
D. Fan No. 1 Relay
