Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Testing and Inspection
>>
Spark Test
Spark Test

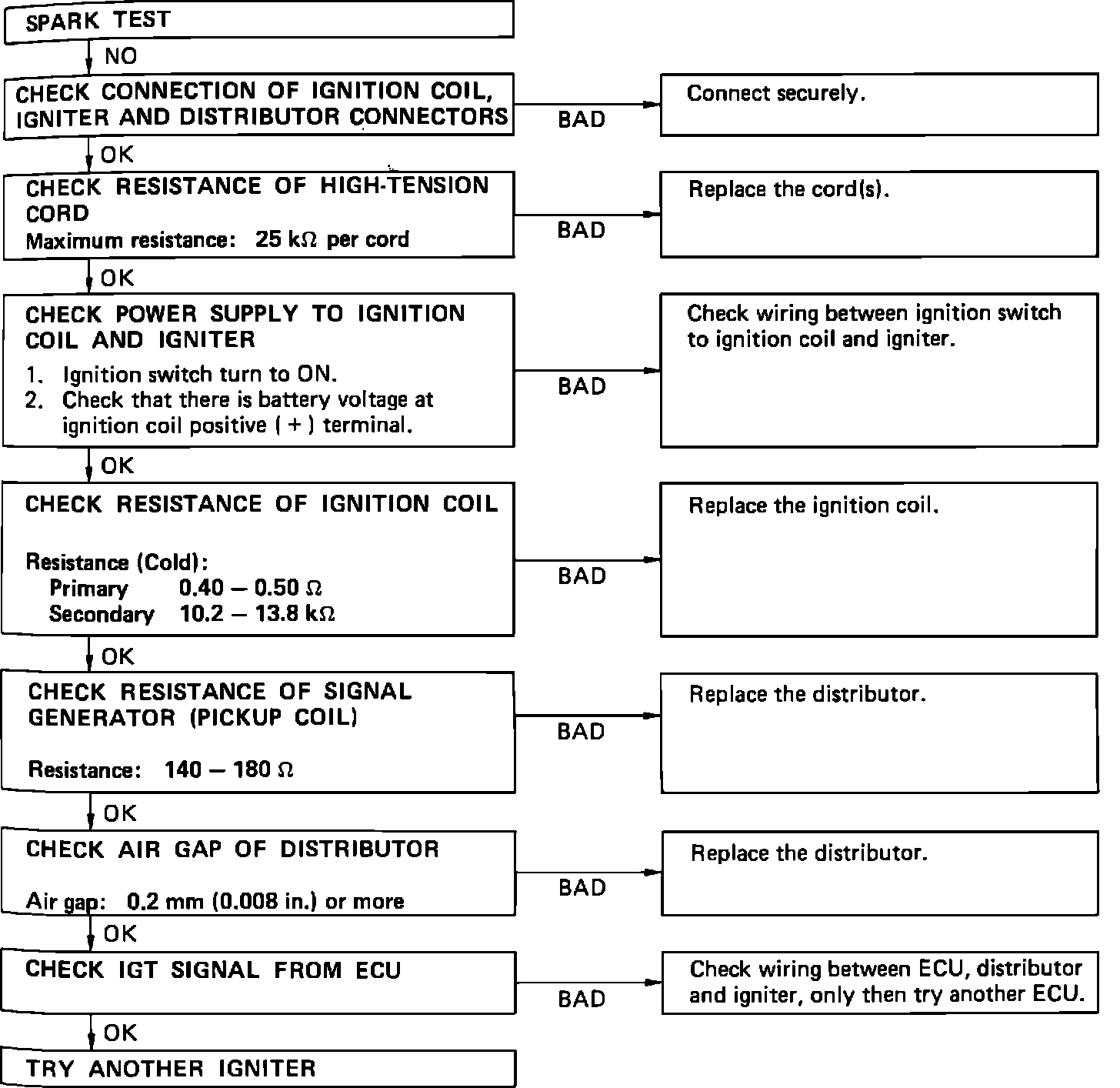

3S-FE ENGINE:
Spark Test:

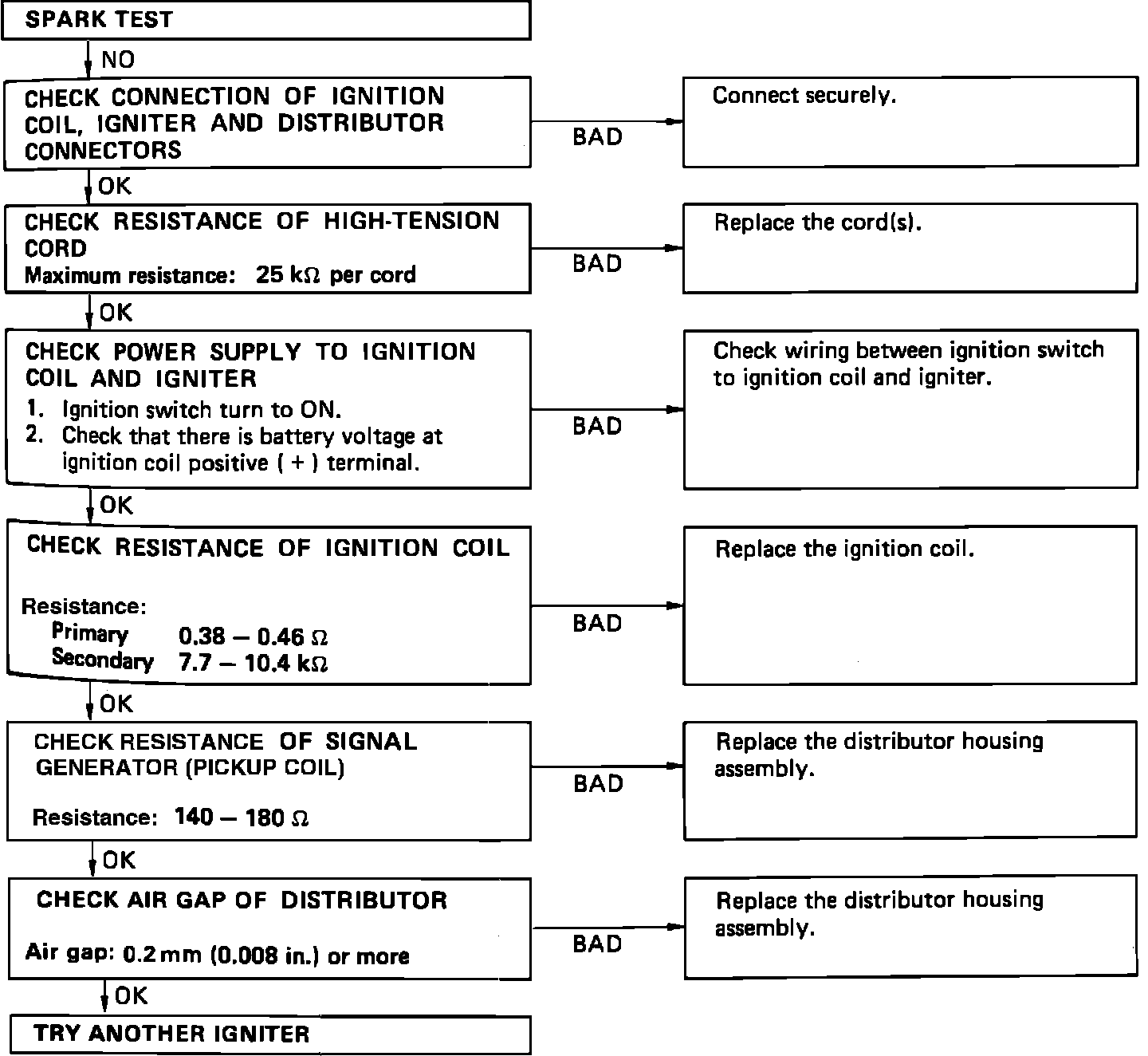

3S-GE AND 3S-GTE ENGINES:
Spark Test:
