Starting and Ignition Systems Circuit Diagram

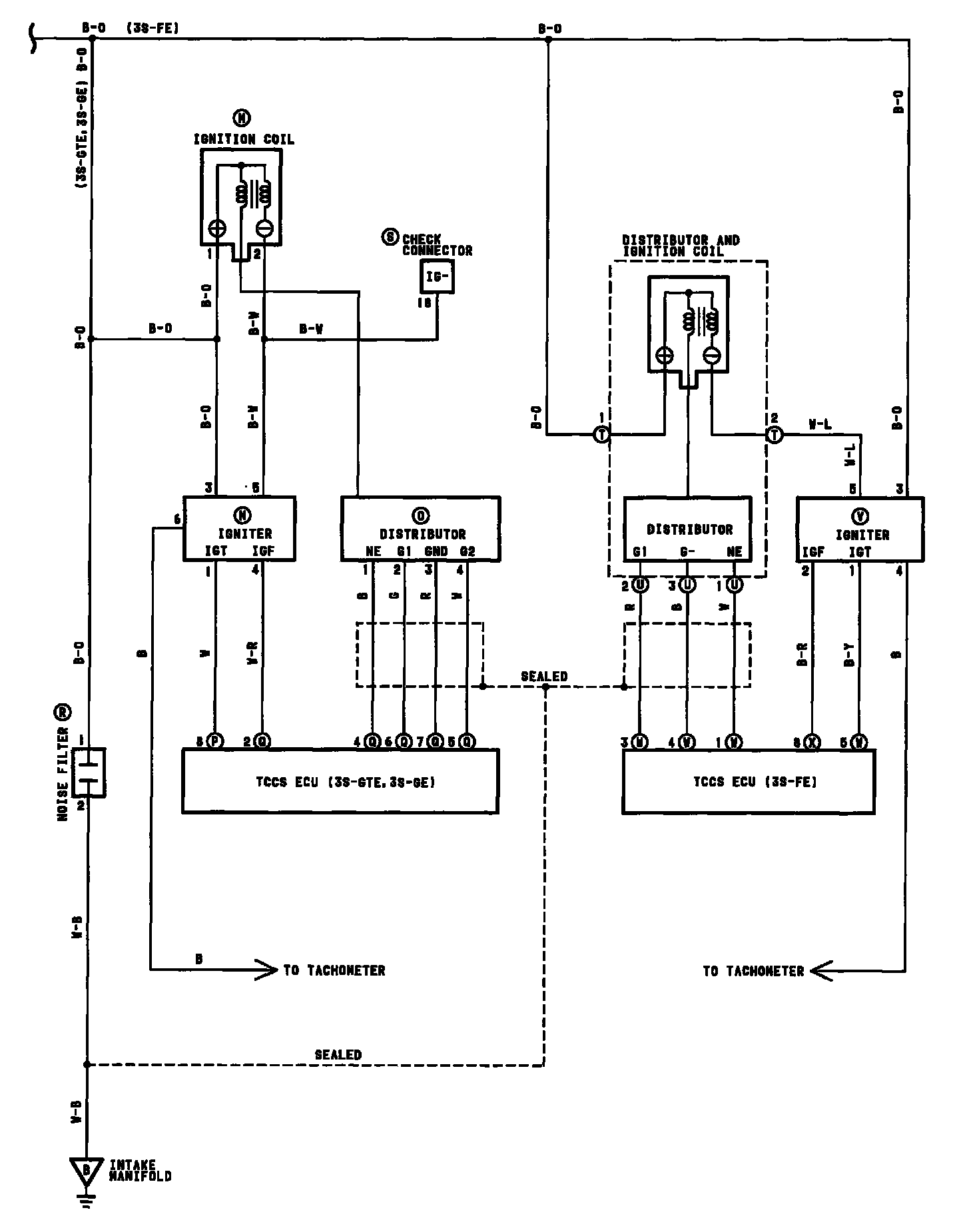

Starting And Ignition Systems Circuit Diagram (Part 1 Of 2):





Starting And Ignition Systems Circuit Diagram (Part 2 Of 2):

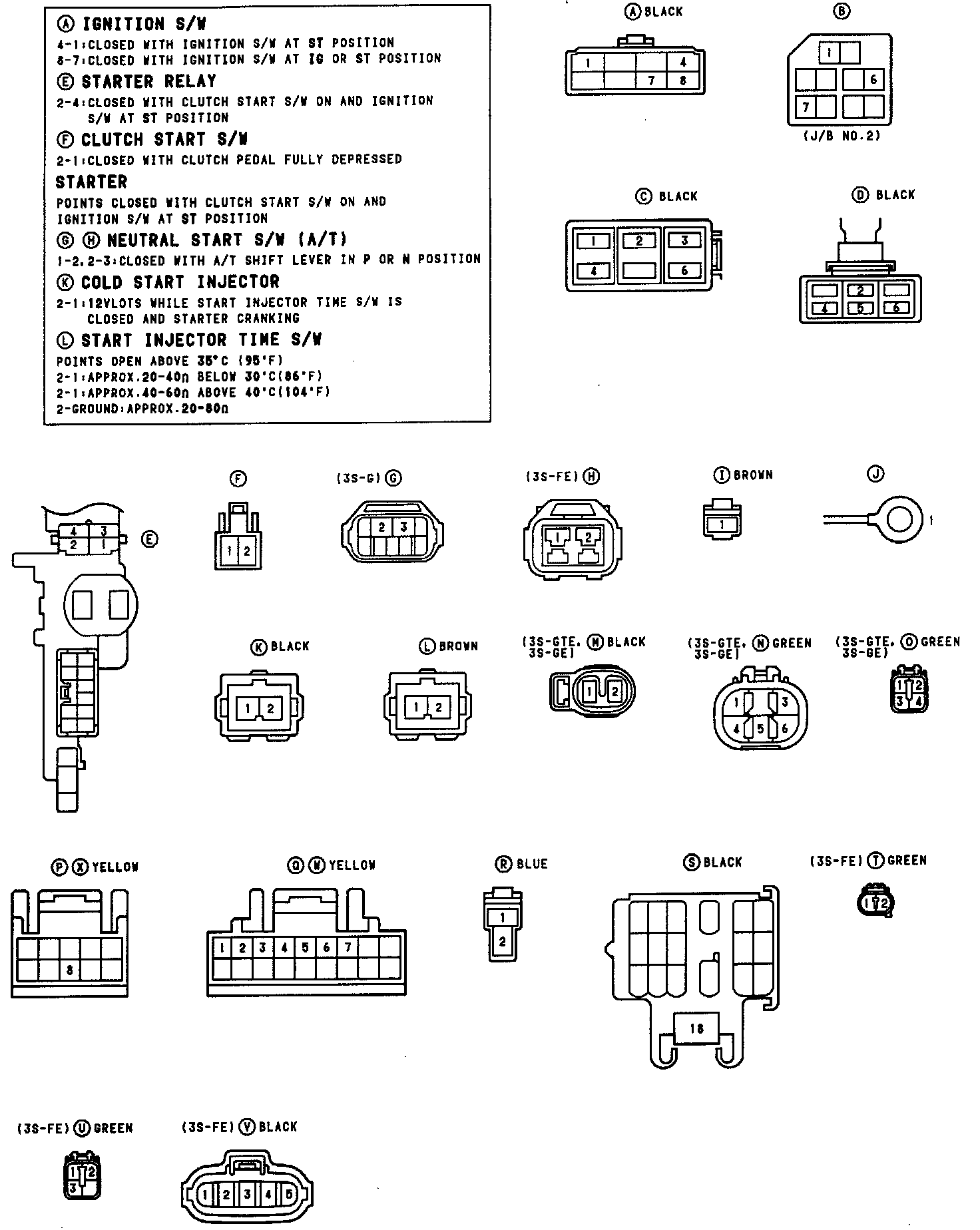

Starting And Ignition Systems Troubleshooting And Connectors:

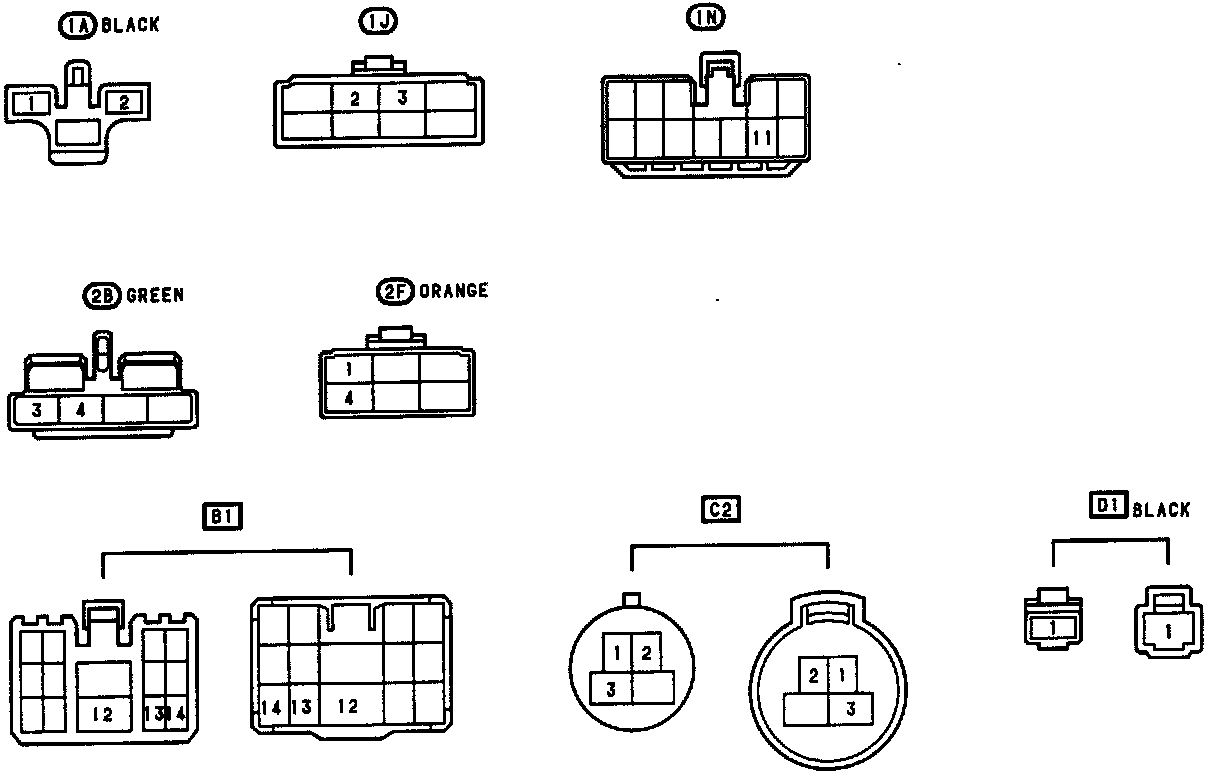

Starting And Ignition Systems Connectors:
