Technical Instructions

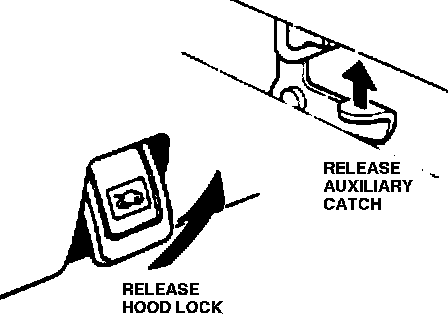

Step 1. To open the hood, pull the hood lock
release lever under the dash. The hood will spring up slightly. In front of the vehicle, press up on the auxiliary catch lever and lift the hood.

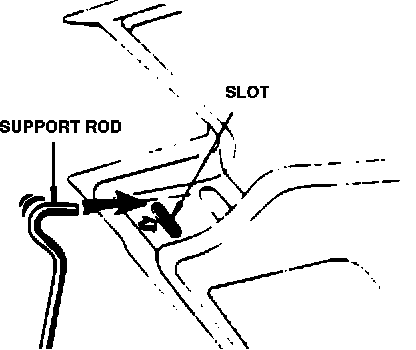

Step 2. After lifting the hood up, hold it open by
inserting the support rod into the slot. The end of the rod should be inserted into the slot.


CAUTION:
After inserting the support rod into the slot, make sure the rod supports the hood securely.

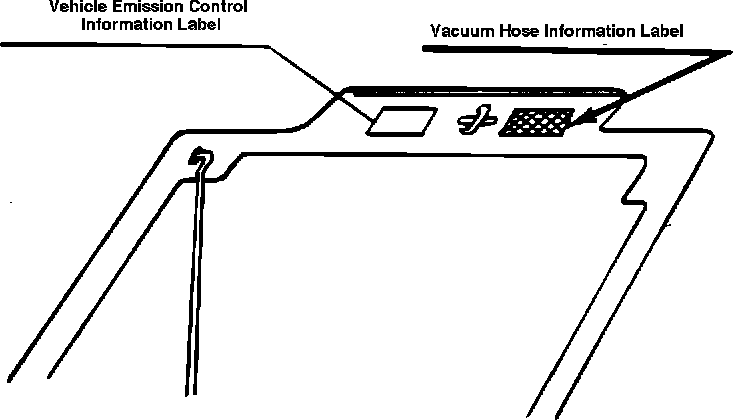

Step 3. Find the vacuum hose information label
on the underside of the hood as shown in figure.

Step 4. Wipe off any oil or dirt on or around the
existing label.

Step 5. Remove the backing from the new label
enclosed with this letter and affix it over the original label.
