Exhaust Gas Recirculation: Locations

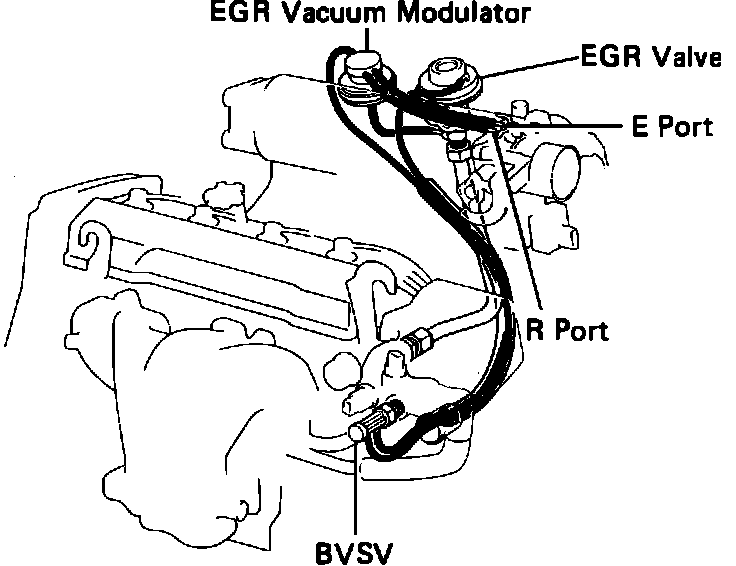

Fig. 14 Exhaust Gas Recirculation System:

Bimetal Vacuum Switching Valve (BVSV): Lower, rear of engine
EGR Gas Temperature Sensor: Top RH side of engine
EGR Valve: Top RH side of engine
Vacuum Modulator: Top RH side of engine
