Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire
Muffler Explosion (Afterfire) - Rich Air Fuel Mixture - Misfire

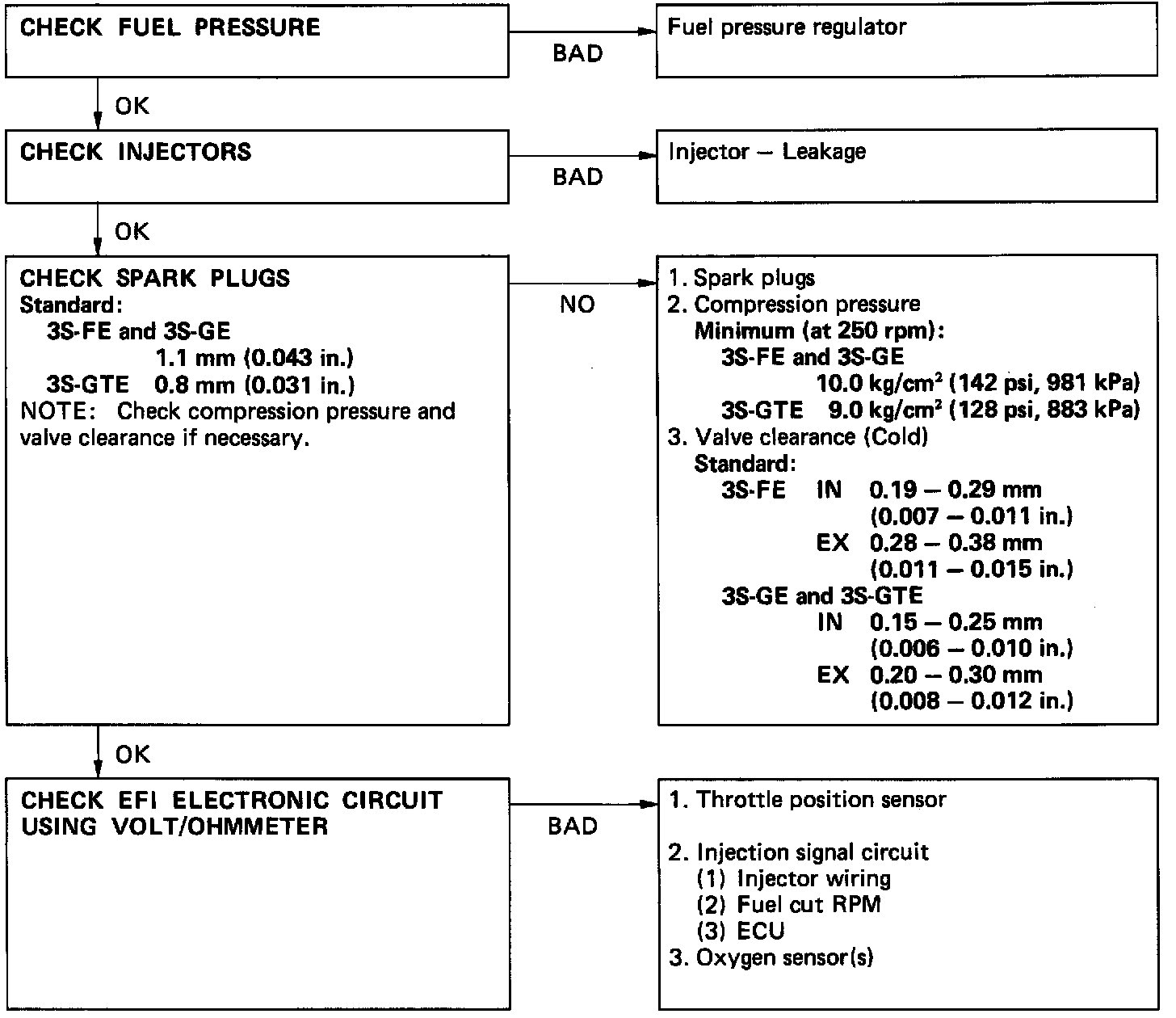

MUFFLE EXPLOSION (After Fire)-Rich Fuel Misfire
No. 1 Of 2:
No. 2 Of 2:
