THG / EGR Gas Temp. Sensor (California Only)
THG / EGR Gas Temp. Sensor (California Only)

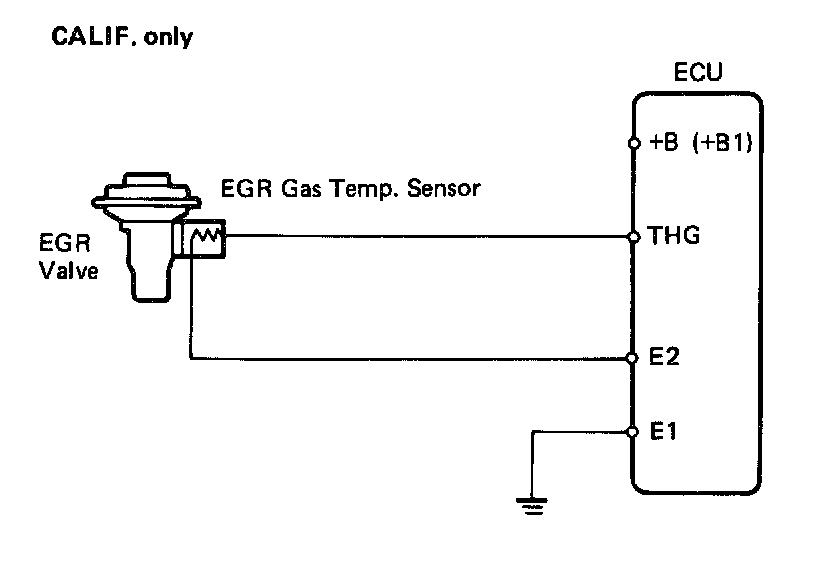

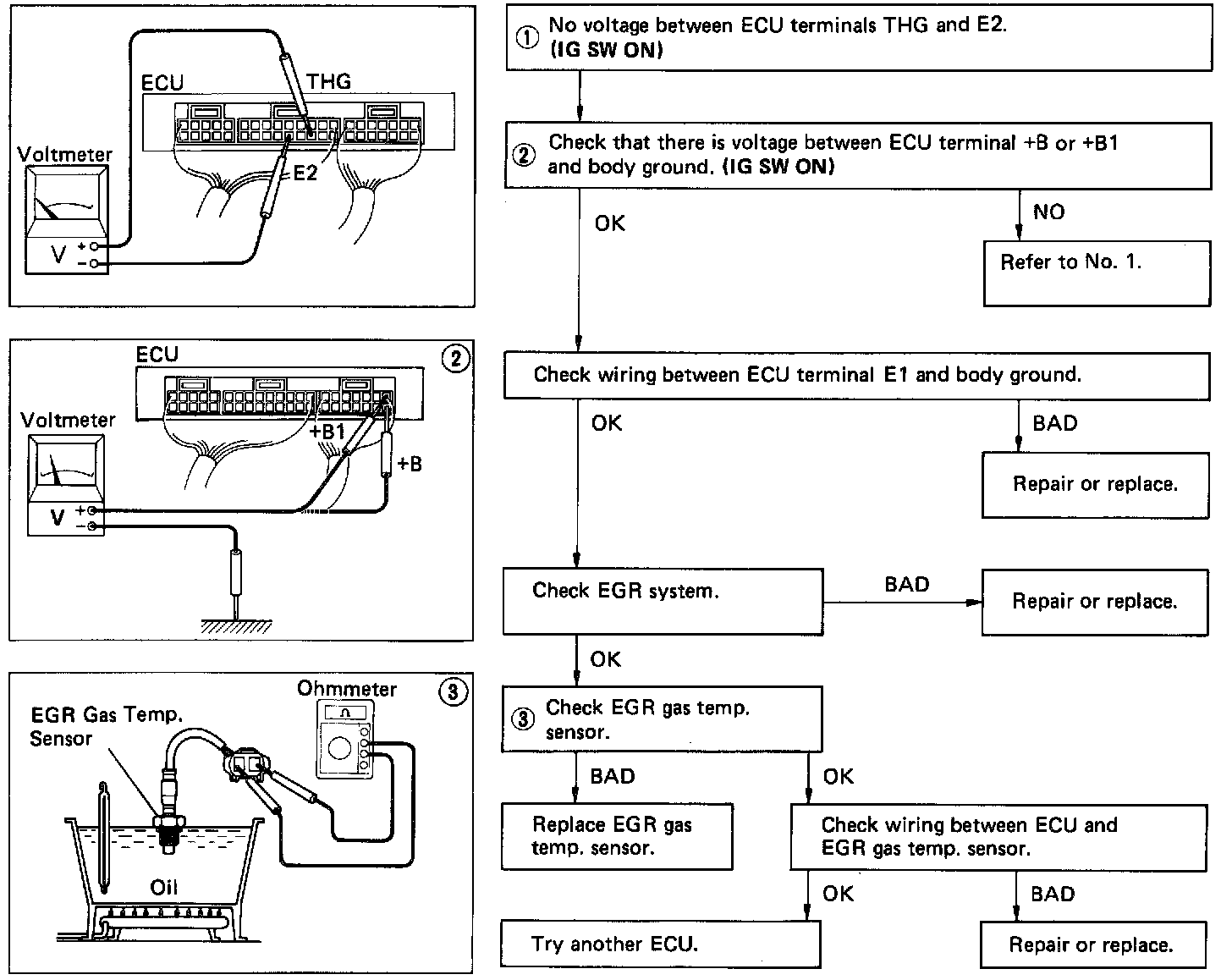

THG / EGR GAS TEMP. SENSOR (California Only)
Part 1 Of 1:
Part 2 Of 2:
