Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
Relay Box: Locations
Underhood Components:

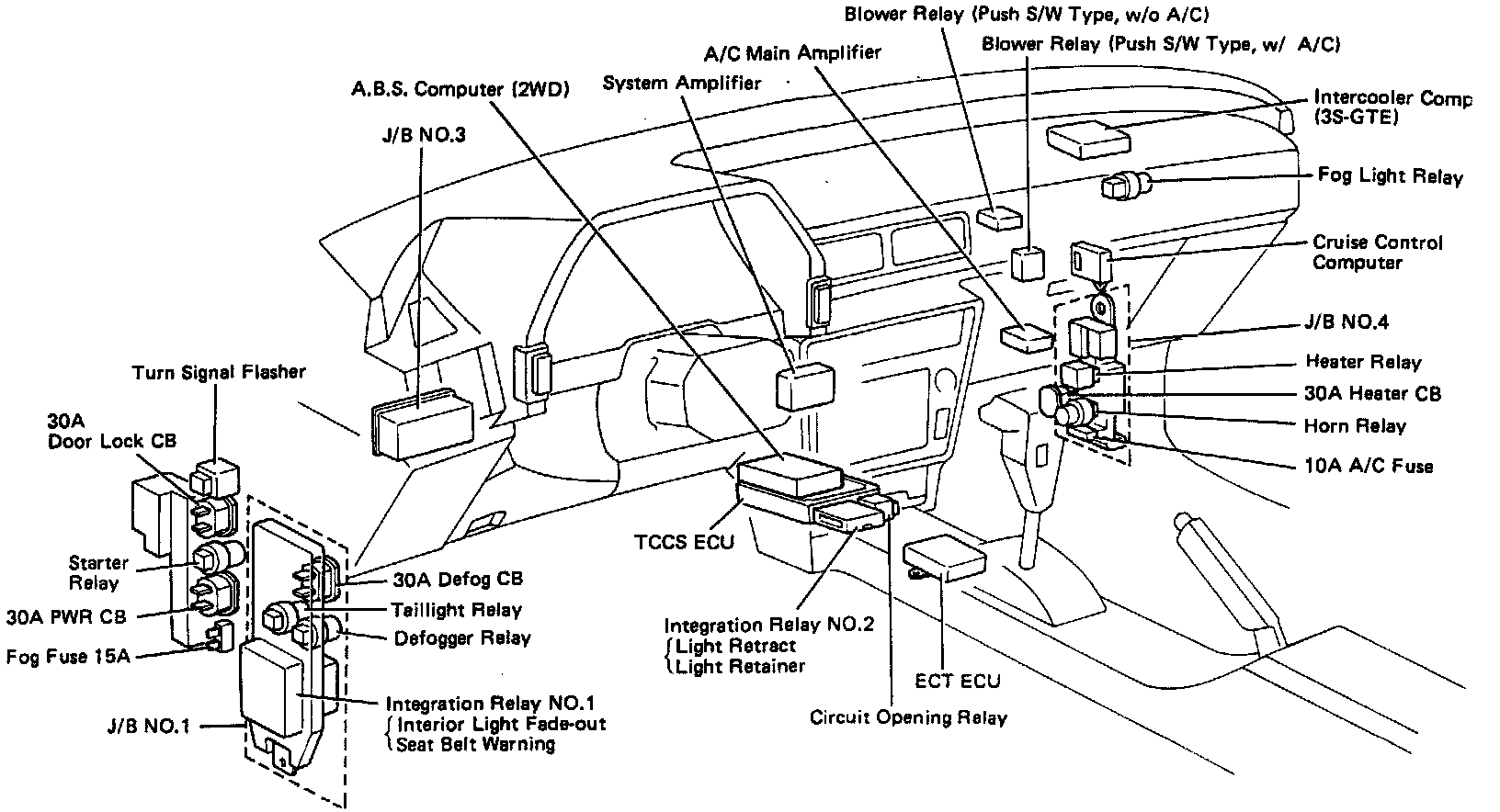

Electrical Components - Interior:
