Refrigerant Volume
Refrigerant Volume
1.
Run engine at approx. 2000 RPM.
2.
Operate air conditioner at maximum cooling for a few minutes.
3.

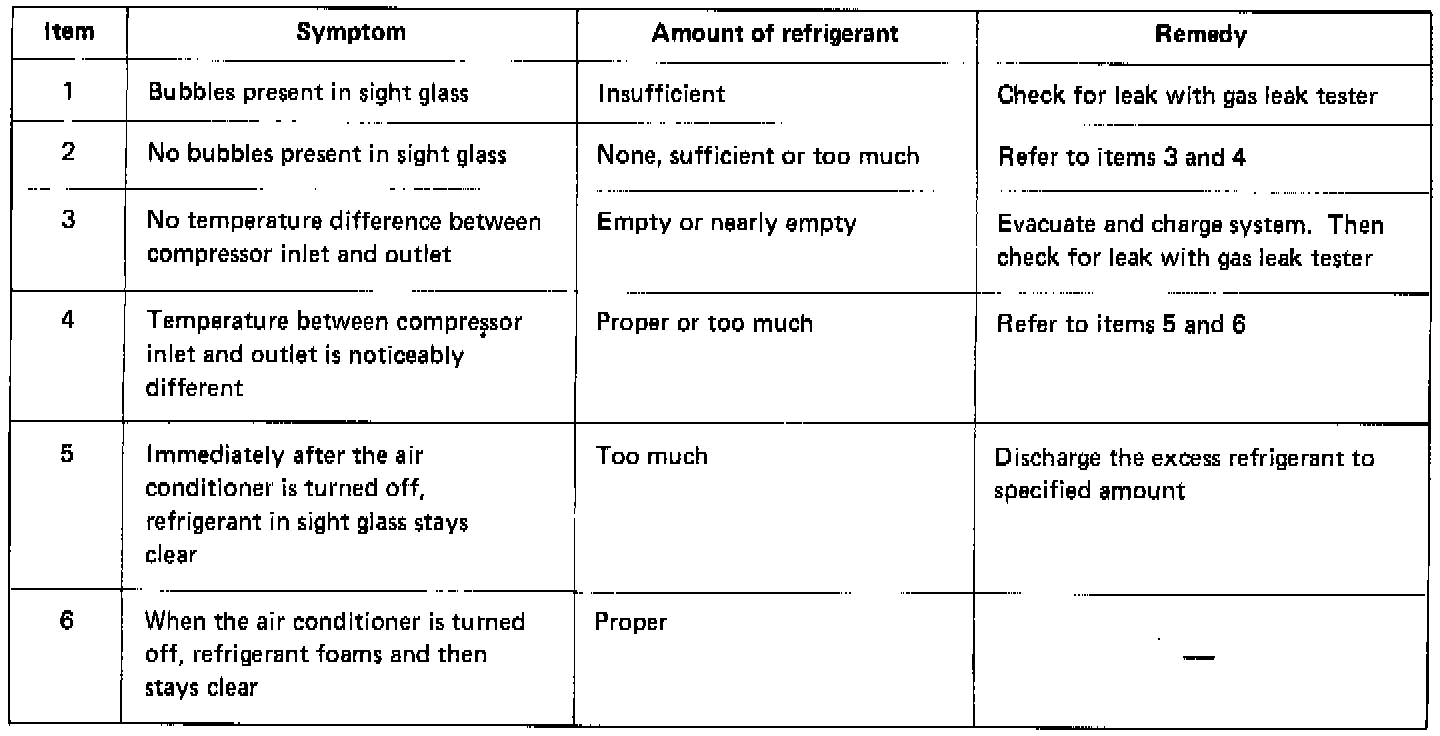

Check amount of
refrigerant

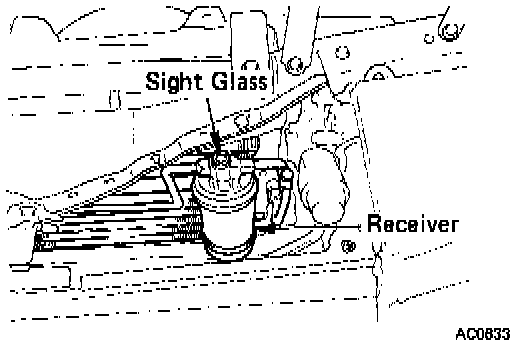

. Observe the
sight glass
on the receiver.
