Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

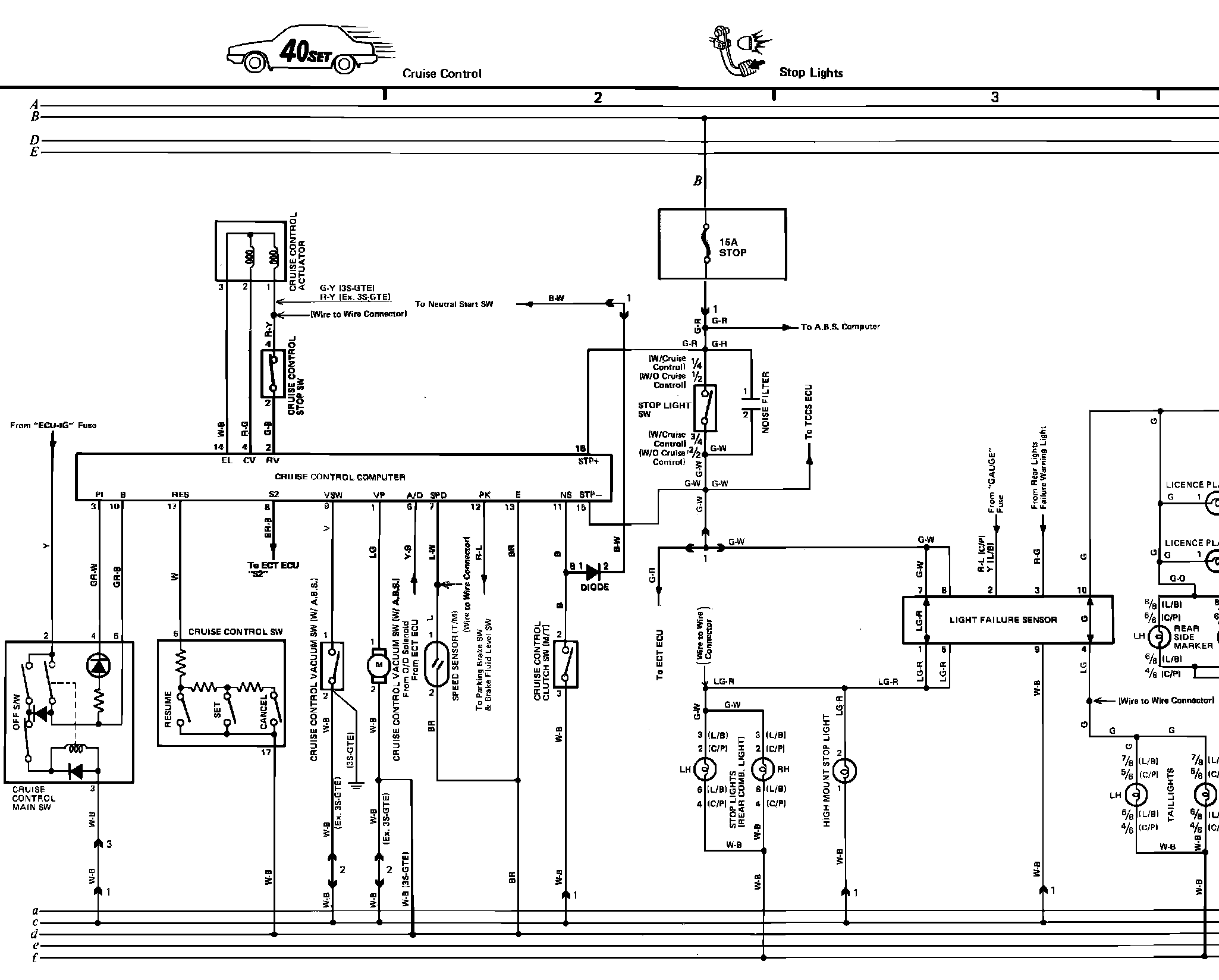

Of�:��Cruise Control, Stop Light, Tail Light, Illumination, Fog Light And Head Light Wiring Circuits:
Power Source:
