Exhaust Gas Recirculation: Locations

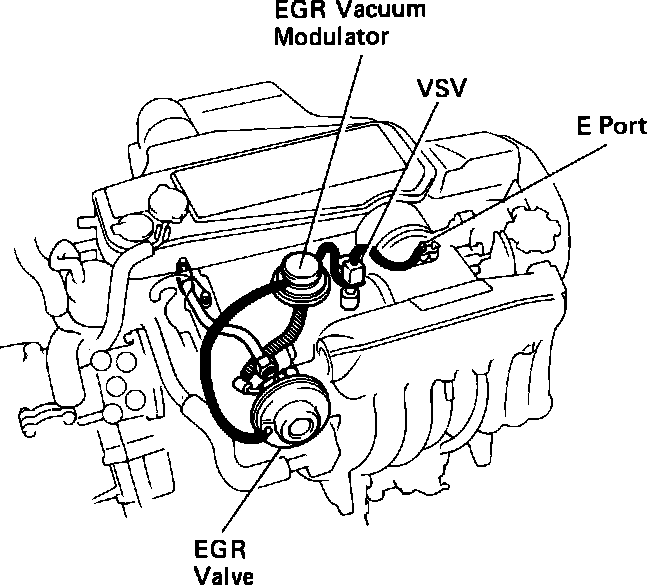

Fig. 68 Exhaust Gas Recirculation System:

EGR Gas Temperature Sensor: Top, RH side of engine
EGR Valve: Rear, RH side of engine
Vacuum Modulator: Top, RH side of engine
Vacuum Switching Valve (VSV): Top, center of engine
