THG / EGR Gas Temp. Sensor (California Only)

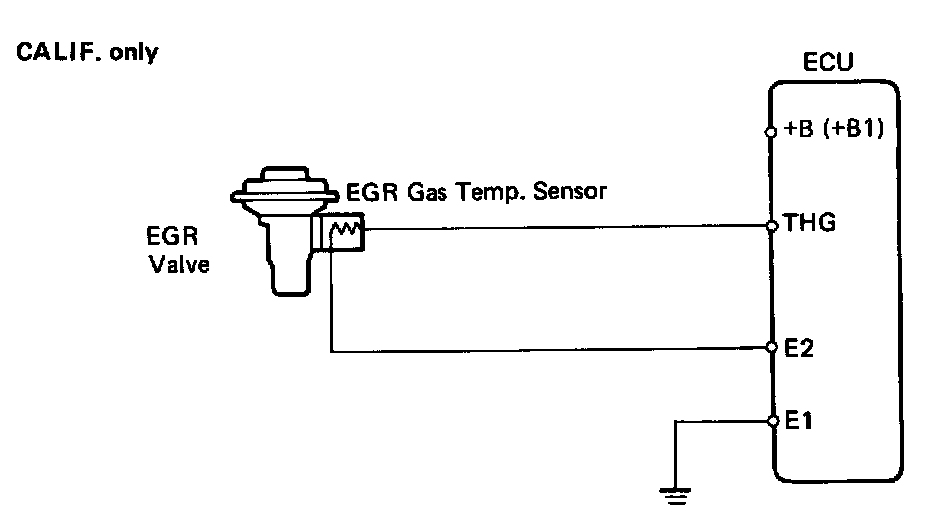

THG / EGR Gas Temp. Sensor (California Only)
THG /
EGR

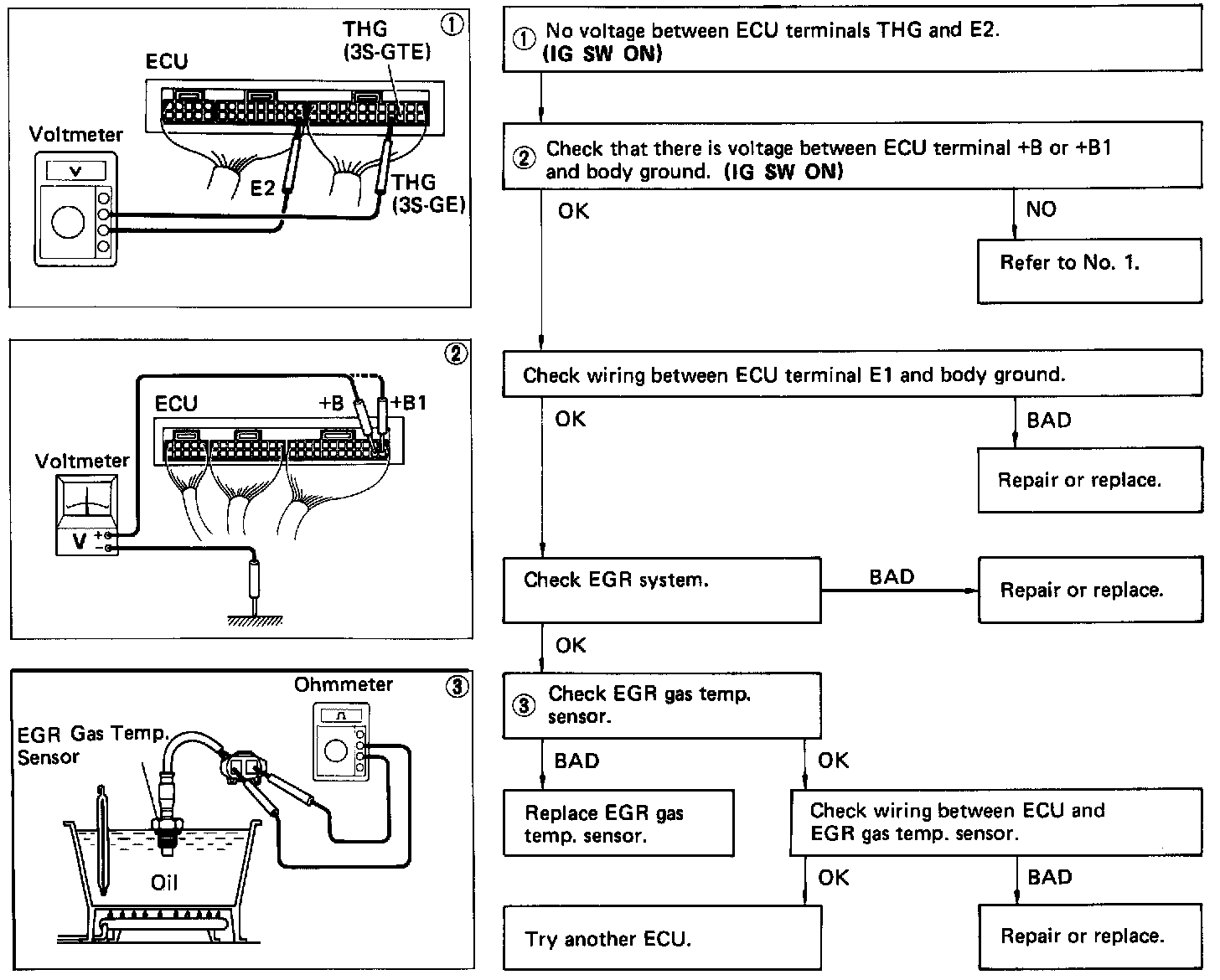

TEMP. SENSOR TESTING
Part 1 Of 2:
Part 2 Of 2:
