Camry Wagon V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Control Module, A/T
Control Module, A/T

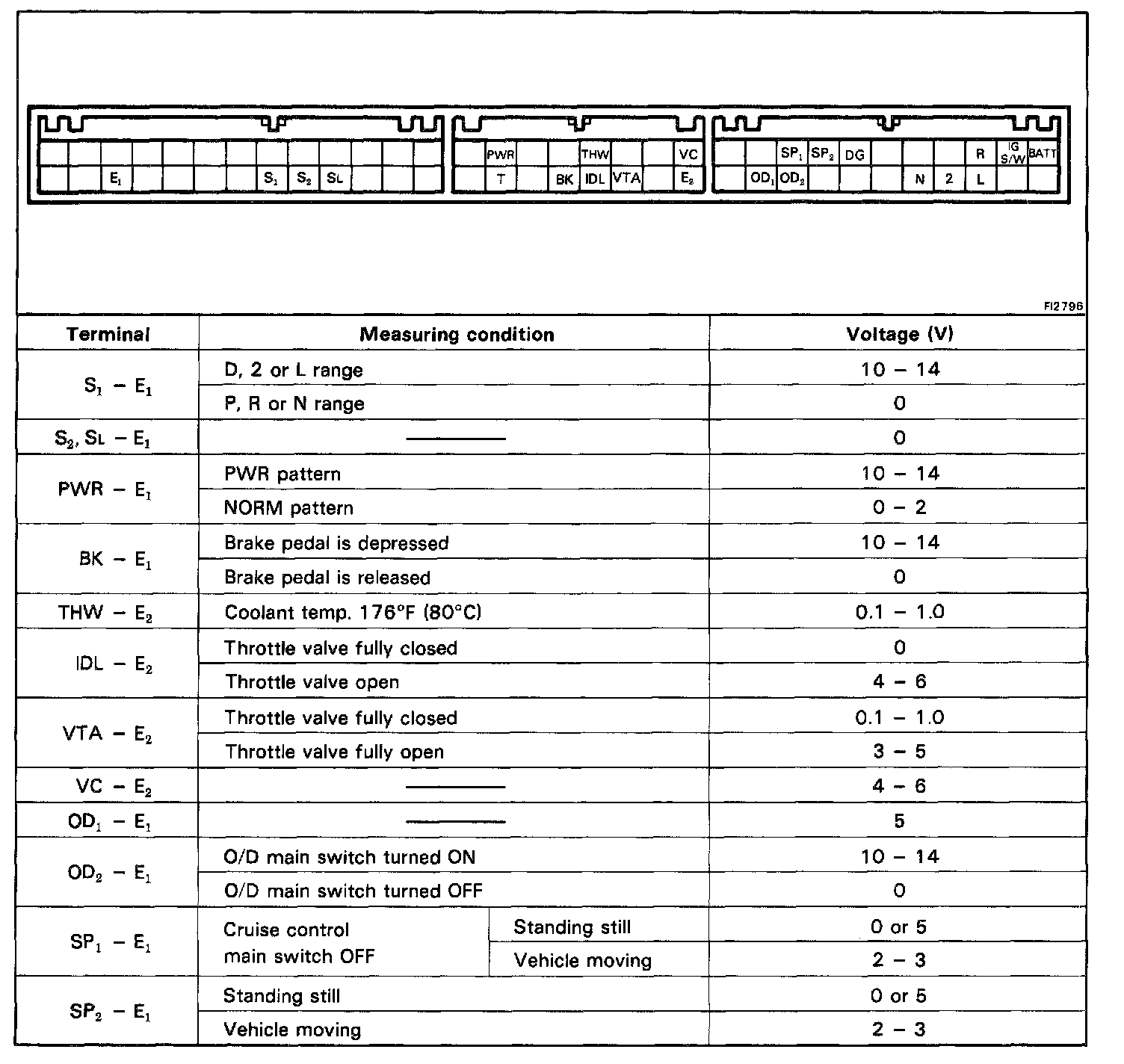

TCCS ECU Pinout Values:

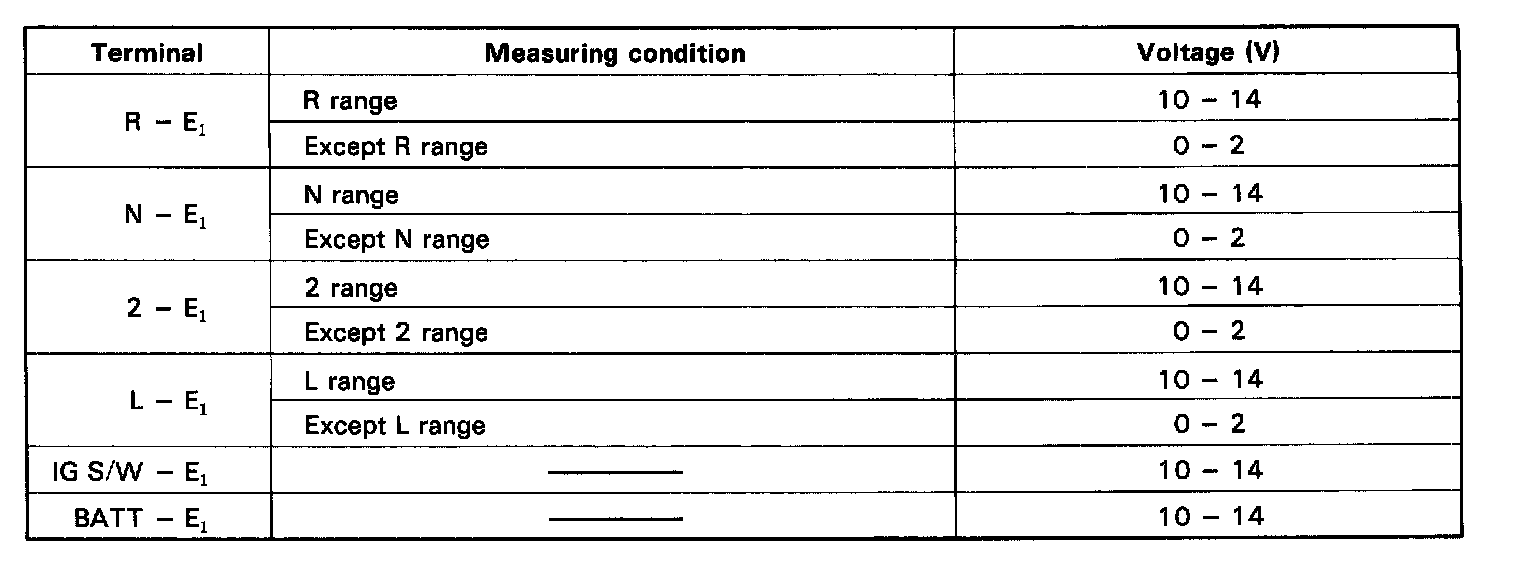

TCCS ECU Pinout Values:
