Exhaust Gas Recirculation: Locations

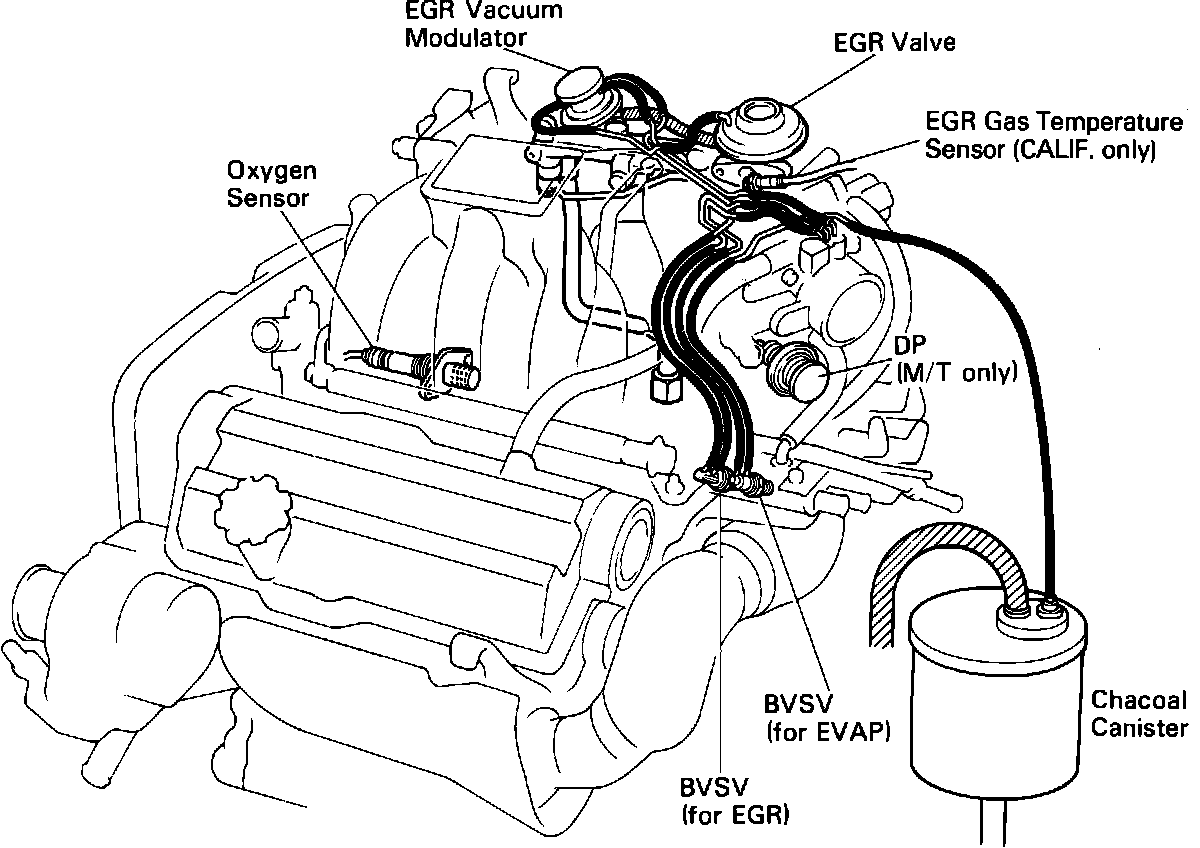

Fig. 21 Emission Components And Vacuum Hose Routing:

Bimetal Vacuum Switching Valve (BVSV): Front of engine
EGR Gas Temperature Sensor: Top RH side of engine
EGR Valve: Top center of engine
Vacuum Modulator: Top center of engine
