Home
>>
Toyota
>>
1989
>>
Camry Wagon V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

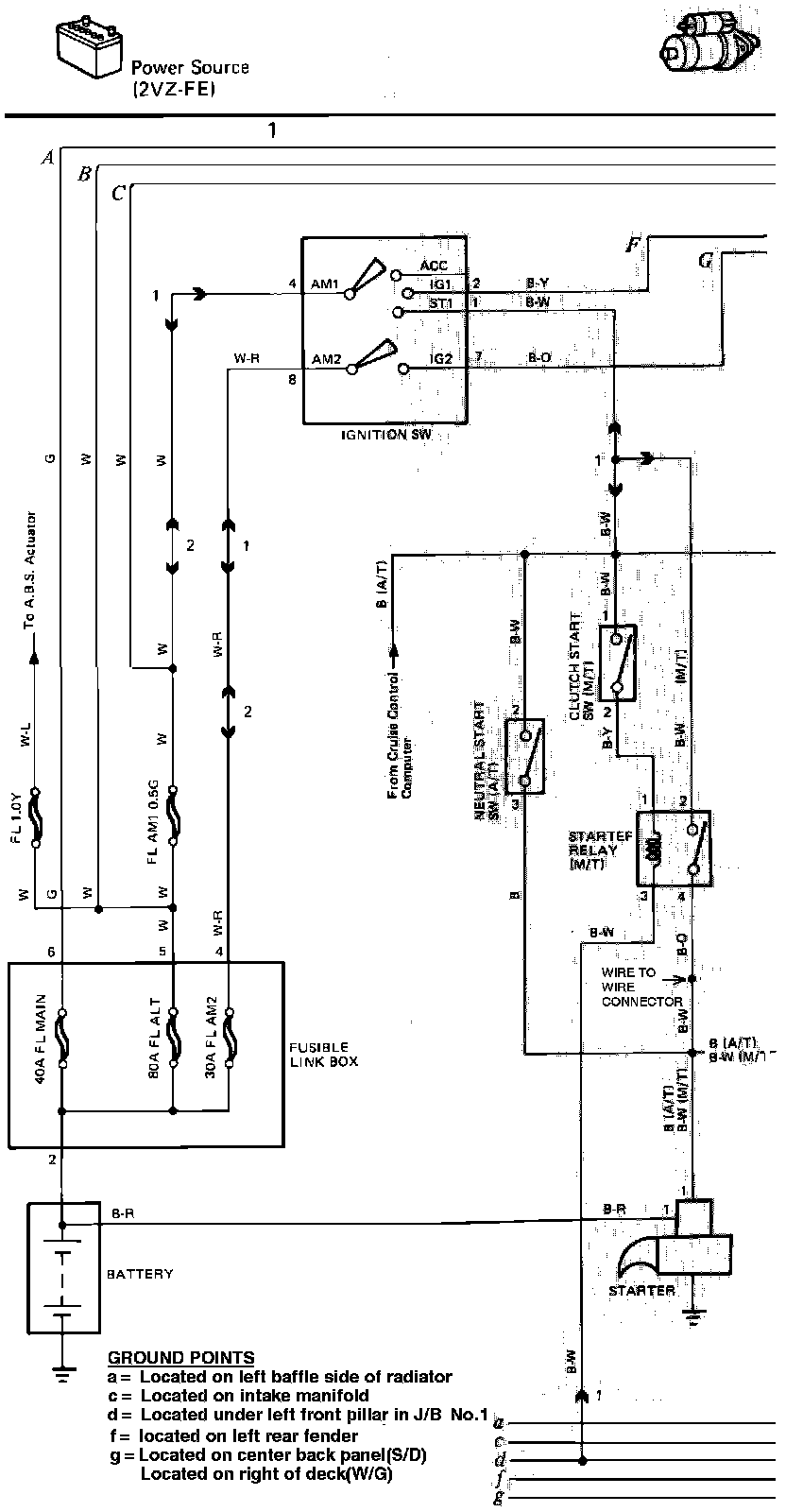

Power Source:
�9$Q{$Automatic Transmission, Back-Up Lights, Wiper/Washer, Turn Signal, Hazard, Horn And Rear Window Defogger Wiring Circuits:
