Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Camry Wagon V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

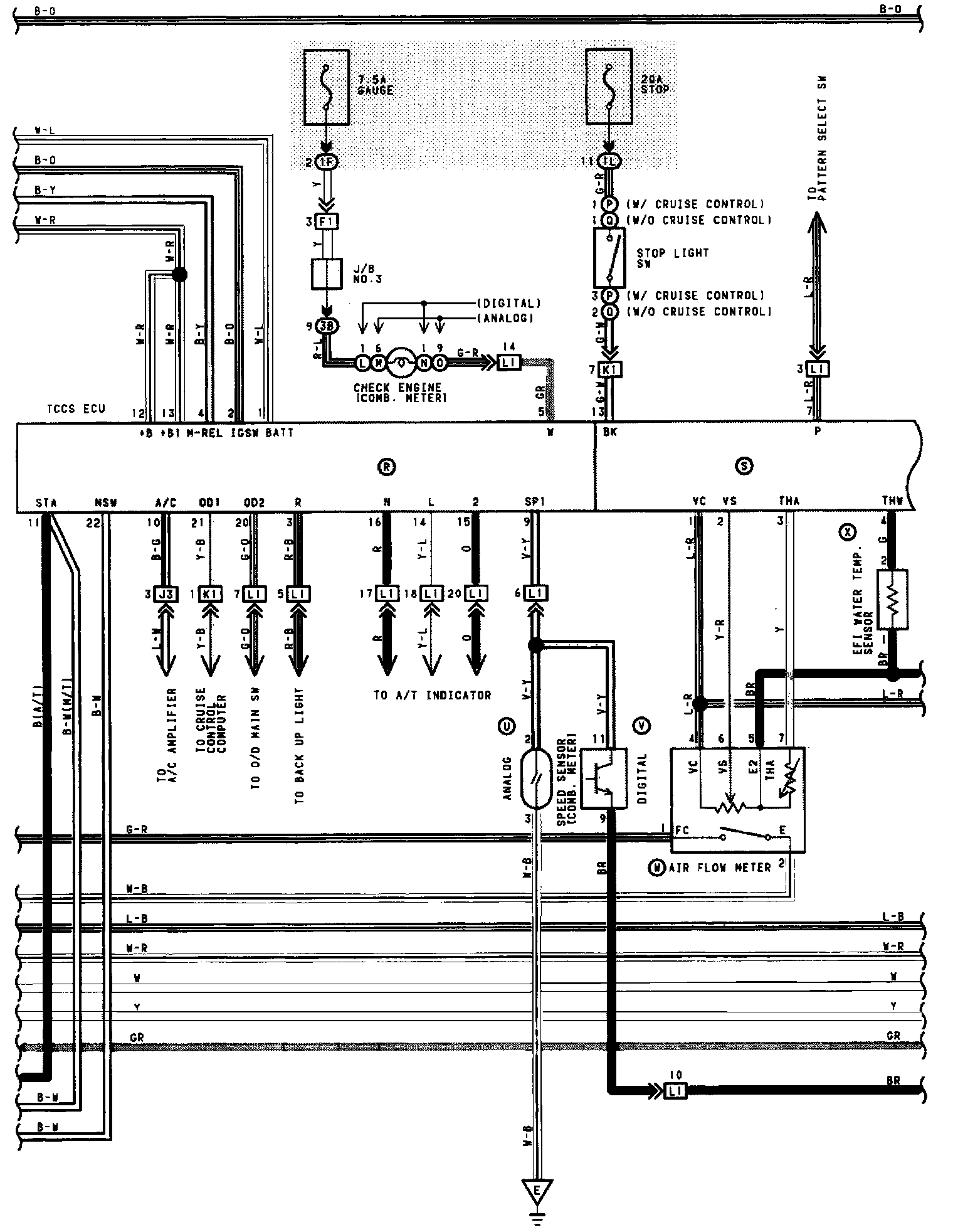

TCCS - Part 1 Of 4:

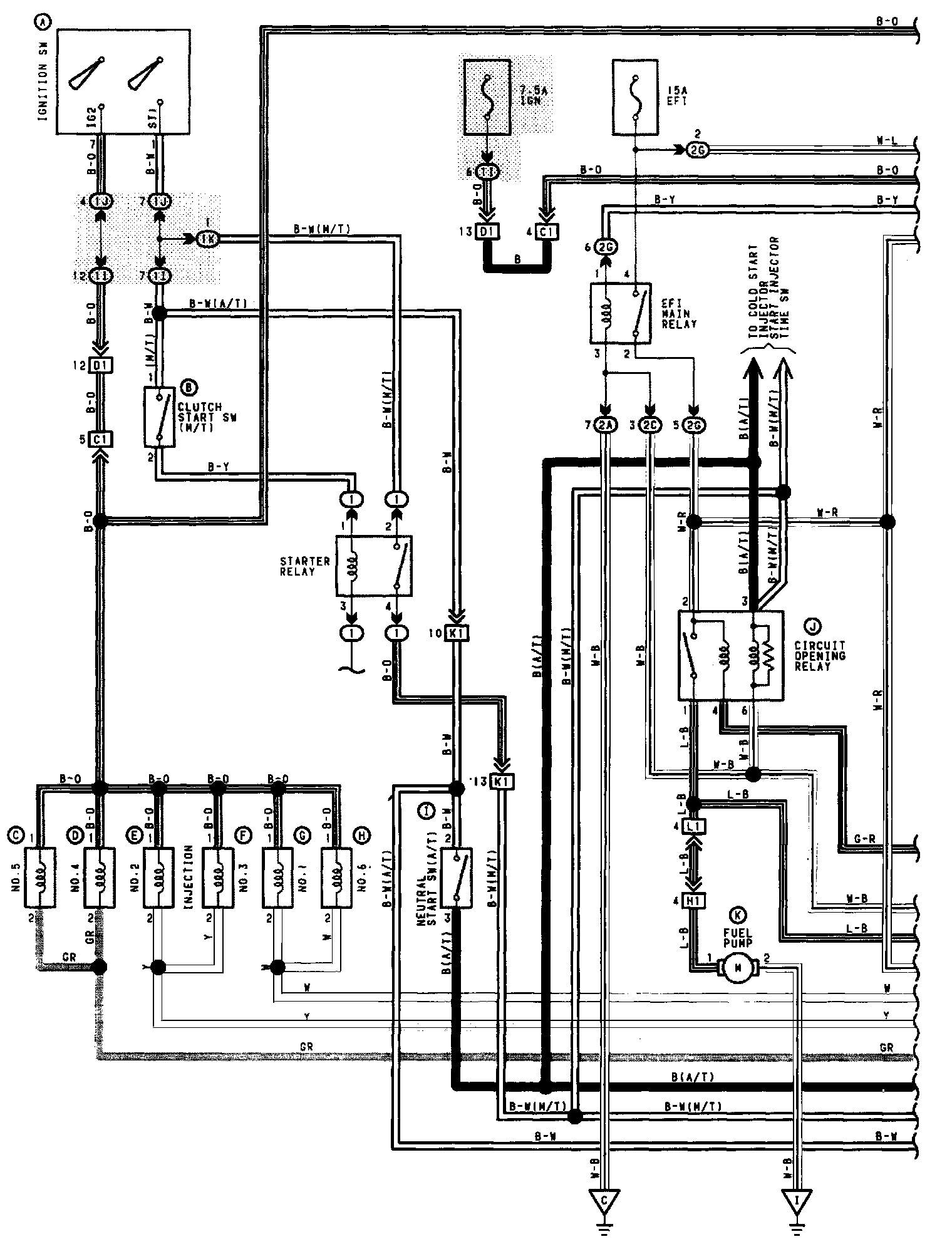

TCCS - Part 2 Of 4:

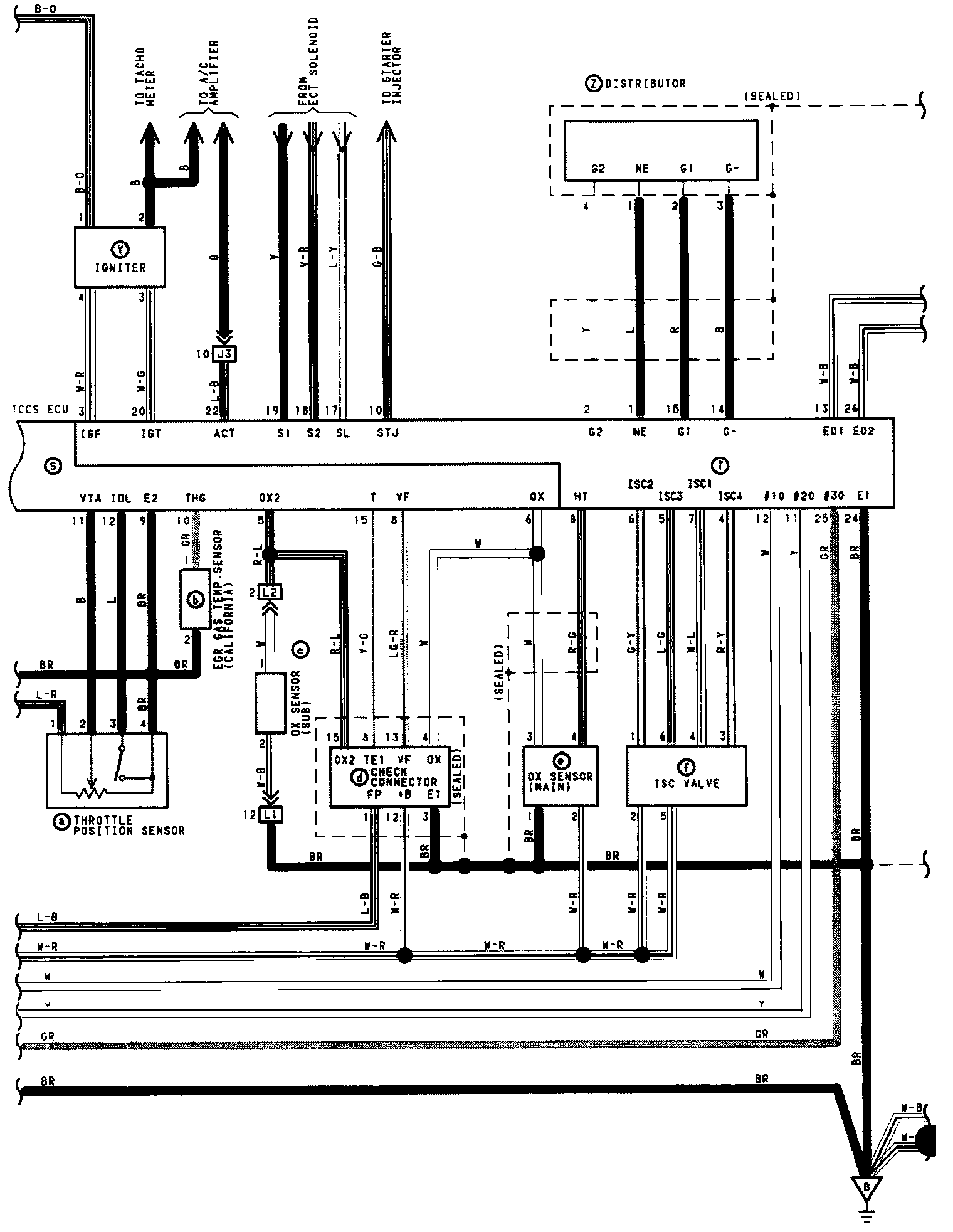

TCCS - Part 3 Of 4:
TCCS - Part 4 Of 4:
