A140L Electric Control System Schematic
A140L Electric Control System Schematic

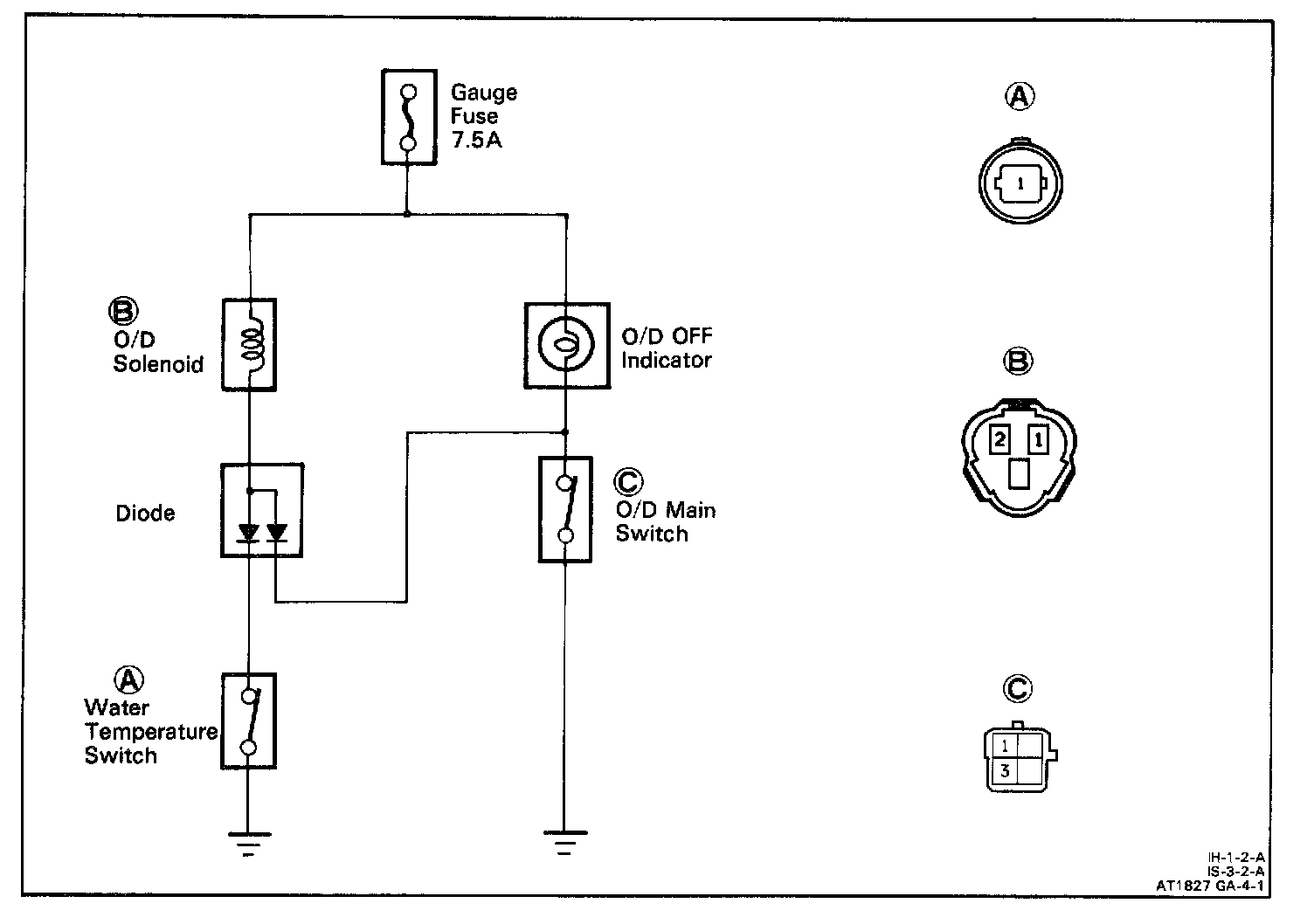

A140L Electric Control Circuit:
