Home
>>
Toyota
>>
1989
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
Fuse and Fusible Link Locations

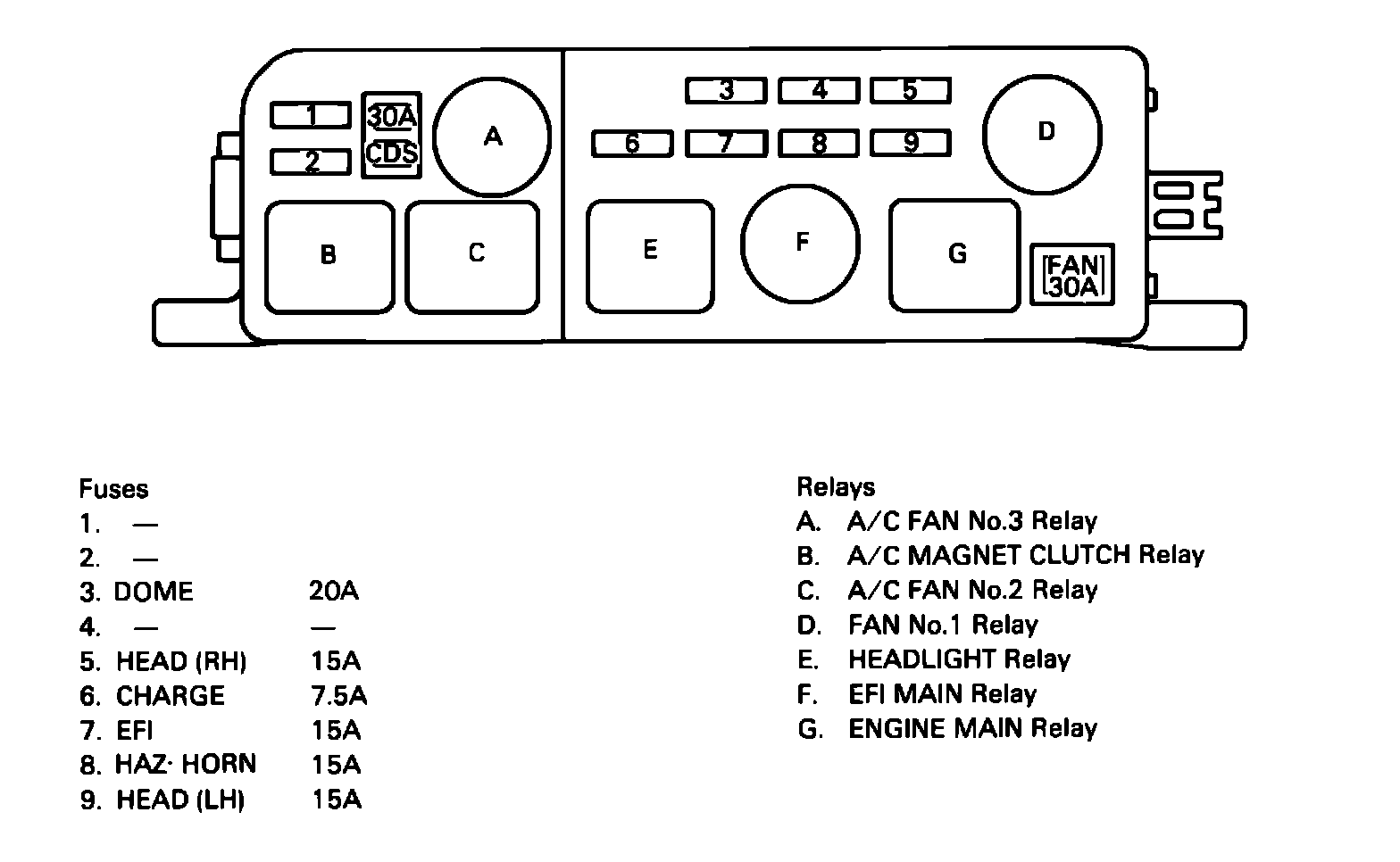

Fuse Panel (Passenger Compartment):
Fuse Panel (Engine Compartment):
