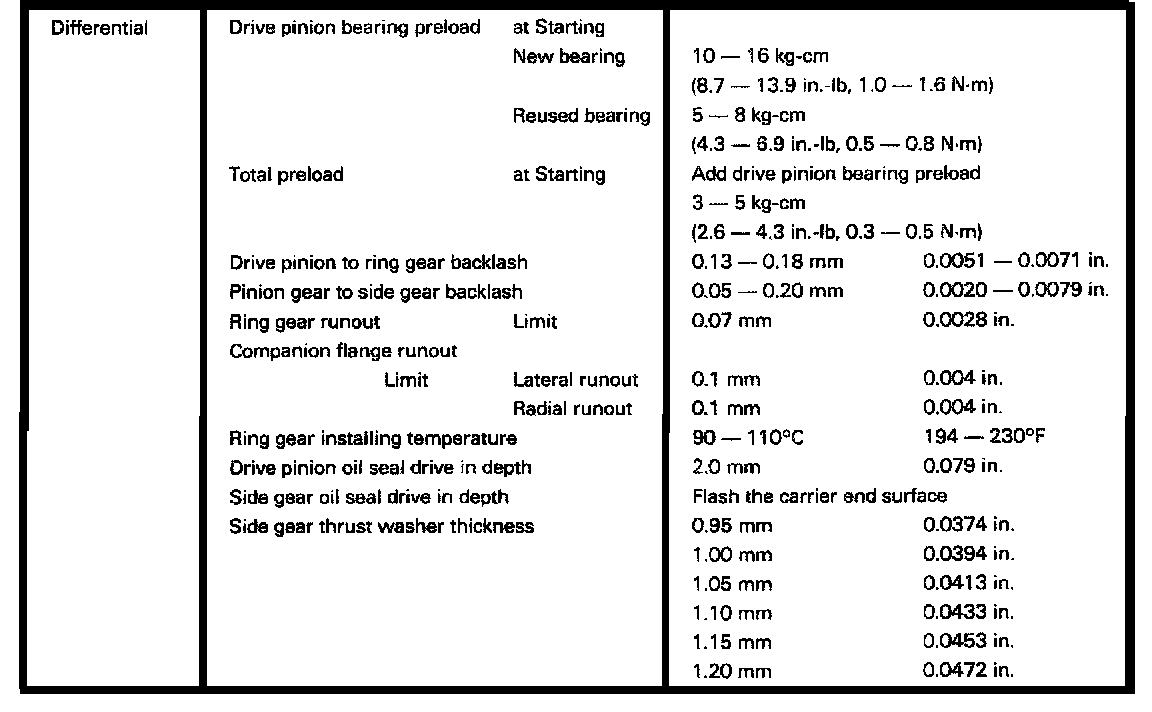

D/F Technical Data

Rear Differential, Pinion Preload/Clearances:





Rear Differential, Drive Pinion/Side Bearing Thickness:
