Toyota
>>
1989
>>
Camry Sedan 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Valve Body, A/T
>>
Valve Body (A140L)
Valve Body (A140L)

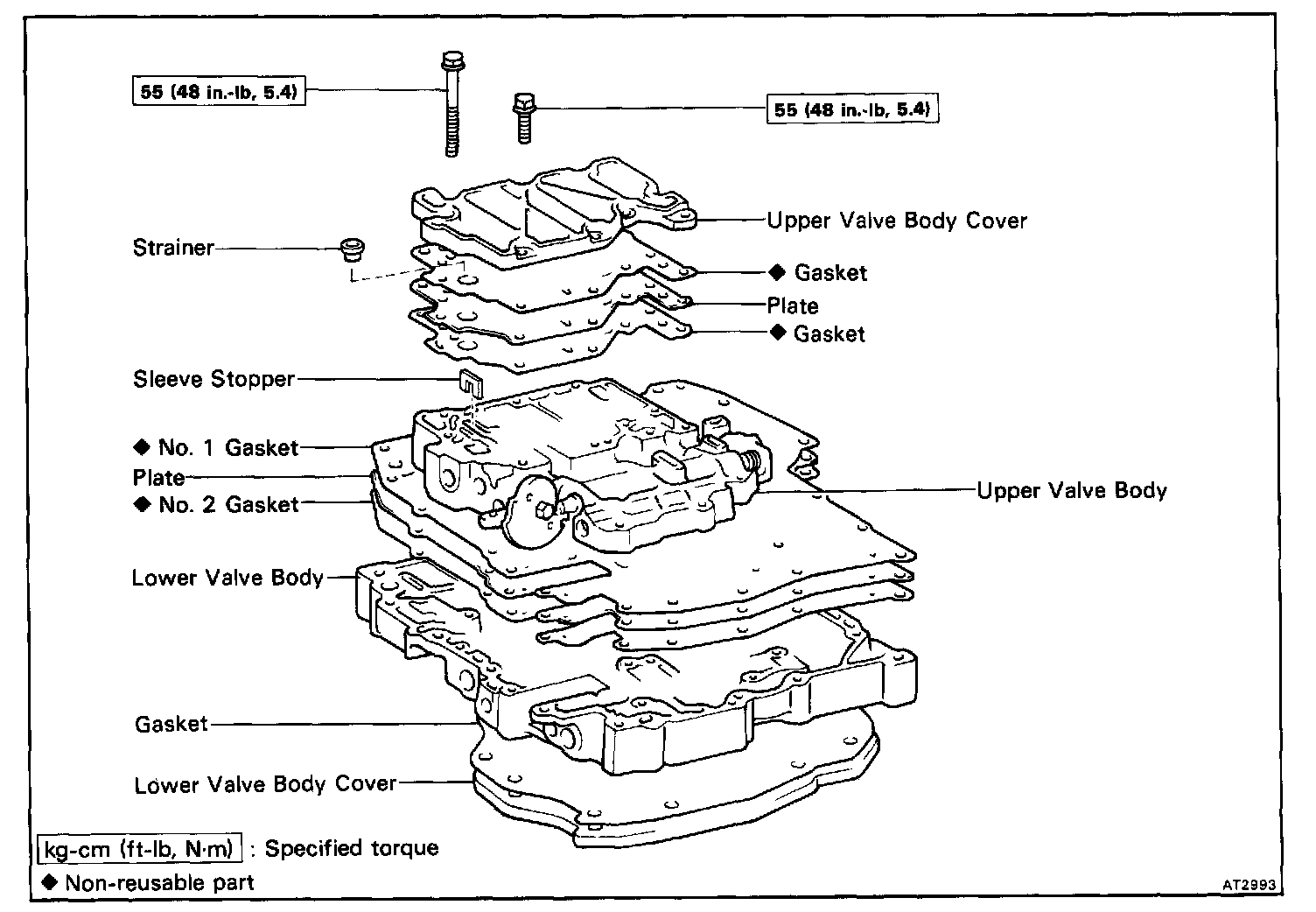

Valve Body Assembly (A140L):

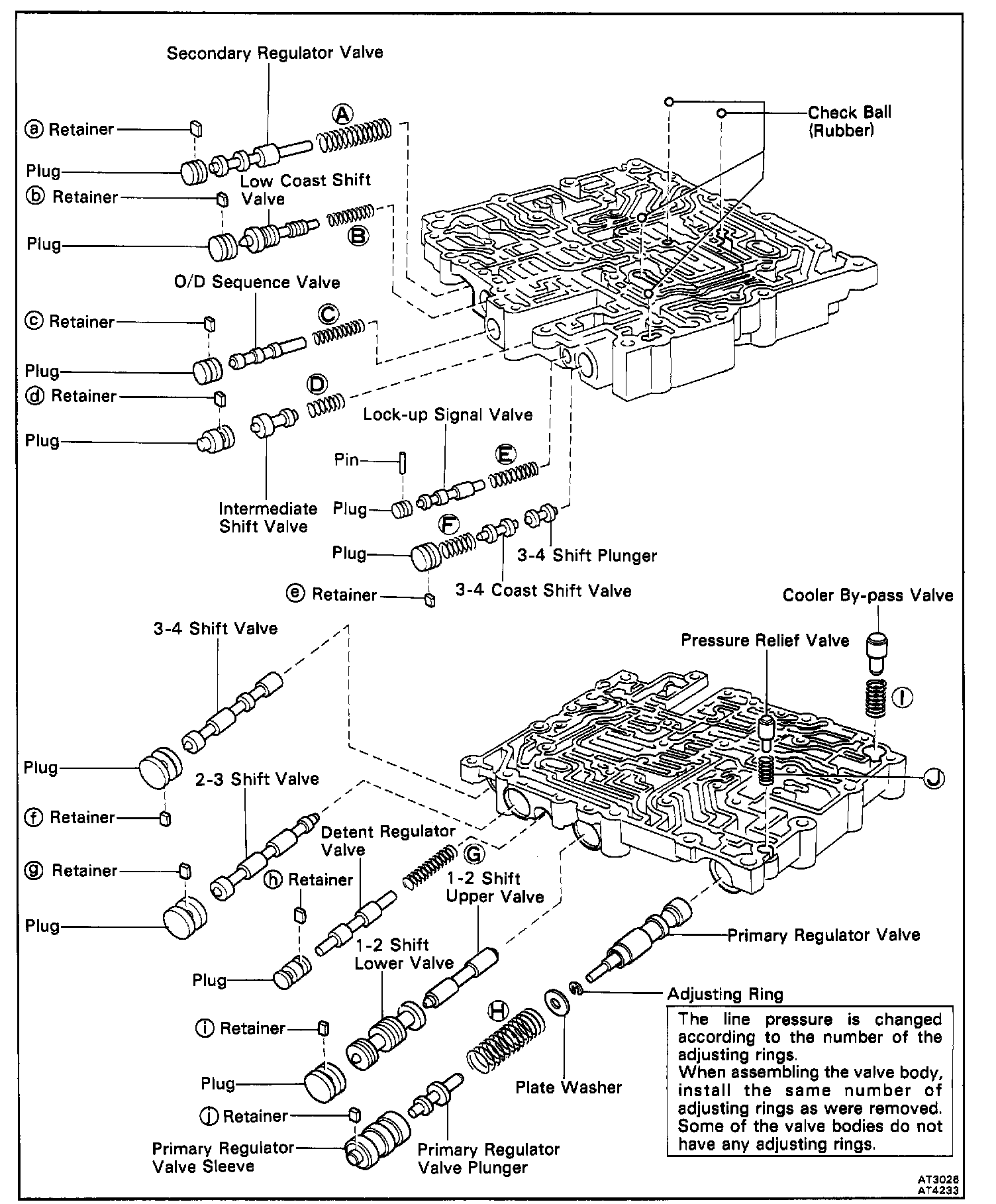

Upper Valve Body (A140L):

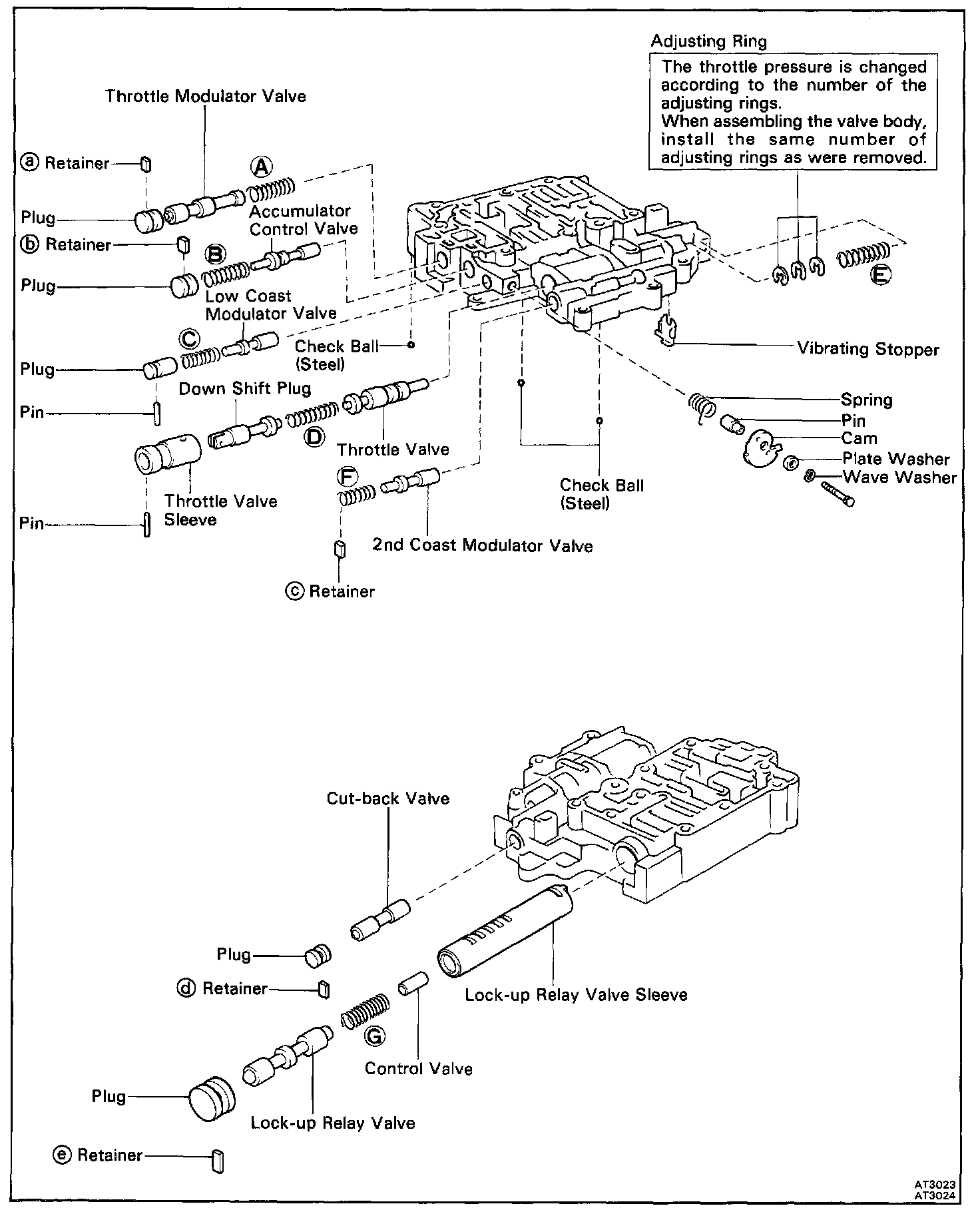

Lower Valve Body (A140L):
