Charging System
Charging System

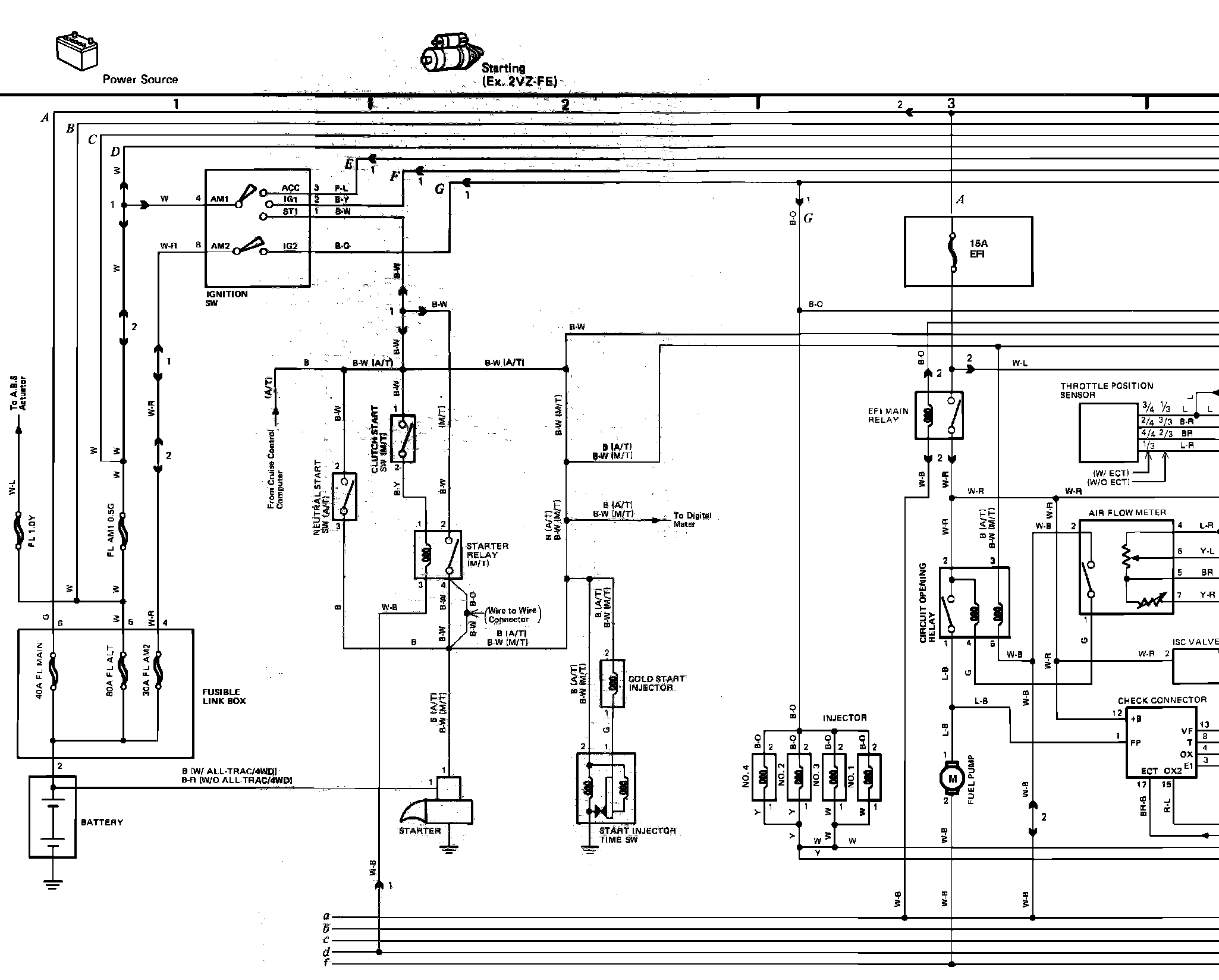

Px~ �~Battery, Starting, Computer Control, Ignition, Cooling Fan And Charging System Wiring Circuits:
