Transmission Control Cable

ADJUSTMENT OF TRANSMISSION CONTROL CABLE

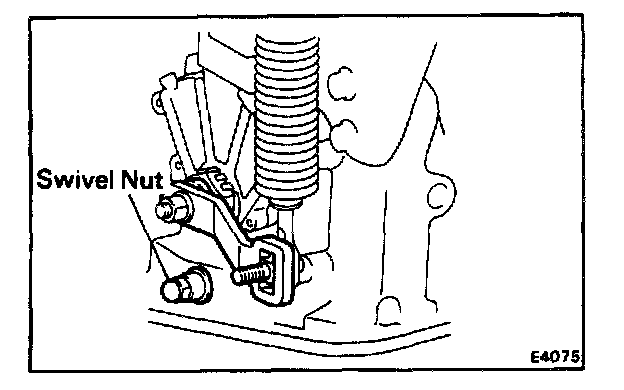

a. Loosen the swivel nut on the lever.
b. Push the manual lever fully toward the right side of the vehicle.
c. Return the lever two notches to the NEUTRAL position.
d. Set the shift lever in N range.
e. While holding the lever lightly toward the "R" range side, tighten the swivel nut.
