A/T - B2 Disc/Plate Modification To Reduce Shift Shock
87toyota10REFERENCE TRANSMISSION AND CLUTCH
NUMBER 009
DATE 03-11-88
MODEL MR2 (AW), COROLLA (AE)
TITLE A240 B2 DISC AND PLATE MODIFICATION TO REDUCE SHIFT SHOCK
To reduce the shift shock levels on MR2's and Corolla's equipped with A240 automatic transaxles the following changes have been made.
1. Friction material of B2 disc has been changed.

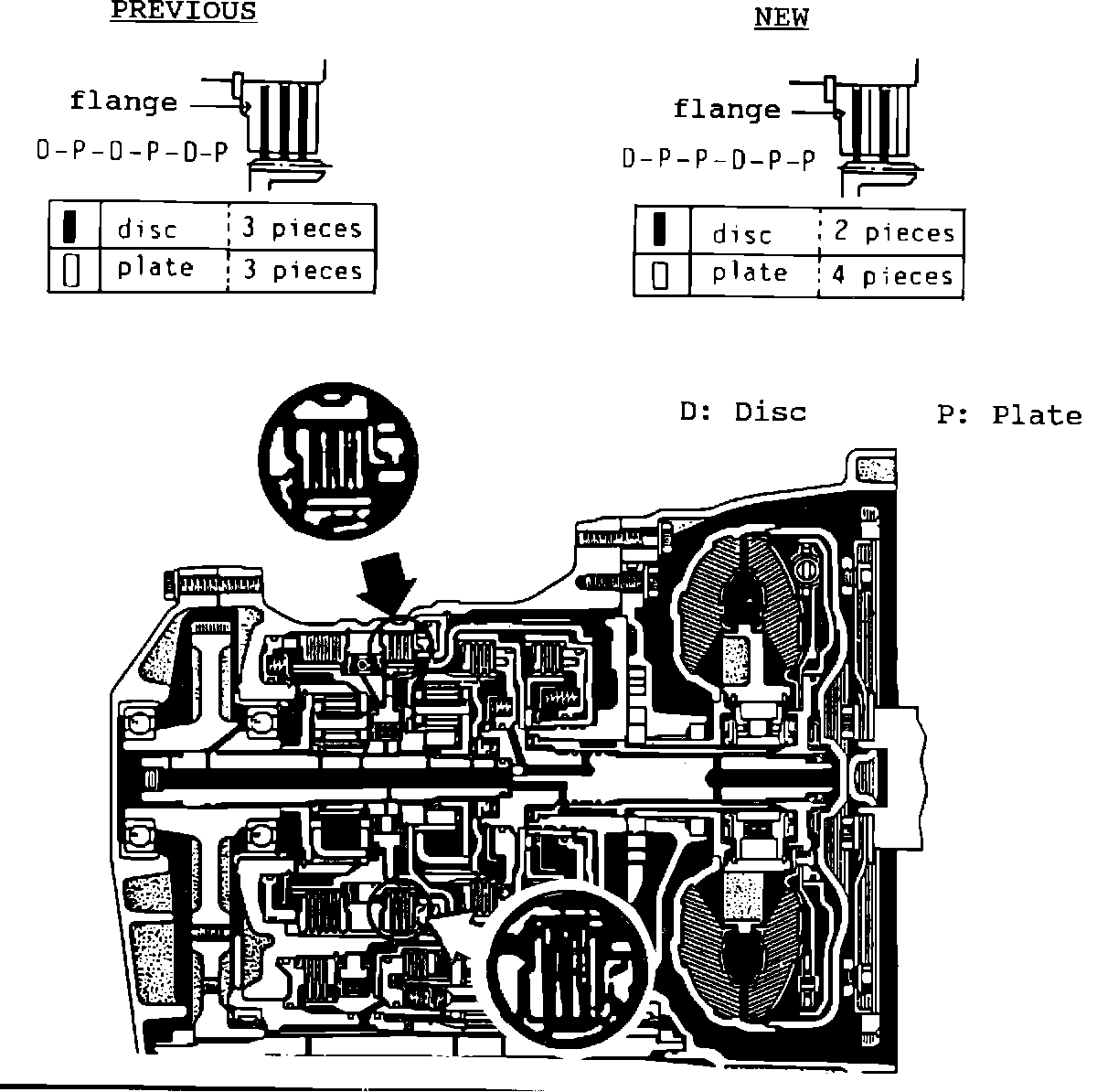

2. The number and order of B2 disc and plates has been changed. (See illustration)
3. B2 Accumulator Piston Spring has been changed
PRODUCTION EFFECTIVE:
FROM FRAME # FROM TRANS NO. FROM PRODUCTION DATE
JT2AW1#*#G0065249 6AZ-00972 January 1986
JT2AE8#E#G3333682 6AZ-00972 January 1986

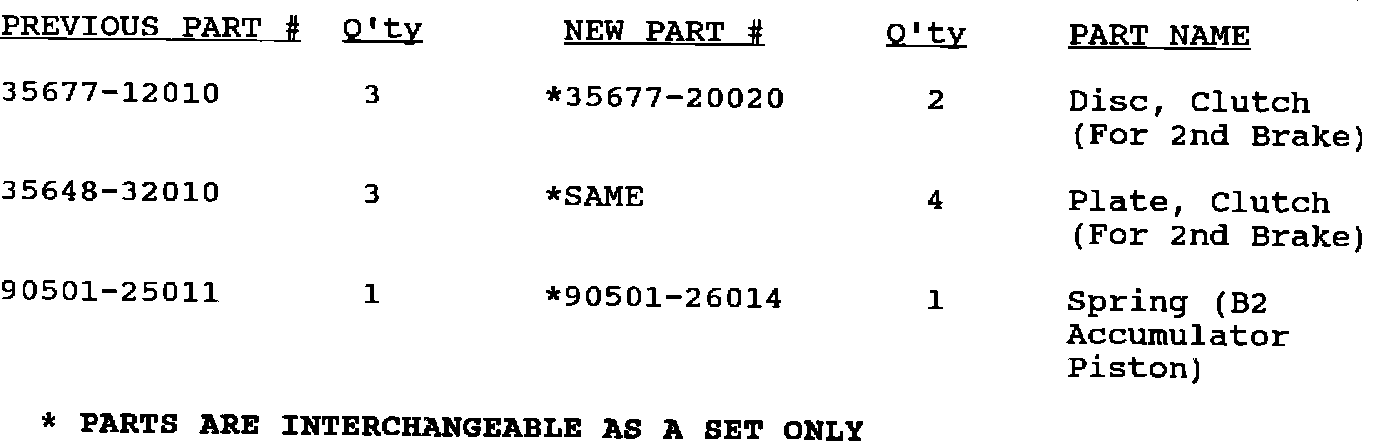

PART NUMBER INFORMATION:
