Engine - Oil Filter Design Change

87toyota9 REFERENCE ENGINE
NUMBER 012
DATE 1-08-88
MODEL AL, AE, EL

TITLE A SERIES & E SERIES ENGINE OIL FILTER DESIGN CHANGE

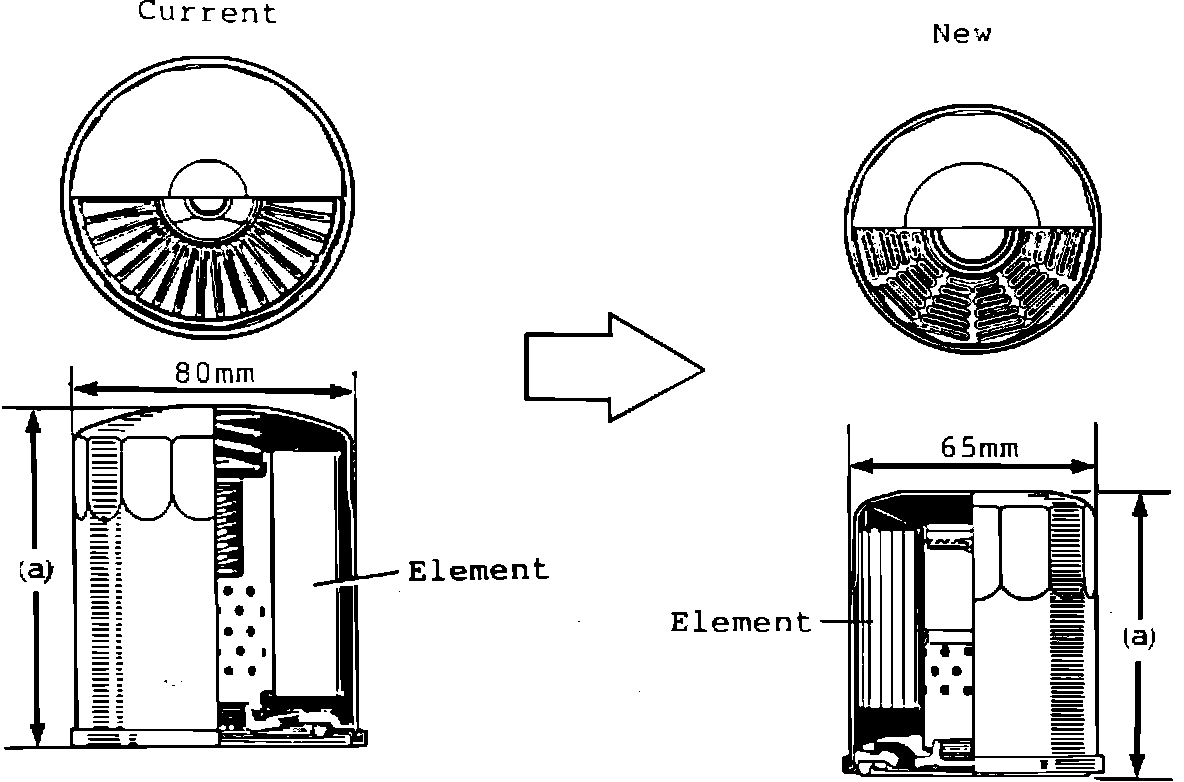

For part standardization, the oil filter on A series and E series engines has been changed to a newer full flow type shown below:



Dimension A

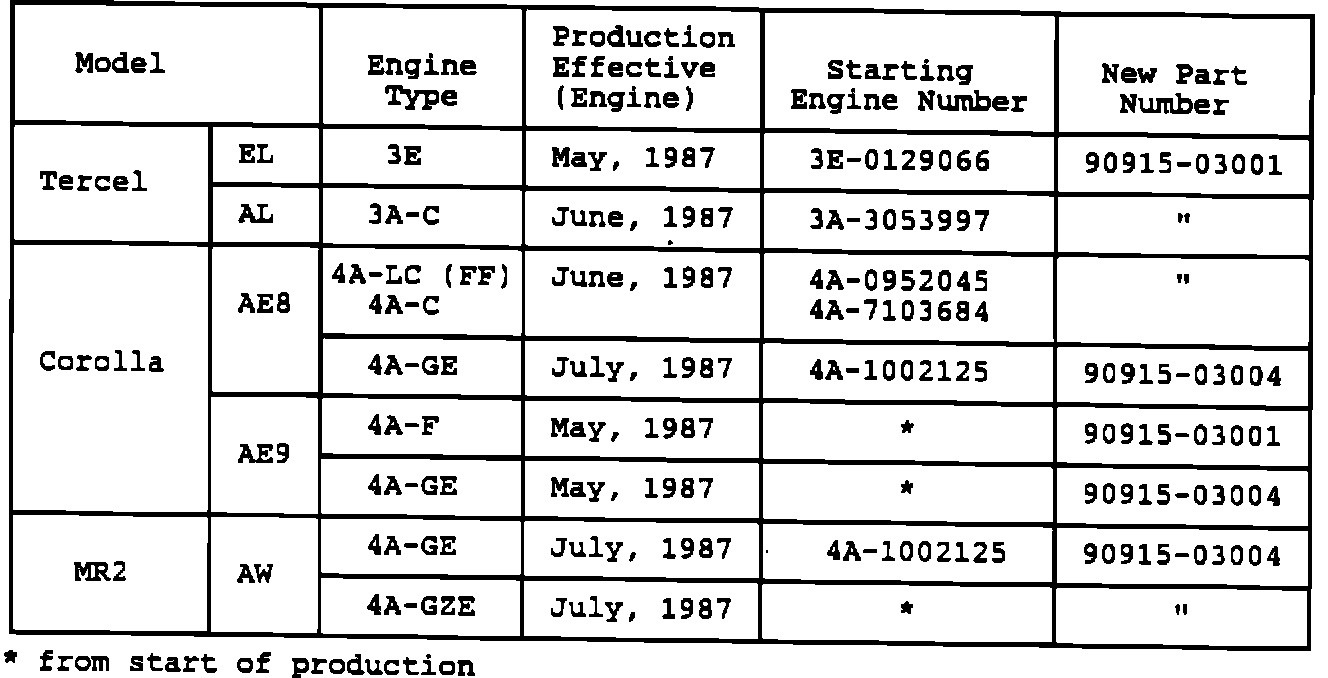

Production Effective
SST Information

Due to the dimensional changes involved in the oil filter change, a new SST is required to remove the new style oil filters.

Part No. Part Name

09228-06500 Oil Filter Wrench
