A/C - Receiver Drier Bolt Torque Reduced
87toyota9REFERENCE HEATING AND AIR CONDITIONING
NUMBER 005
DATE 1-08-88
MODEL AE, EL, SV
TITLE RECEIVER DRIER INLET/OUTLET TUBE BOLT TORQUE
The torque specification for the-inlet/outlet tube bolt for the receiver drier on Corolla, Tercel, and Camry in the 1988 Toyota Installation Manual CIAA-01 has been changed.

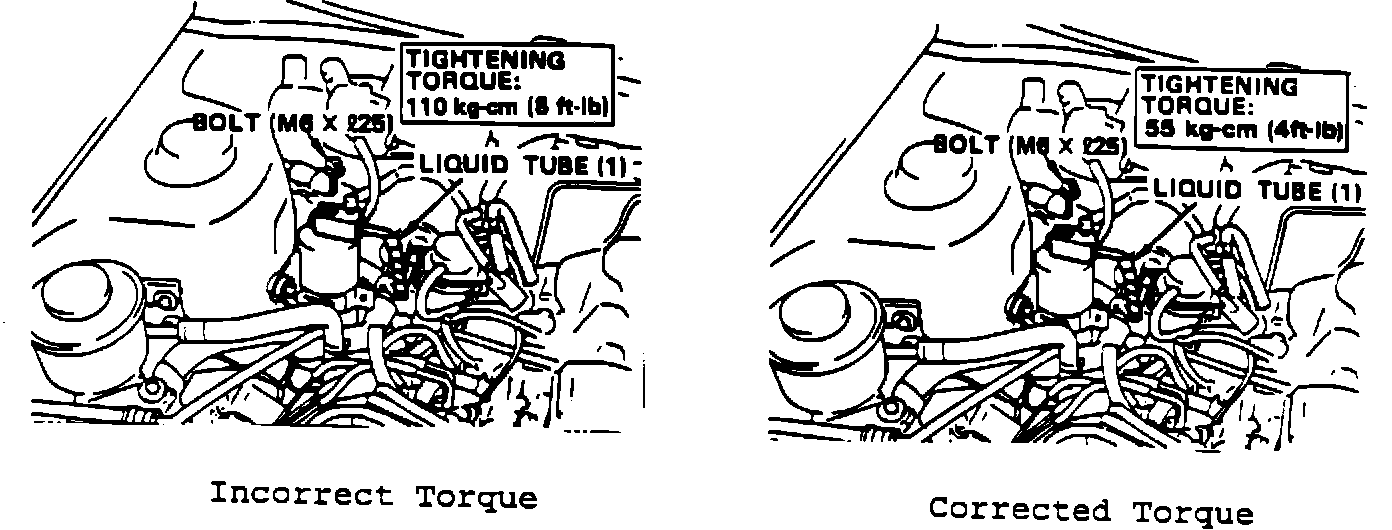

The Installation Manual (CIAA-01) indicates the torque value for the inlet/outlet tube bolt should be 110kg-cm (8 ft.lbs.). The torque value has been changed to 55kg-cm (4 ft.lbs.) as follows:
