Toyota
>>
1988
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>

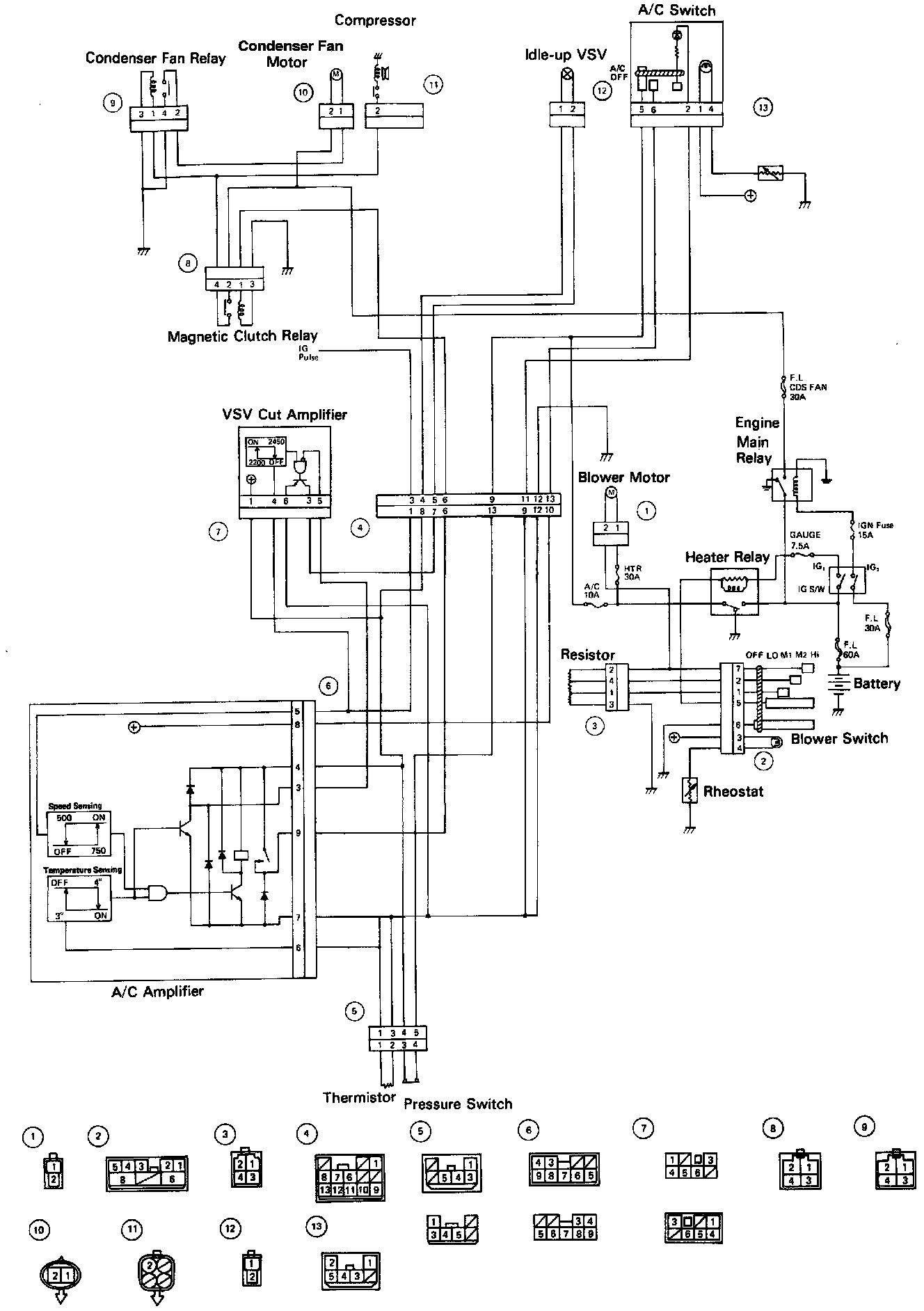

Connector Views
Connector Views
M/T, Without P/S:
