Home
>>
Toyota
>>
1988
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Sedan
Sedan

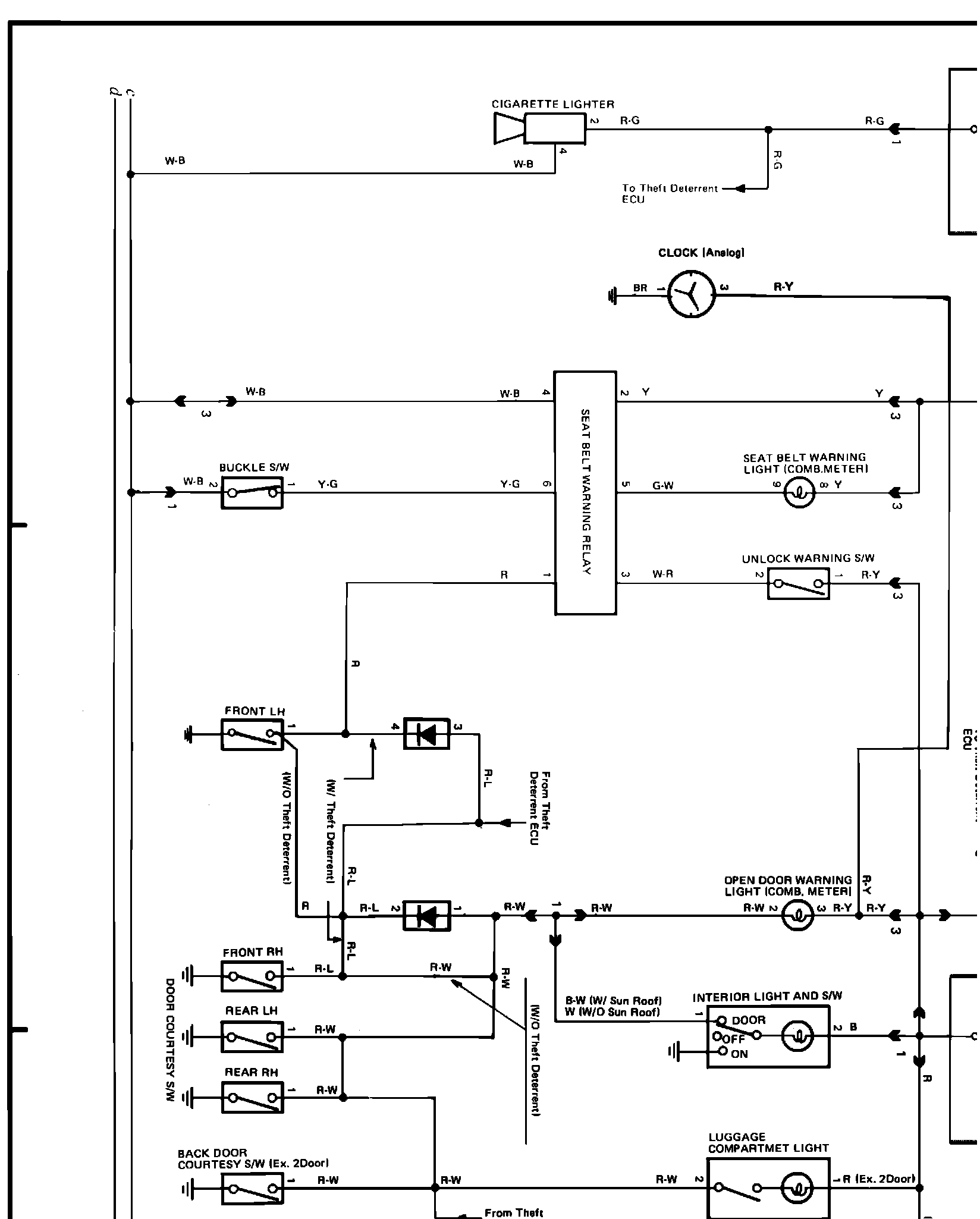

l��������Fig. 9dd Cigarette Lighter, Clock, Unlock and Seatbelt Warning, Interior Lights, Radio and Tape Player:
