Transmission Mode Switch: Testing and Inspection

INSPECT PATTERN SELECT SWITCH

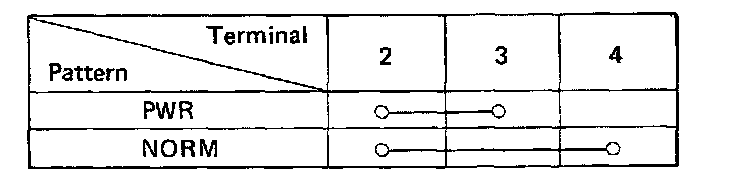

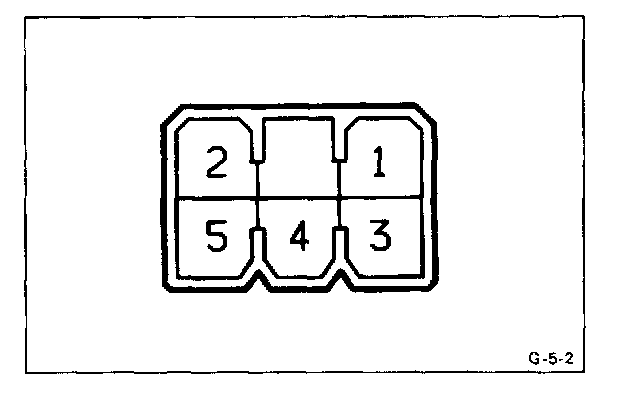

Inspect that there is continuity between 2 and each terminal.


NOTE: As there are diodes inside, be careful of the tester probe polarity.
